5.5.6 Brake adjustment tandem without ABS

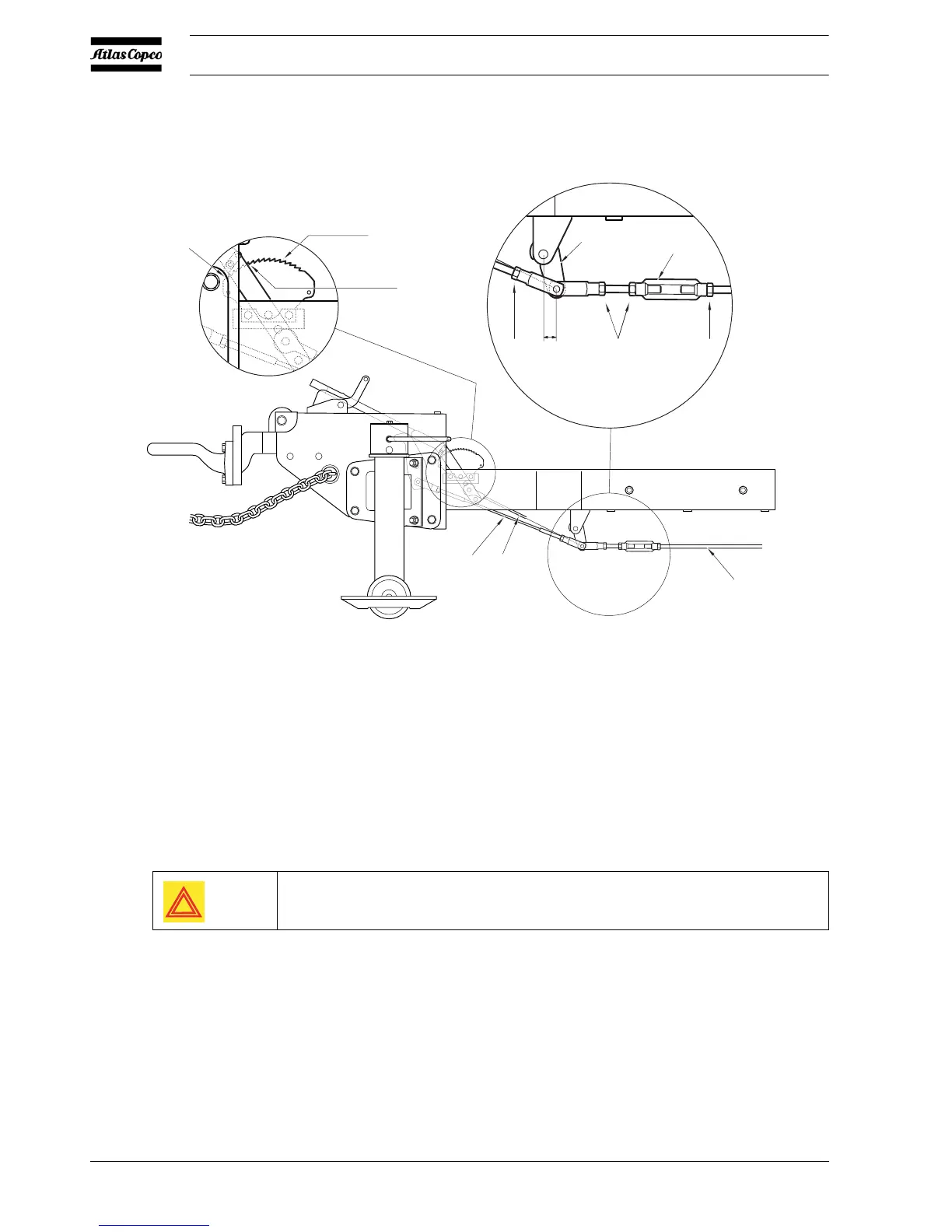

Adjusting the linkage
• The parking brake is adjusted by using the turnbuckle (6.2). Adjust till there is almost no play in
the linkage (max. 3 mm is allowed). Take care that of both thread ends at least two complete
turns of the thread are visible in the inner part of the turnbuckle.
• Apply the parking brake lever several times by hand with a force of 200 to 300 N and put it
back into the -not engaged- tooth “1”-position. Adjust the turnbuckle (6.2) as described above.
Testing the parking brake
• For testing the parking brake, apply the parking brake lever. The nominal brake power must be
reached between the 6
th
and 12
th
tooth of the toothed segment (“C”).
"C"
"1"
"6"
"12"
"Z"
(6.3)(6.3)(6.3) (22±2)
(9)
(6.2)
(8)
"Z"
"C"
(7)
(6)
Tighten all lock nuts (6.3) (Torque: M12=40 Nm, M10=24Nm).
