4.7 Oil level check
4.7.1 Check engine oil level
Also consult the Engine Operation Manual for the oil specifications, viscosity recommendations and
oil change intervals.
For intervals, see 4.5 Preventive maintenance schedule for the compressor.
Check engine oil level according to the instructions in the Engine Operation Manual and if necessary
top up with oil.
4.7.2 Check compressor oil level
Check compressor oil level
With the compressor standing horizontal, check the level of the compressor oil.

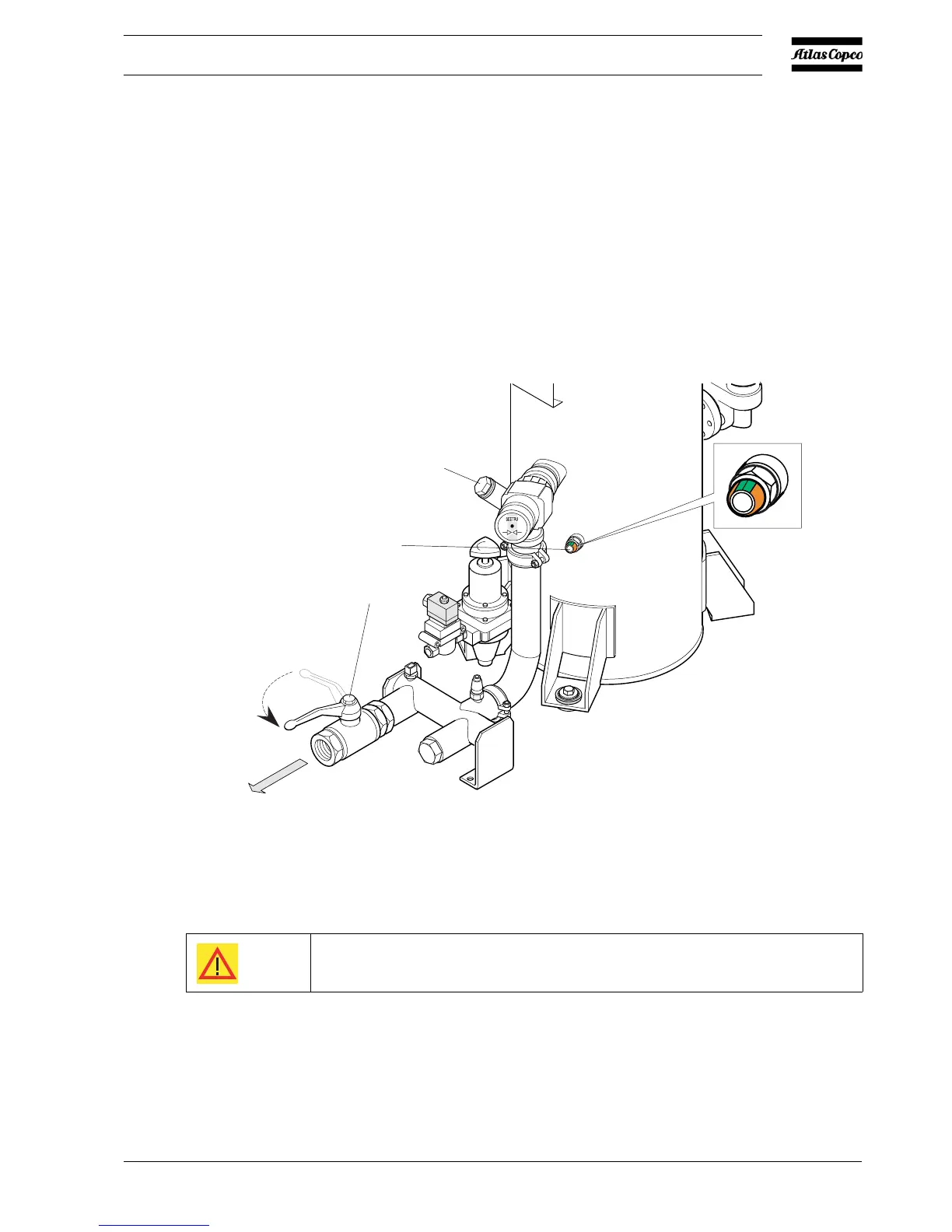

The pointer of the oil level gauge (1) must register in the upper extremity of the green range. Add oil
if necessary.
(1)
(2)
(3)
Before removing the oil filler plug (2), ensure that the pressure is released by
opening an air outlet valve (3).
