Instruction Manual
2954 2510 03 19
• Safety devices
A thermal shut-down sensor protects the compressor against overheating. The air receiver is
provided with a safety valve.
The engine is equipped with low oil pressure and high coolant temperature shut-down sensors.
The electric system is equipped with a 24V main switch.
• Frame and axles
The compressor/engine unit is supported by rubber buffers in a spillage-free frame.
The standard compressor has a towbar with parking brakes.
For available options see chapter 7 Available options.
• Bodywork
The bodywork has openings for the intake and outlet of cooling air and hinged doors for
maintenance and service operations. The bodywork is internally lined with sound-absorbing
material.
• Lifting beam
A lifting beam is accessible when a small door at the top is opened.
• Control panel
The control panel grouping the air pressure gauge, control switch etc., is placed at the left hand/
rear end corner.
• Data plate
The compressor is furnished with a data plate showing the product code, the unit serial number
and the working pressure (see chapter 9 Dataplate).

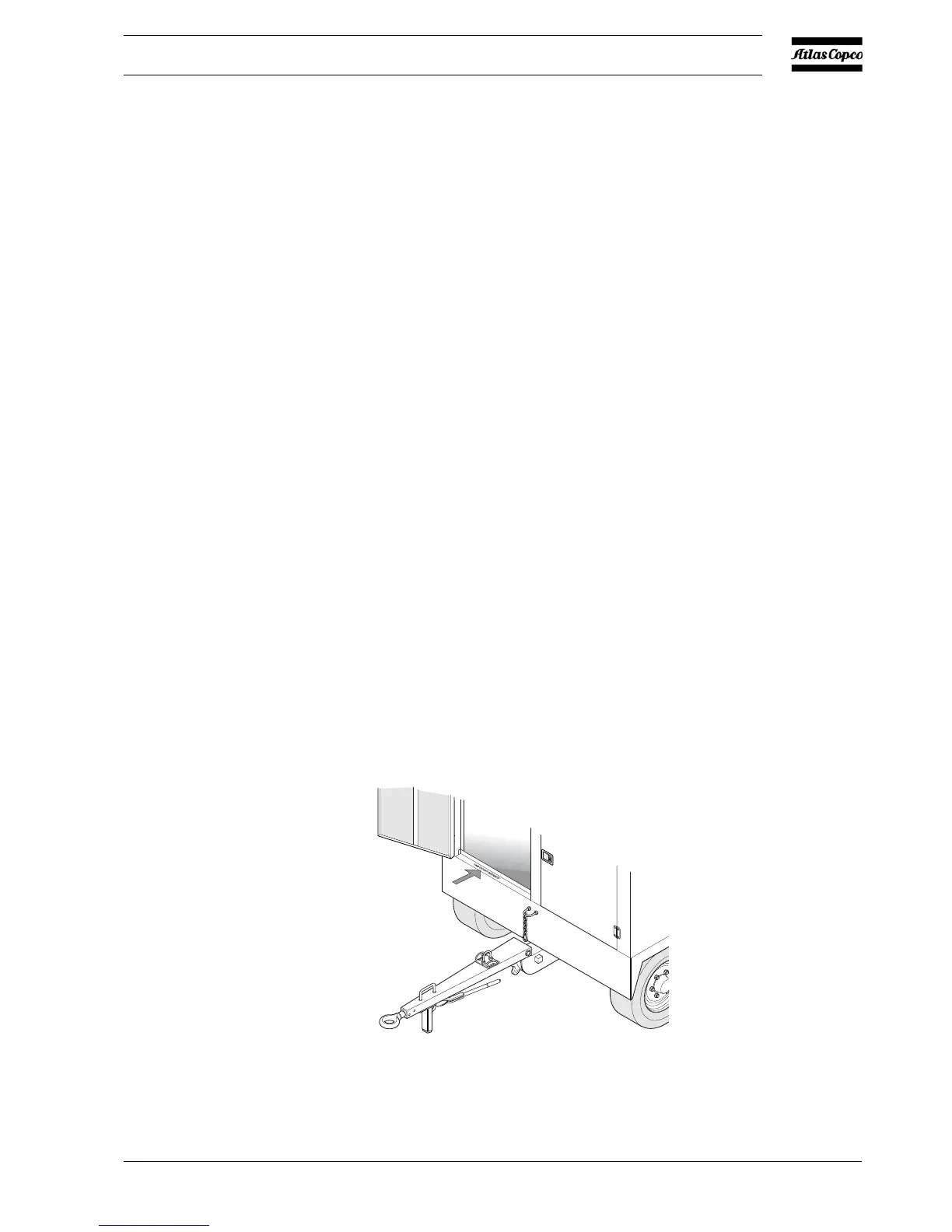

• Serial number
The serial number is stamped in at the front of the compressor on the upper edge of the frame
behind the right door. It is also mentioned on the data plate and inside the control box.
