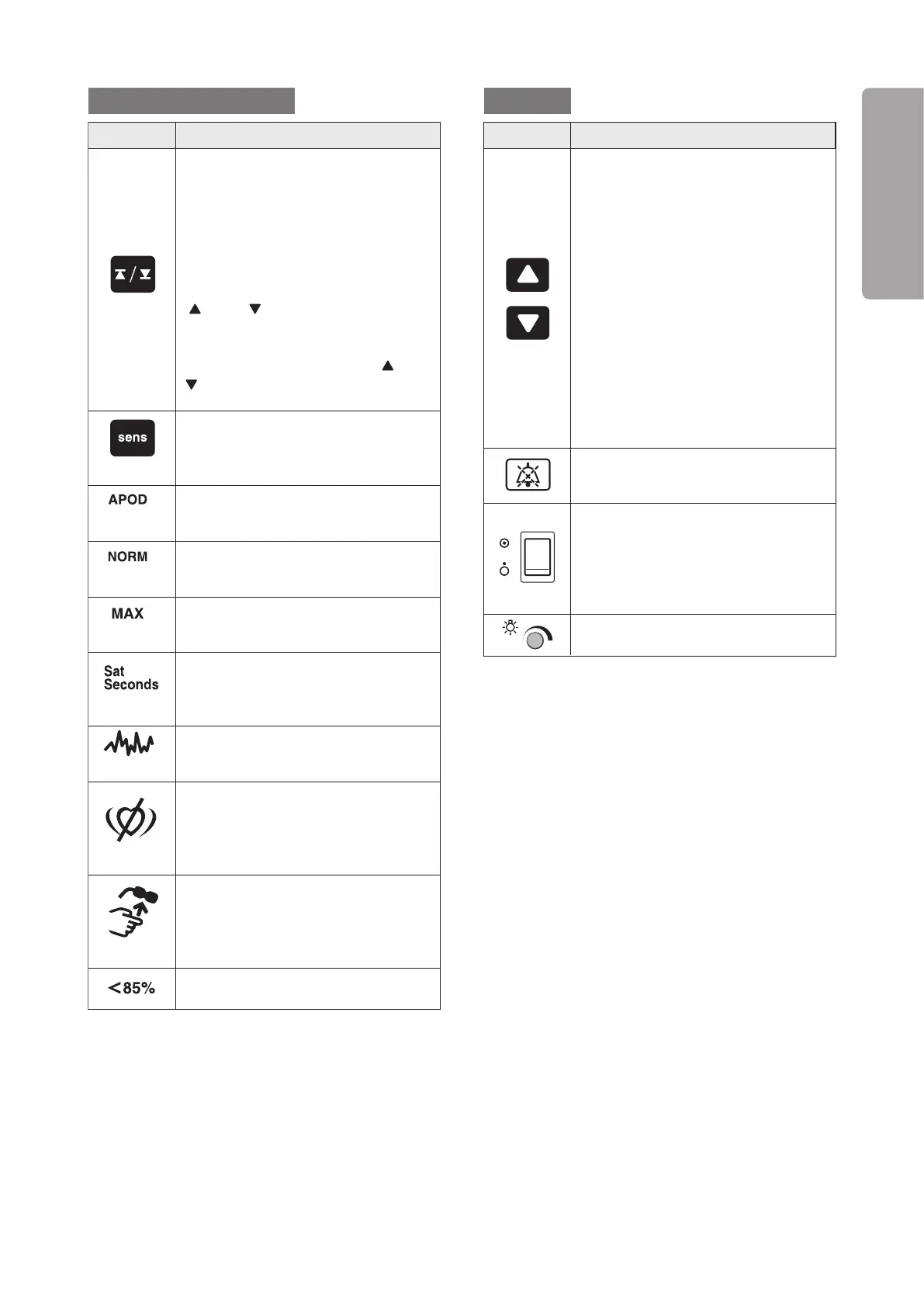

Setting up/down switch
Press this switch to set the skin
temperature, the heater output, and
the upper/lower alarm limits to a
desired level. To set the skin
temperature, press the servo control
mode switch and then this switch. To
set the heater output, press the
manual control mode switch and then
this switch. To set an upper or lower
alarm limit, press the alarm limit
selector switch to select the SpO
2
upper limit alarm, the SpO2 lower limit
alarm, the pulse rate upper limit alarm
or the pulse rate lower limit alarm,
and then press this switch.
Alarm silence/reset switch
Press this switch to silence or reset an
audible alarm.
Power switch
Press this switch to turn the power on
or off. You can turn on the lighting
lamp and adjust the height of the HL
stand even when the power switch is
off.
Light control switch
Controls the intensity of lighting.
Others
Function
Symbol
Alarm limit selector switch
Press this switch to select one of the
four alarms: the SpO2 upper limit
alarm, the SpO
2 lower limit alarm, the
pulse rate upper limit alarm and the
pulse rate lower limit alarm. When
either the SpO
2 upper limit alarm or
the SpO2 lower limit alarm is selected,
" " or " " on the left of the SpO2
display flashes. When either the pulse
rate upper limit alarm or the pulse rate
lower limit alarm is selected, " " or
" " on the left of the pulse rate display
flashes.
Sensitivity selector switch
Press this switch to set the sensitivity
to a low ("APOD"), normal
("NORM"), or high ("MAX") level.
(APOD) sensitivity indicator
Comes on when the current sensitivity
is "APOD."
(NORM) sensitivity indicator
Comes on when the current sensitivity
is "NORM."
(MAX) sensitivity indicator
Comes on when the current sensitivity
is "MAX."
SatSeconds indicator
Comes on when the SatSeconds limit
is set. Flashes when counting up or
counting down.
Interference alarm indicator
Comes on or flashes when
interference is detected.
Pulse search alarm indicator
Comes on when no pulse is detected.
Flashes if it becomes impossible to
detect a pulse during SpO
2
measurement.
Sensor off alarm indicator
Flashes if the sensor attached to the
patient has come off. Also flashes if
the patient cable or the sensor was
come off the unit.
Comes on when the SpO2 lower alarm
limit is set to lower than 85%.
to p.32
Function
Symbol
Pulse oximeter
(Masimo)
(Masimo)
(Masimo)
(Masimo)
(Nellcor)
(Nellcor)
(Nellcor)
(Nellcor)
