Atomos Shogun Studio 2 User Manual

Attaching Rack Ears and Feet
SHOGUN STUDIO 2 can be configured for both rack mount and desktop use. Included in
the box are 4 x small feet, 2 x large feet and rack ears along with all the mounting screws
for these accessories.

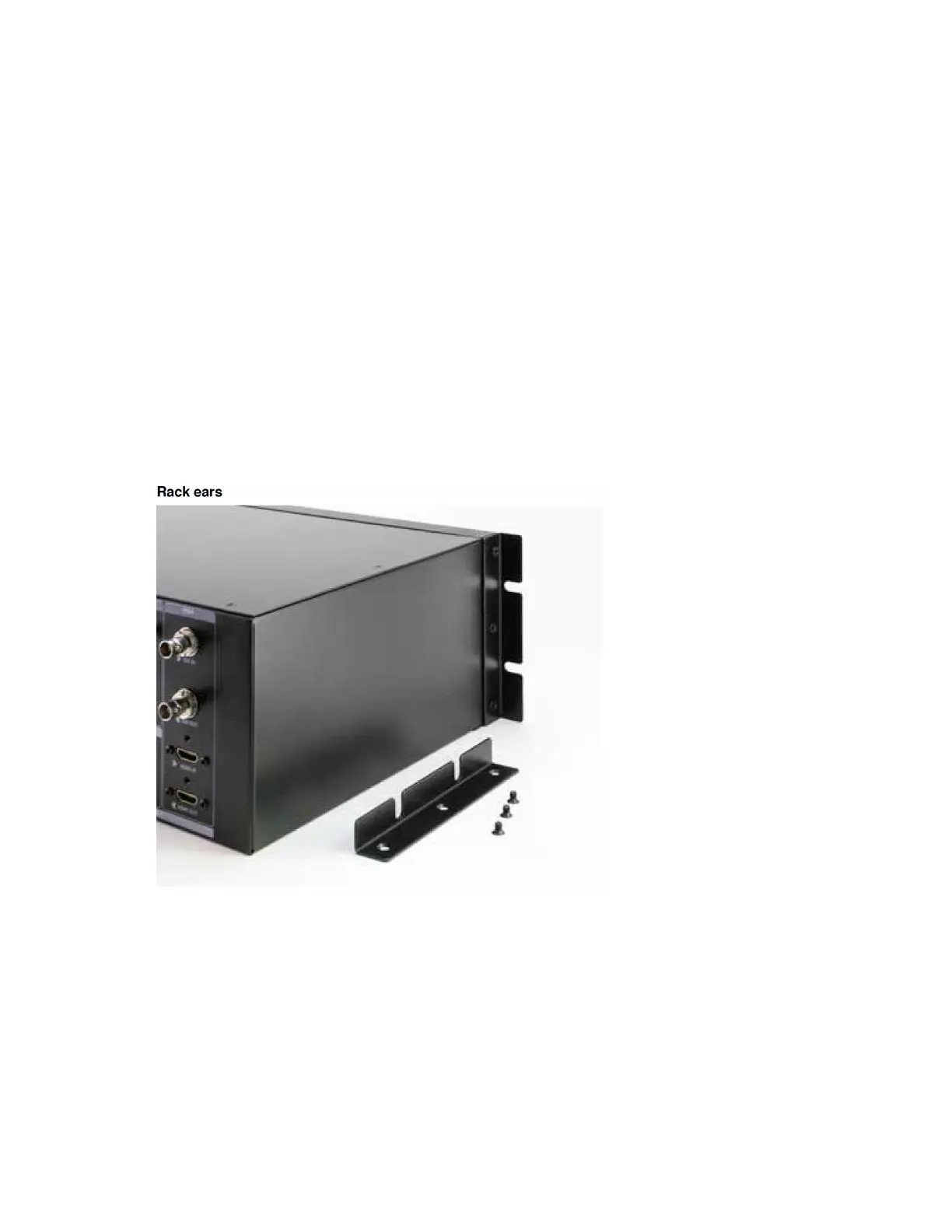

Rack Ears
Remove the metal rack ears and screws from the protective packaging. Line up the holes
and screw in the supplied screws with the appropriate Philips head screwdriver. Take care
to screw each screw in 3/4 of the way in and then gradually tighten all screws so you can
ensure correct alignment.
Feet
Depending on the intended use of the SHOGUN STUDIO 2 select the appropriate rubber
feet. Whilst the power is disconnected turn the unit over and locate the four screw holes

Atomos Shogun Studio 2 Specifications

General

Brand	Atomos
Model	Shogun Studio 2
Category	Measuring Instruments
Language	English
