Connecting and powering up
We recommend that you connect SHOGUN STUDIO 2 directly to a stable mains con-
nection or via a power distribution unit / strip to an uninterruptible power supply in your
rack. The SHOGUN STUDIO 2 has 2 x AC inputs and we advise using both where possible.
These inputs provide you with a a Dual Redundant AC Power Supply.
Connecting Power and about PSUs:

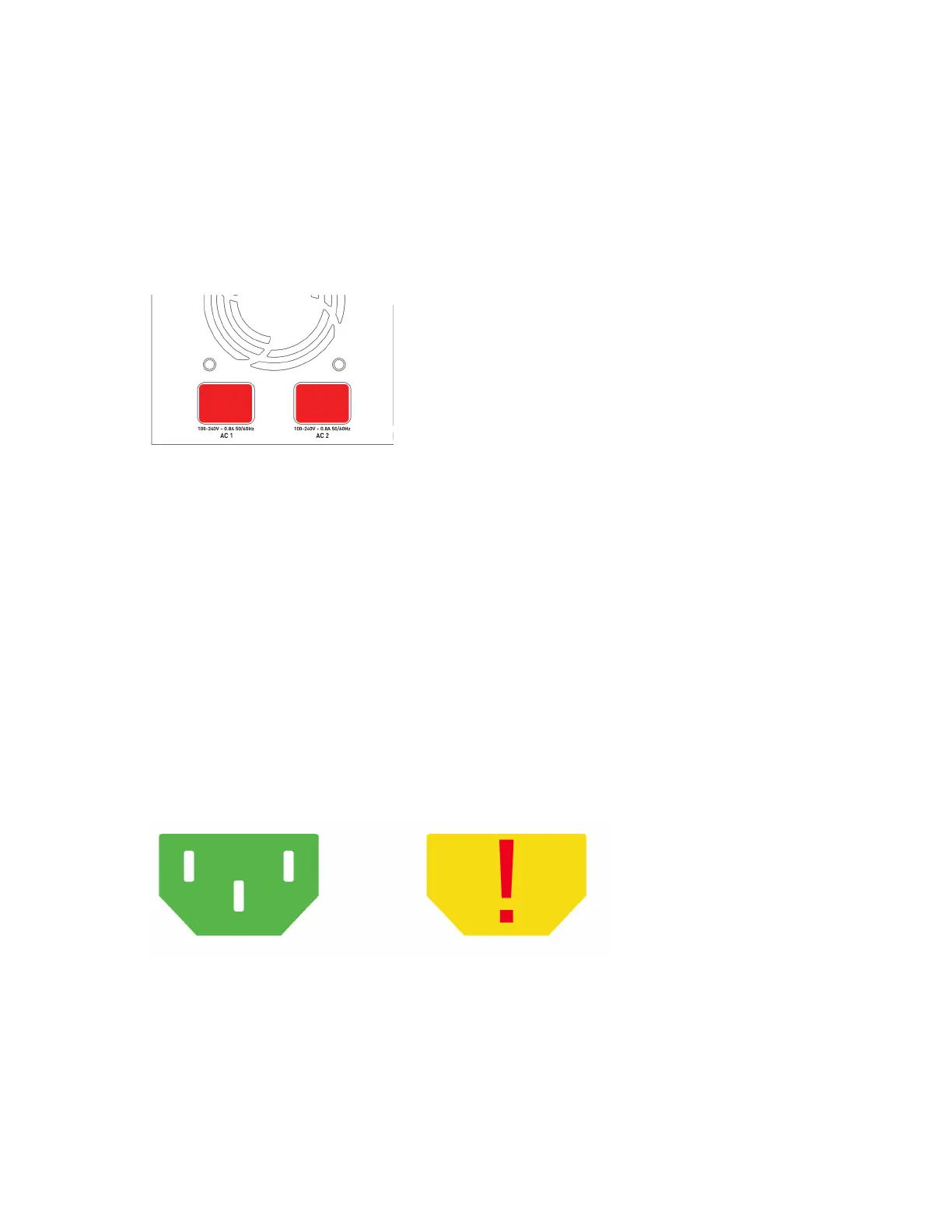

The rear bottom left hand side of the unit are located AC1 and AC2 inputs with IEC C14
sockets. Connect the provided power cables to the sockets and then connect to mains
power. The dual power supplies internally balance the power draw across both units and
additionally allows for backup power if one of the power supplies fail.
If a PSU fails or a single power supply is connected, a warning screen will be displayed. To
continue using the unit, activate single power supply mode by clicking the blue X in the
top corner of the message box. The power input icons in the top left corner of each unit
will display a green and yellow icon.
With both power supplies connected, press the Power button in for 3 seconds and both
units will power up and the LED light on both channels will illuminate red.
