Atomos Shogun Studio 2 User Manual

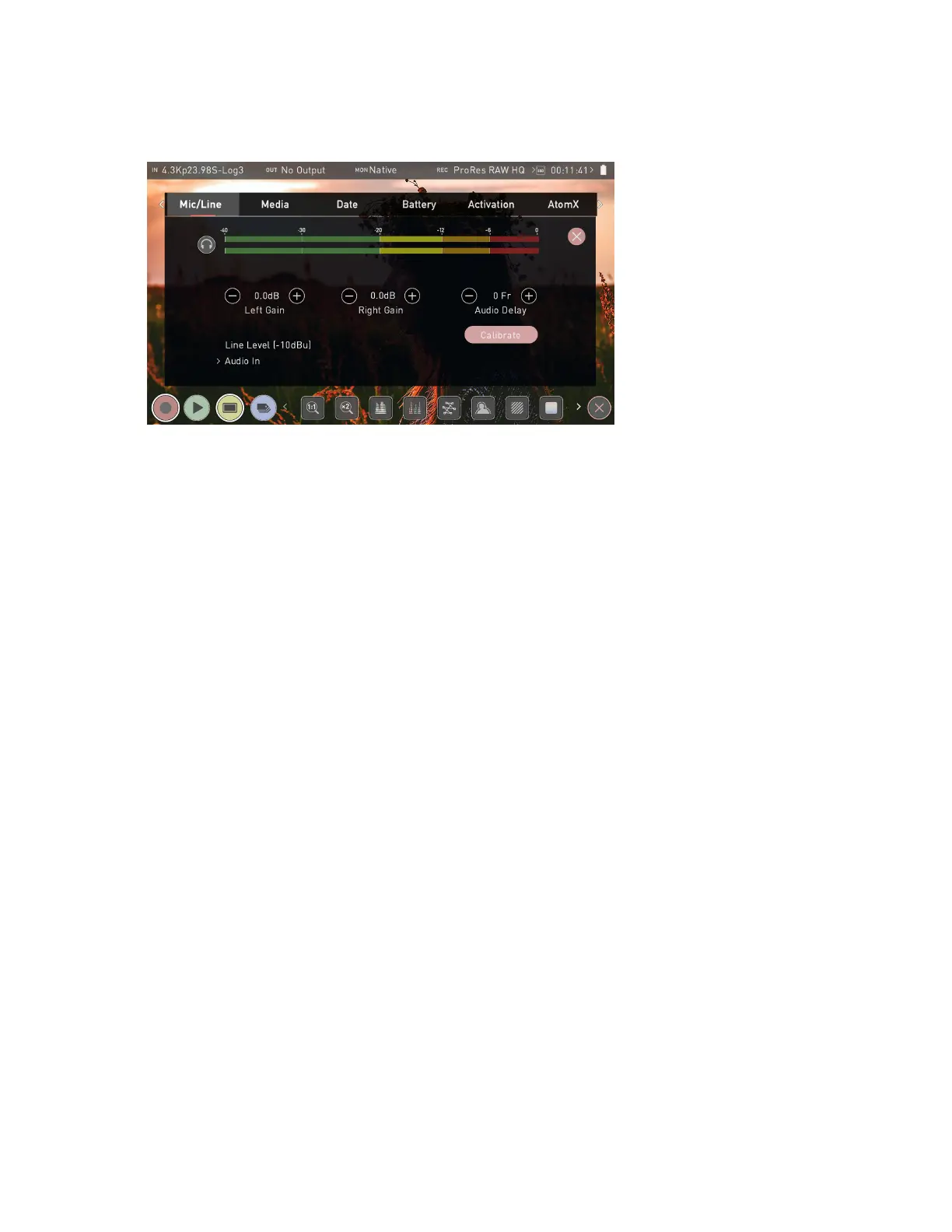

Analog Menu
This menu page provides settings for analog audio that is connected
Analog Audio Meters
These meters display the audio levels for the left and right channels of analog audio.
Headphone icon
Tap the headphone icon to monitor the analog audio from the 3.5 mm headphone output
on your SHOGUN STUDIO 2. For more information on meters and monitoring, refer to
"Audio Menu" on page 79
Left Gain / Right Gain
- / +:
Use these icons to adjust the gain applied to the left and right analog audio channels.
Once you have selected the input line level that matches your input at Audio In, analog
gain can then be tuned by incremental increase or decrease of up to +/- 20dB individually
for both left and right channels.
Audio Delay
- / +:
