Mounting disks in the Master Caddy III
If you choose to use your own disks instead of a pre-built AtomX SSDmini, then follow this
procedure to install it in the provided Master Caddy III. A Master Caddy III and screws is
included in the box with your SHOGUN STUDIO 2. If you have used Master Caddy
II before with other ATOMOS products, you will notice that Master Caddy III has a slim-
mer, lighter weight design to ensure compatibility with the CONNECT range of hardware
products. For information on drives that are compatible with SHOGUN STUDIO 2, refer to
the compatible drive page at https://www.atomos.com/compatible-drives
How to mount a disk into Master Caddy III

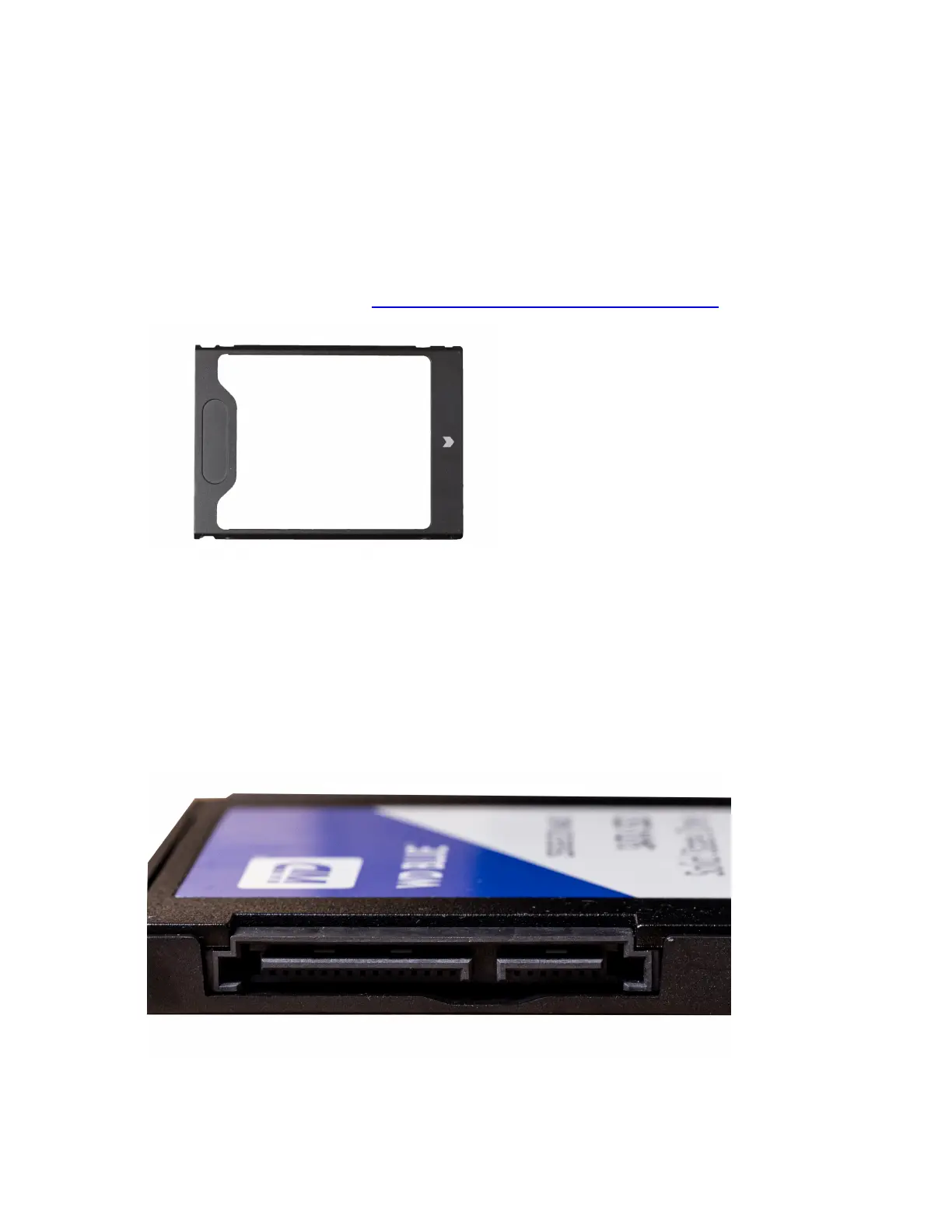

When inserting the disk into the Master Caddy III, ensure that the SATA connectors of the
drive line up with the gap in the plastic shell. If they do not line up with this gap, turn the
drive over.
Correct alignment
