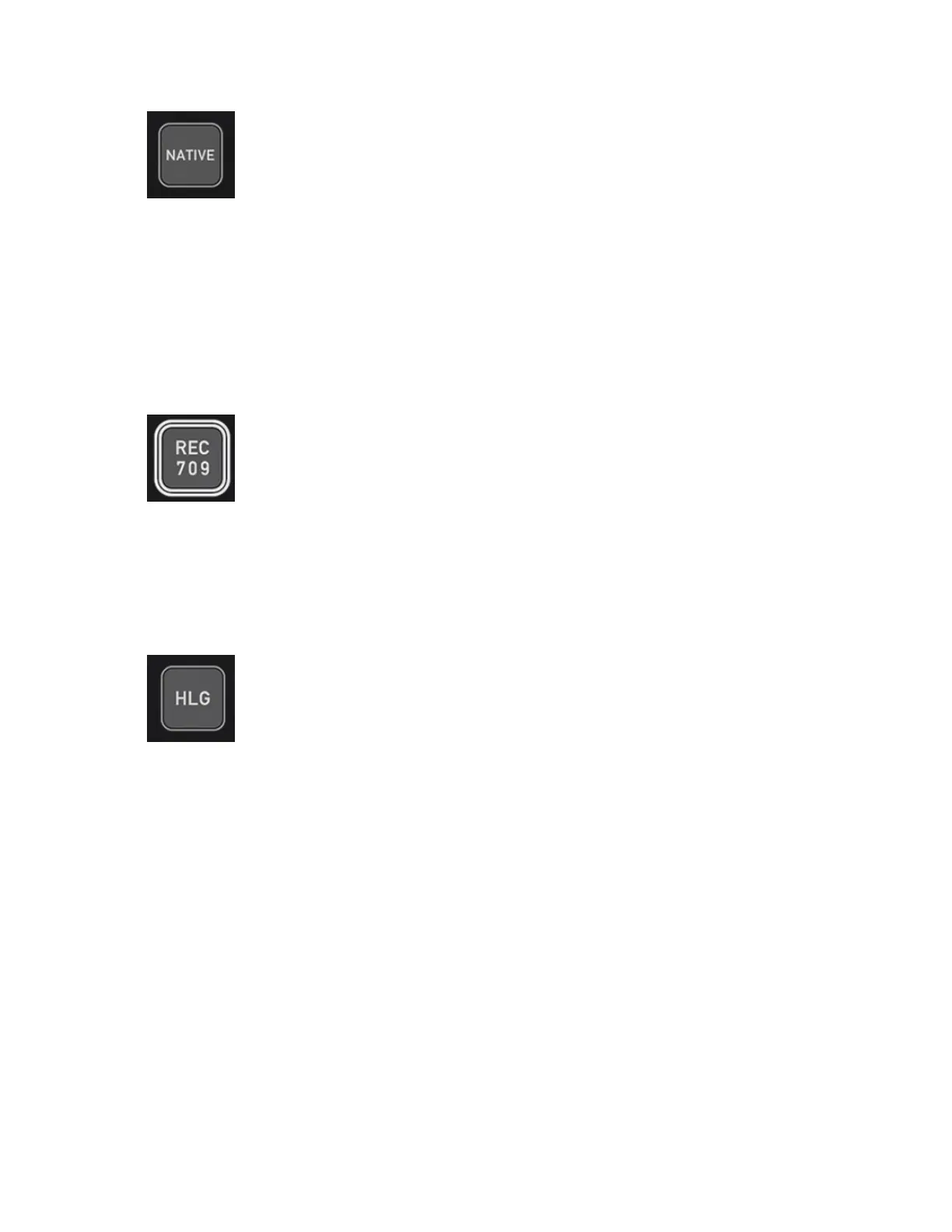

Native Video Source
This option will display the video source without any processing and the SHOGUN STUDIO
2 will behave as expected for a standard broadcast monitor. When connected to a camera
this means the image you are viewing is the untouched camera output e.g.. a standard
Rec.709 image or a Log image etc. A standard Rec.709 image will look correct and a Log
image will look flat.
Rec.709
With this mode selected the SHOGUN STUDIO 2 will map from the camera gamma/gamut
so that 100% linear IRE maps the panel’s white (1000nits). Everything above is clipped.
HLG (Hybrid Log Gamma)
With this mode selected the SHOGUN STUDIO 2 will map from the camera gamma/gamut
so that 1200% linear IRE maps the panel’s white (1000nits). Highlights are slightly com-
pressed.
