SC1000 Fiber Laser Cutting CNC System User’s Manual Version： V1.00
2017 年 3 月 27 日

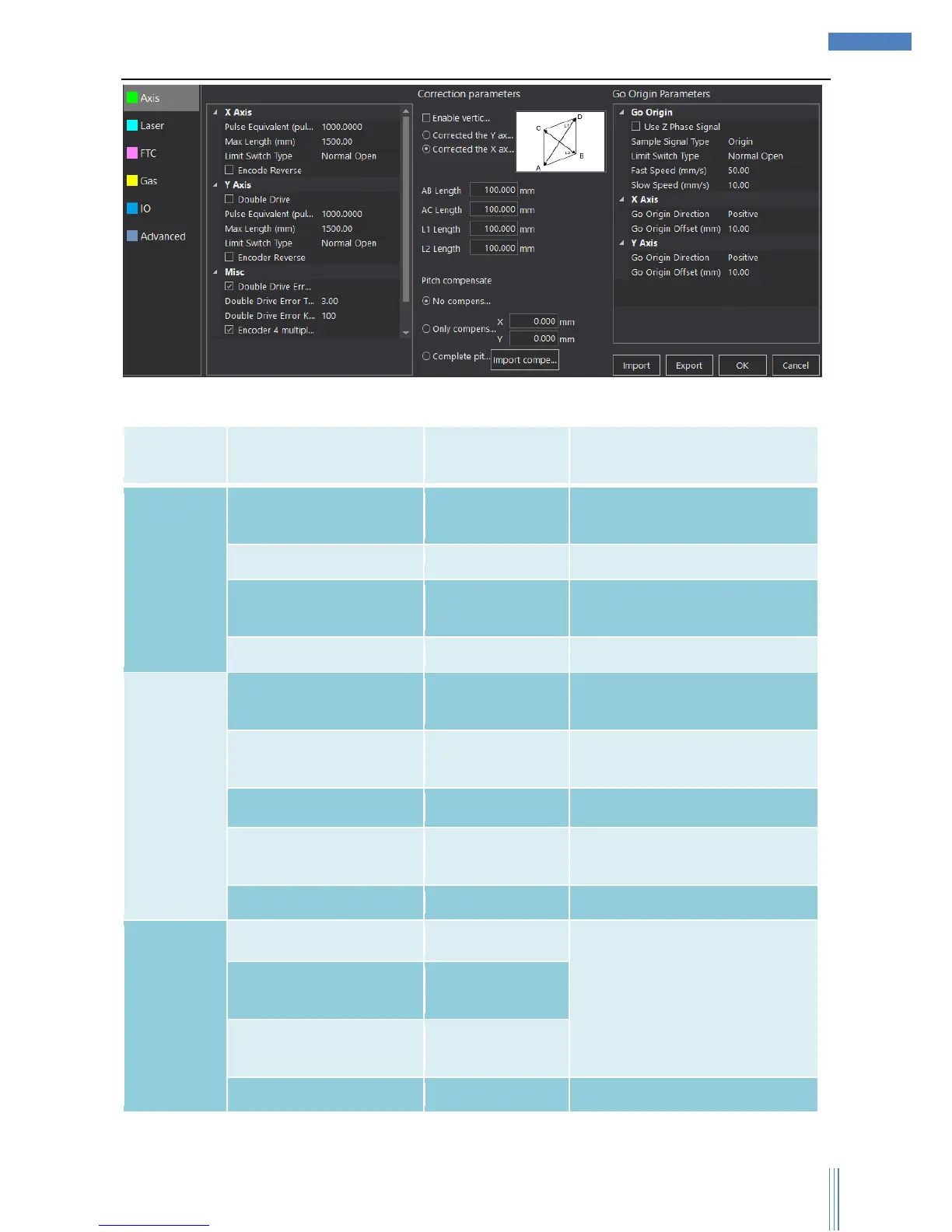

The descriptions of each axis shows as below :( Y axis has the same parameters as X axis.)：
Axis
Parameters
Name
Default Value
Remark
X-Axis
Pulse
Equivalent(pulse/mm)
1000
The number of pulses needed to
run 1mm
Max Length(mm)
1500
Normal open/close
Limit Switch Type
Normal Open
Limit switch type of X-axis should
be the same with Y-axis.
Encode Reverse
Don’t select
Y-Axis
Double Drive
Select
If checked, the Y axis enables
dual drive mode
Pulse
Equivalent(pulse/mm)
1000
The number of pulses needed to
run 1mm
Max Length(mm)
3000
Limit Switch Type
Normal Open
Limit switch type of Y-axis should
be the same with X-axis.
Encode Reverse
Don’t select
Misc
Double Drive Error Alarm
Select
If checked, the software will
alarm and stop when the alarm
condition is reached
Double Drive Error
Tolerance(mm)
3.00
Double Drive Error Keep
Time(ms)
100
Encoder 4 multiplier freq
Select
