AUDAC MTX48 - Login Screen; Main Screen Operation

24

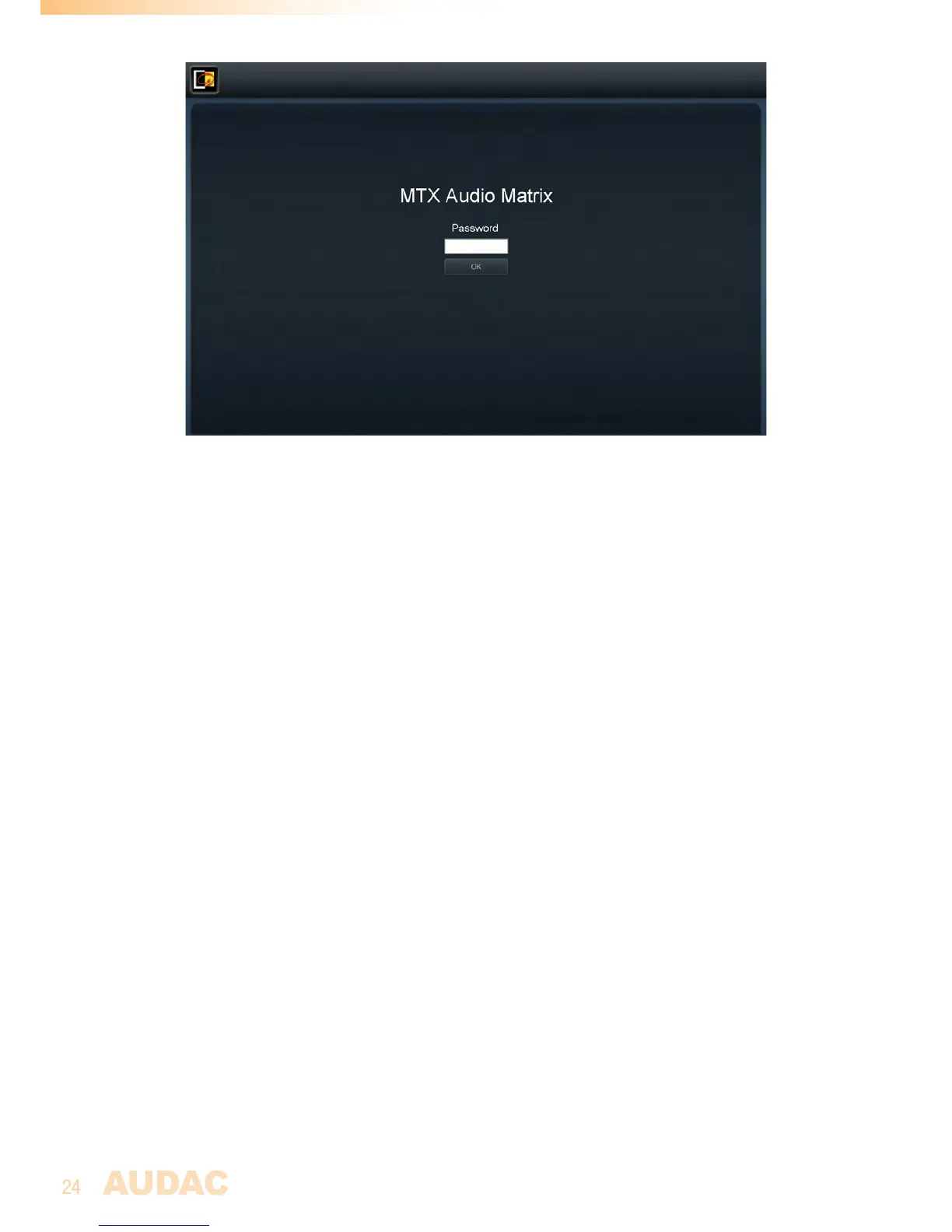

MTXLoginscreen
Main screen
Themainscreendisplaysalltheoutputzoneswithfadervolumecontrols.(4zonesfor
MTX48and8zonesforMTX88)
Volume control
Thevolumeofeachchannelcanbesetbymovingthefaderofthecorrespondingchannel
upordown.Atthetopandbottomsideofeachfaderisabuttonwithanarrowdisplayed
wherebythevolumecanberaisedorloweredinstepsof1dB.Atthebottomisa“Mute”
buttonprovidedwhichmutesthevolumeofthecorrespondingoutputchannelinoneclick.
Afterthevolumeismuted,thismutebuttonwillbecomeRed,andthevolumecanbe
unmutedafterclickingitagain.
Assign zone names
Forabetteroverviewofalloutputchannels,everyfadercanbeassignedbyaspecific
zonenameasshowninfollowingexample.Thenameofthezonecanbechangedby
doubleclickingonthenamewhichisdisplayedabovethecorrespondingfader.Whena
cursorcomesup,removetheexistingnamewiththebackspacekey,andjustchangethe
nameinthedesiredname.Clickonthe“SaveZoneSettings”buttonandconfirmtosave
thechangedzonesettings.Thenameofthecorrespondingzonewillbechanged,andnext
timeyoulogintothewebbaseduserinterface,thesamezonenameswillbedisplayed.
Connection status
Inthetopleftcornerofthewindowisthe“ConnectionStatus”displayed.Tohave
communicationwiththeMTX,theconnectionstatusmustbe“ONLINE”.Innormal
operation,thestatus“ONLINE”willbeindicatedingreen.Whenthestatus“ONLINE”is
showninorange,itmeansthecommunicationwiththematrixwasinterruptedbutis
restorednow.Whenthestatus“OFFLINE”isshowninred,itmeansthereiscurrentlyno
communicationwiththematrix.
