Chapter 1
Pin connections and connectors

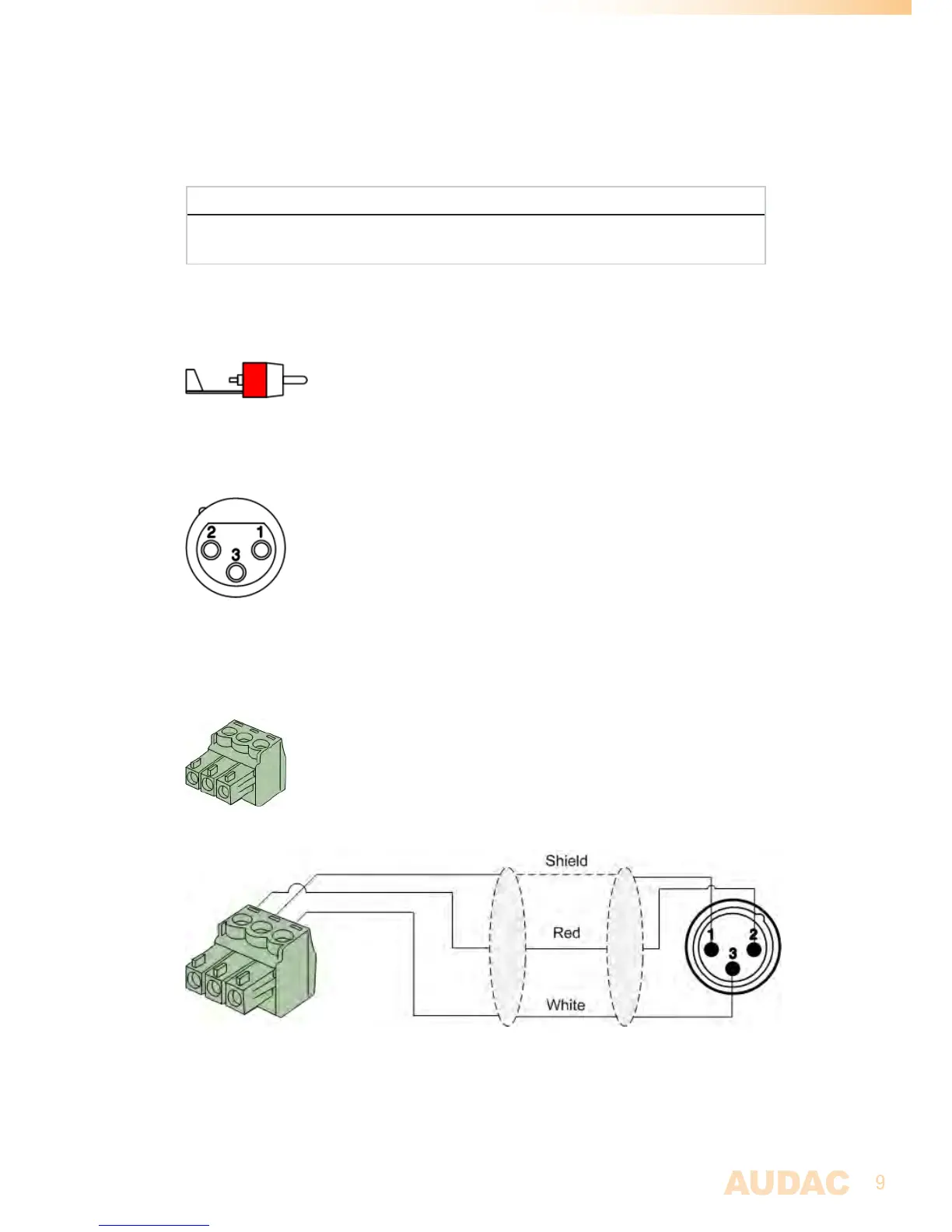

CONNECTION STANDARDS
Thein-andoutputconnectionsforAUDACaudioequipmentareperformedcorresponding
tointernationalwiringstandardsforprofessionalaudioequipment.
Cinch (RCA):
Forunbalancedlineinputconnections
 Tip: Signal  Sleeve:  Ground
 White: Left  Red: Right
XLR:
Forbalancedmicrophoneinputconnections
 Pin 1: Ground
 Pin 2: Signal+
 Pin 3: Signal-

3-Pin Euro-Terminal Block:
Forbalancedlineoutputconnections

 Left: Signal- (XLRPin3)
 Center:Signal+ (XLRPin2)
 Right:  Ground  (XLRPin1)
