AudioArts Engineering D-75 - TR-75 DB Connector Pinouts

page 9 – 3
D-75 / Sep 2004
TAPE REMOTE MODULE
9
10
11
12
13
22
23
24
25
6
7
8
19
20
21
4
5
16
17
18
1
2
3
14
15
SW1 (START) LED+
SW1 (START) N.O.
SW2 (STOP) LED+
SW2 (STOP) N.O
SW3 (START) LED+
SW3 (START) N.O.
SW4 (STOP) LED+
SW4 (STOP) N.O.
SW5 (START) LED+
SW5 (START) N.O.
SW6 (STOP) LED+
SW6 (STOP) N.O.
SW1 (START) LED-
SW1 (START) COMMON
SW2 (STOP) LED-
SW2 (STOP) COMMON
SW3 (START) LED-
SW3 (START) COMMON
SW4 (STOP) LED-
SW4 (STOP) COMMON
SW5 (START) LED-
SW5 (START) COMMON
SW6 (STOP) LED-
SW6 (STOP) COMMON
N/C
I/O CONTRO
L
PORTS
(DB-25)

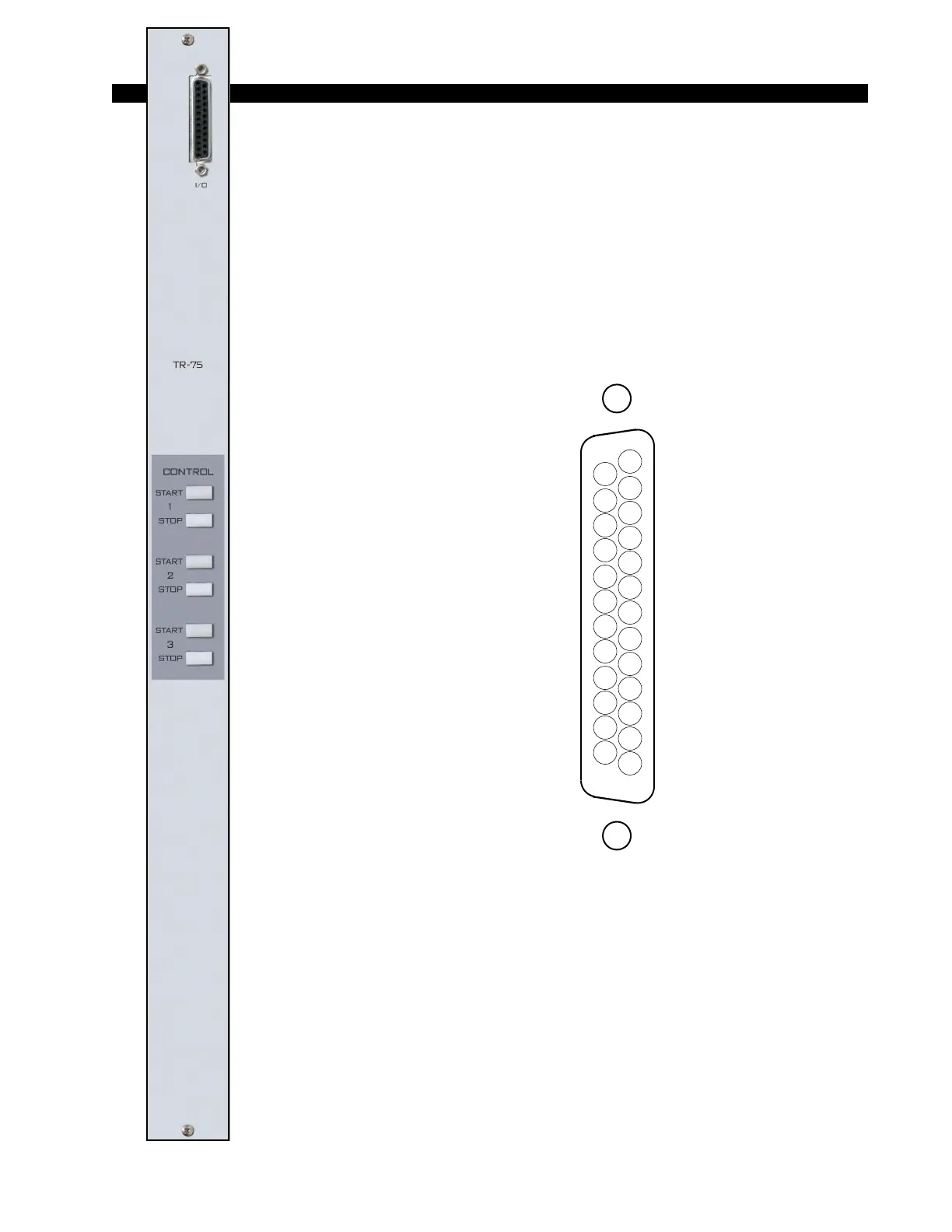

TR-75/SS Tape Remote Module
DB Connector Pinouts
SW1
SW2
SW3
SW4
SW5
SW6
