AudioCodes 440HD - Figure 2-1: Front View; Table 2-1: Font View Description

430HD and 440HD IP Phone
User's Manual 12 Document #: LTRT-11937

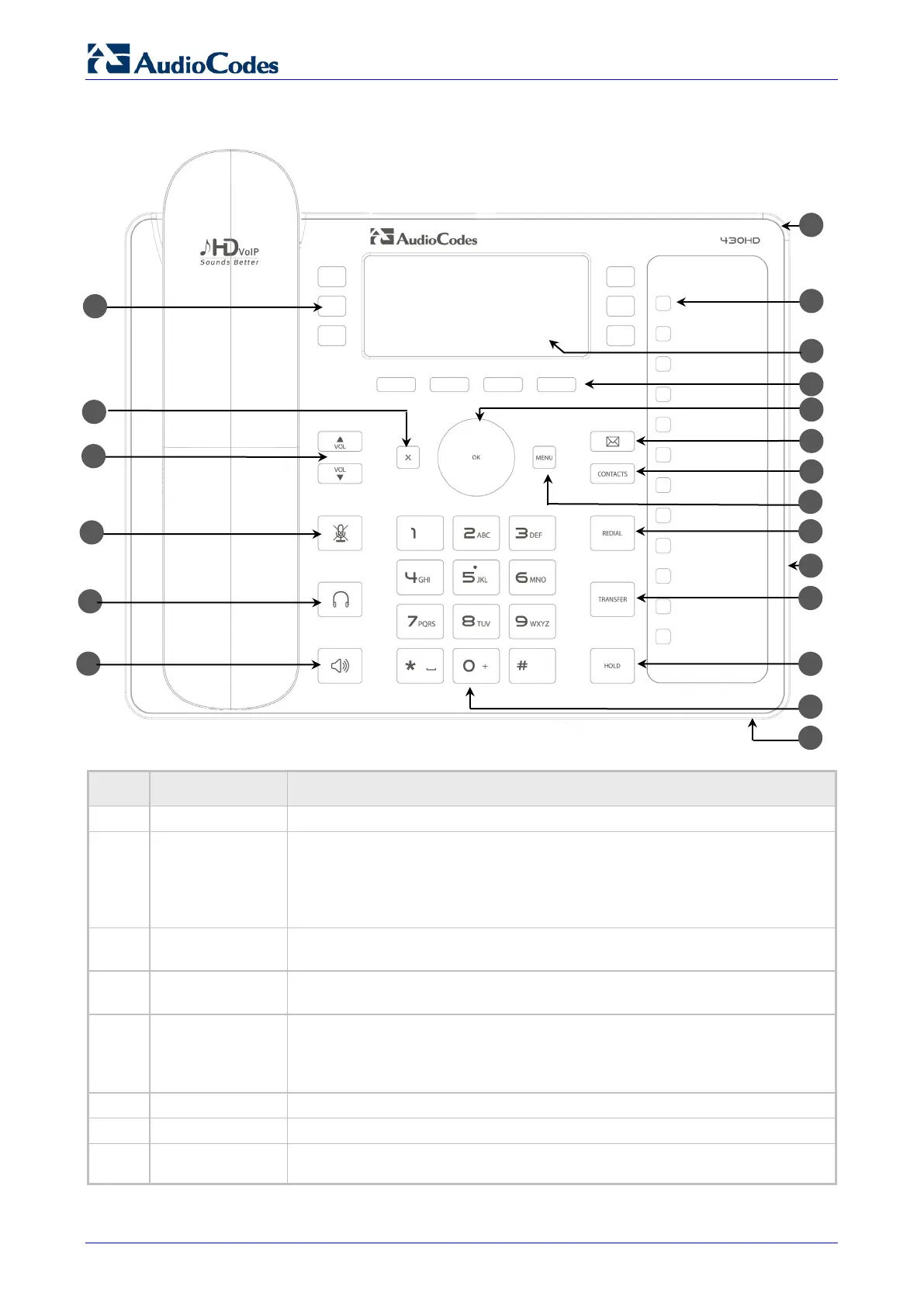

Figure 2-1: Front View
Table 2-1: Font View Description
Item # Label/Name Description
1 Ring LED
Flashing blue light visually indicates an incoming call.
2
Speed Dial &
BLF
Twelve Speed Dial buttons to quickly call the contact whose name is
displayed adjacent to it. You can configure these speed dial buttons with
Busy Lamp Field (BLF) functionality. On the 440HD phone, a dedicated
electronic screen displays contacts’ names. On the 430HD phone, you can
attach to a paper strip handwritten contacts’ names.
3 LCD
Liquid Crystal Display. Interactive screen displaying calling information,
letting you to configure phone features.
4 Softkeys
See Section 3.2 on page 18 for details on the four softkeys and the available
functions they offer.
5
Navigation
Control / OK
Press the upper rim to scroll up menus/items in the LCD display screen.
Press its lower rim to scroll down. Press its left or right rim to move the
cursor left or right (when editing a contact number for example). Press the
OK
button to select a menu/item/option.
6 Voicemail
Retrieves voicemail messages.
7 CONTACTS
Press to directly access the Personal directory and Corporate directory.
8
MENU
Accesses menus (1) Call Log (2) Directory (3) Speed Dial (4) Settings (5)
Status (6) Administration.
