AudioCodes 440HD - Rear View; Figure 2-2: Rear View; Table 2-2: Rear View Description

User's Manual 2. Setting up the Phone
Version 2.0.13B 13 430HD and 440HD IP Phone
Item # Label/Name Description
9
REDIAL
Accesses a list of recently dialed numbers; one can be selected to redial.
10
Kensington lock
Allows locking the device.
11
TRANSFER
Transfers a call.
12
HOLD
Places an active call on hold.
13
Alphanumerical
Keypad
Keys for entering numbers, alphabetical letters and symbols (e.g., colons)
14
Microphone
Allows talking and listening. IT managers can disable it if required.
15
SPEAKER
Activates the speakerphone, allowing a hands-free conversation.
16
HEADSET
Activates a call using an external headset.
17
MUTE
Mutes a call.
18
▲ VOL
Increases or decreases the volume of the handset, headset, speakerphone,
ring tone and call progress tones.
▼ VOL
19 x
Cancel an action, such as dialing a number, after beginning it.
20 ---
Programmable keys, located on each side of the LCD, to which you can
assign functions.

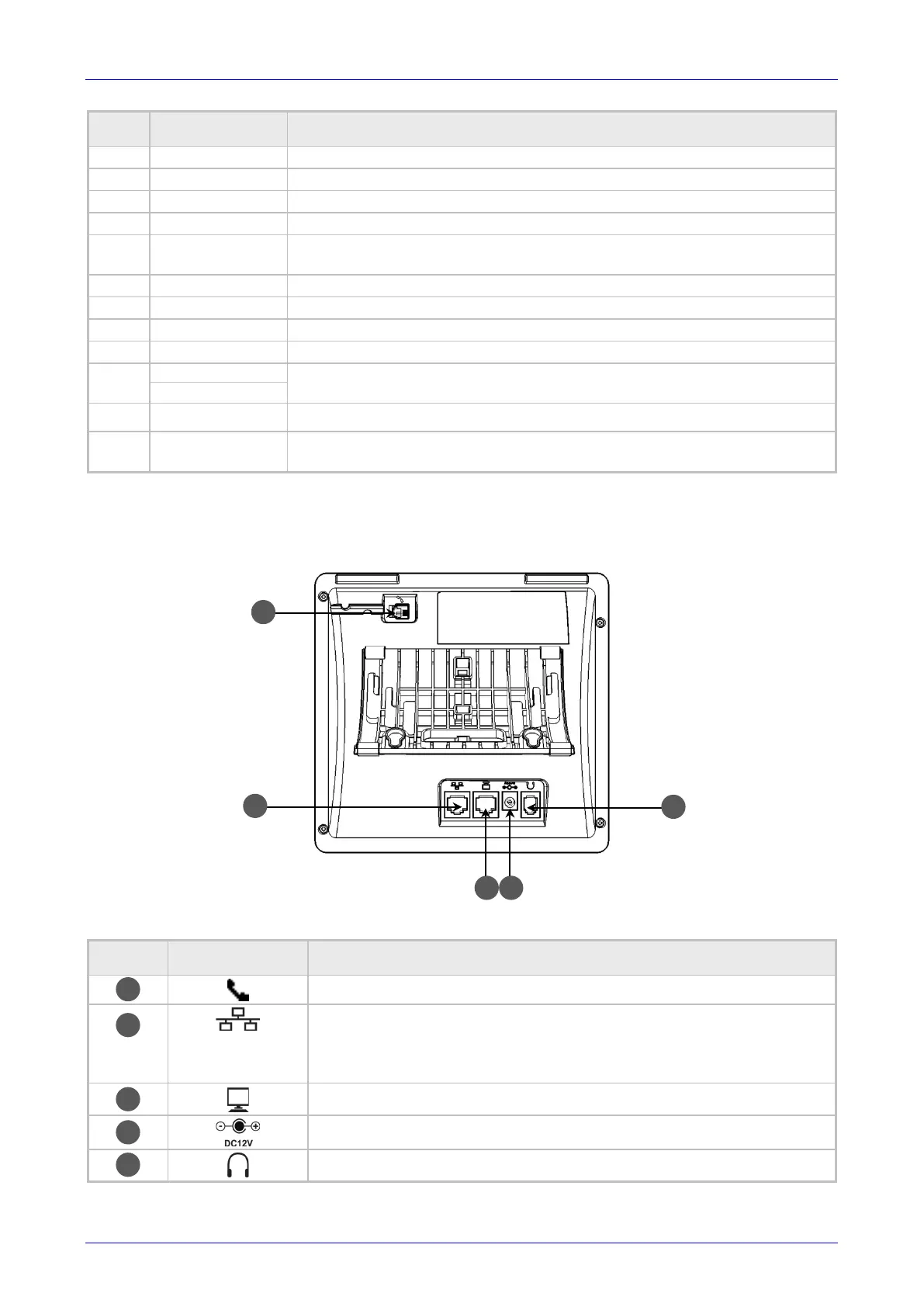

2.2.2 Rear View
The rear view of the phone is shown in the figure below and described in the table below.
Figure 2-2: Rear View
Table 2-2: Rear View Description
# Label Description
Handset jack, i.e., RJ-9 port, to connect the handset.
RJ-45 port to connect to the Ethernet LAN cable for the LAN connection
(uplink - 10/100/1000 Mbps). If you're using Power over Ethernet (PoE),
power to the phone is supplied from the Ethernet cable (draws power
from either a spare line or signal line).
RJ-45 port to connect the phone to a PC (10/100/1000 Mbps downlink).
12V DC power jack that connects to the AC power adapter.
Headset jack, i.e., RJ-9 port that connects to an external headset.
2
4
3
1
1
2
3
4
5
5
