430HD and 440HD IP Phone
User's Manual 16 Document #: LTRT-11937

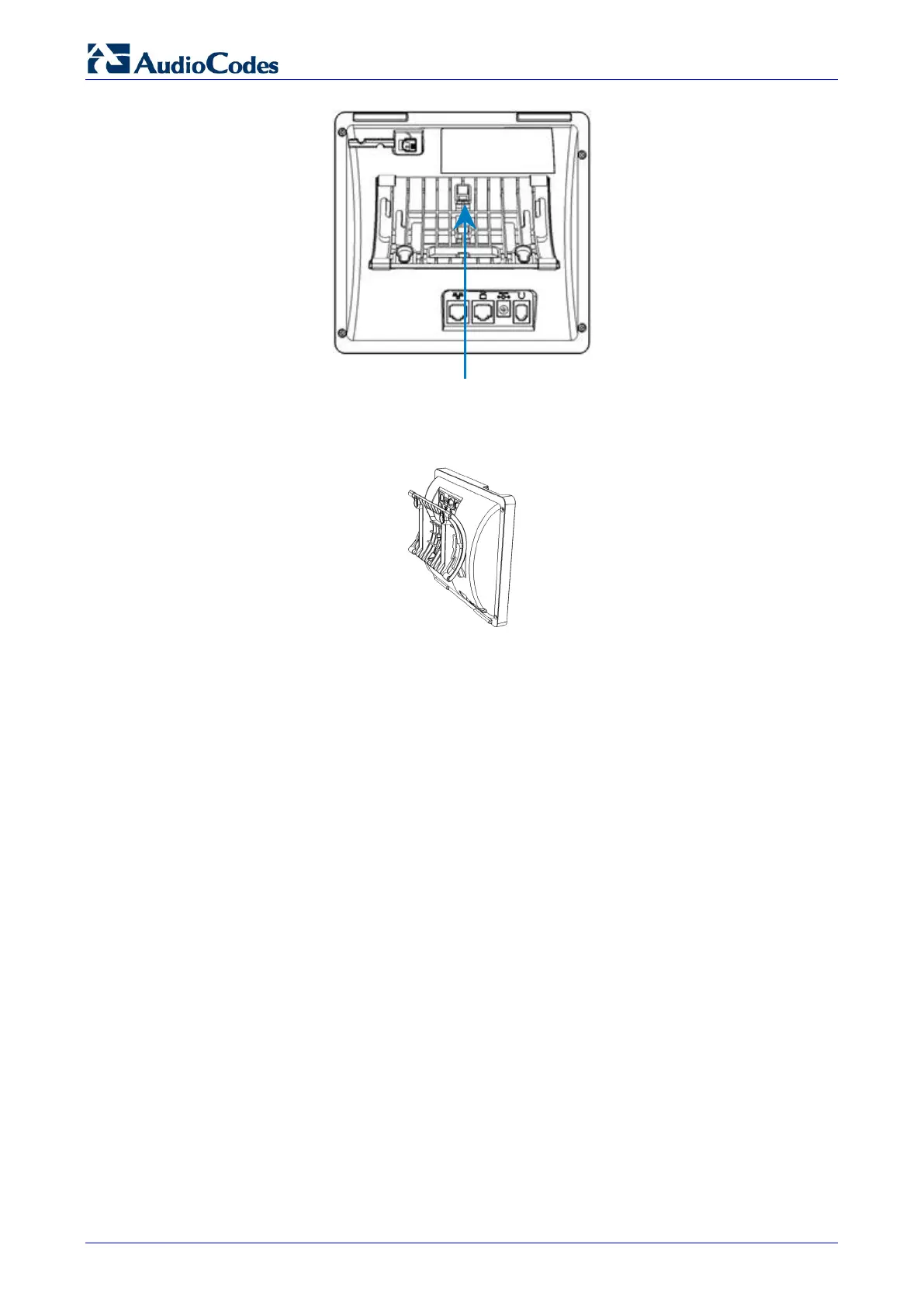

To detach the phone's stand, push this button
b. Attach it again as you did for a desktop mounting (see Section 2.4.1 on page 15) only
now make sure that it's flatly aligned to lie flush against the wall, i.e., slide the inner rails
of the phone stand onto the phone base's inner notches.
2. Connect the AC power adapter, LAN and PC cords.
3. In the wall, drill two horizontal holes at a distance of 3 15/16 inches (100 mm) from one
another, in line with the template.
4. Insert two masonry anchors into the holes if necessary.
5. Thread two screws (not supplied) into the two masonary anchors; ensure that the heads
extend sufficiently (about 3/16 inch or 5 mm from the wall) for the phone stand's keyhole
slots to hang on.
6. Hang the phone stand's keyhole slots on these screws.
