Hardware Installation Manual 5. Cabling the Device
Table 5-4: RJ-45 Connector Pinouts for xDSL
Pin Function
1 Not used
2 Not used
3 Not used
4 CH0-P/Tip
5 CH0-N/Ring
6 Not used
7 Not used
8 Not used
 To connect the WAN xDSL WAN port:
1. Connect an RJ-11 or RJ-45 cable connector to the device’s xDSL WAN port. The port
label depends on model:
• Mediant 800B MSBR: V/ADSLoISDN or ADSLoPOTS
• Mediant 800C MSBR: DSLoISDN or DSLoPOTS
2. Connect the other end of the cable to the DSL wall jack through an xDSL filter with
splitter.

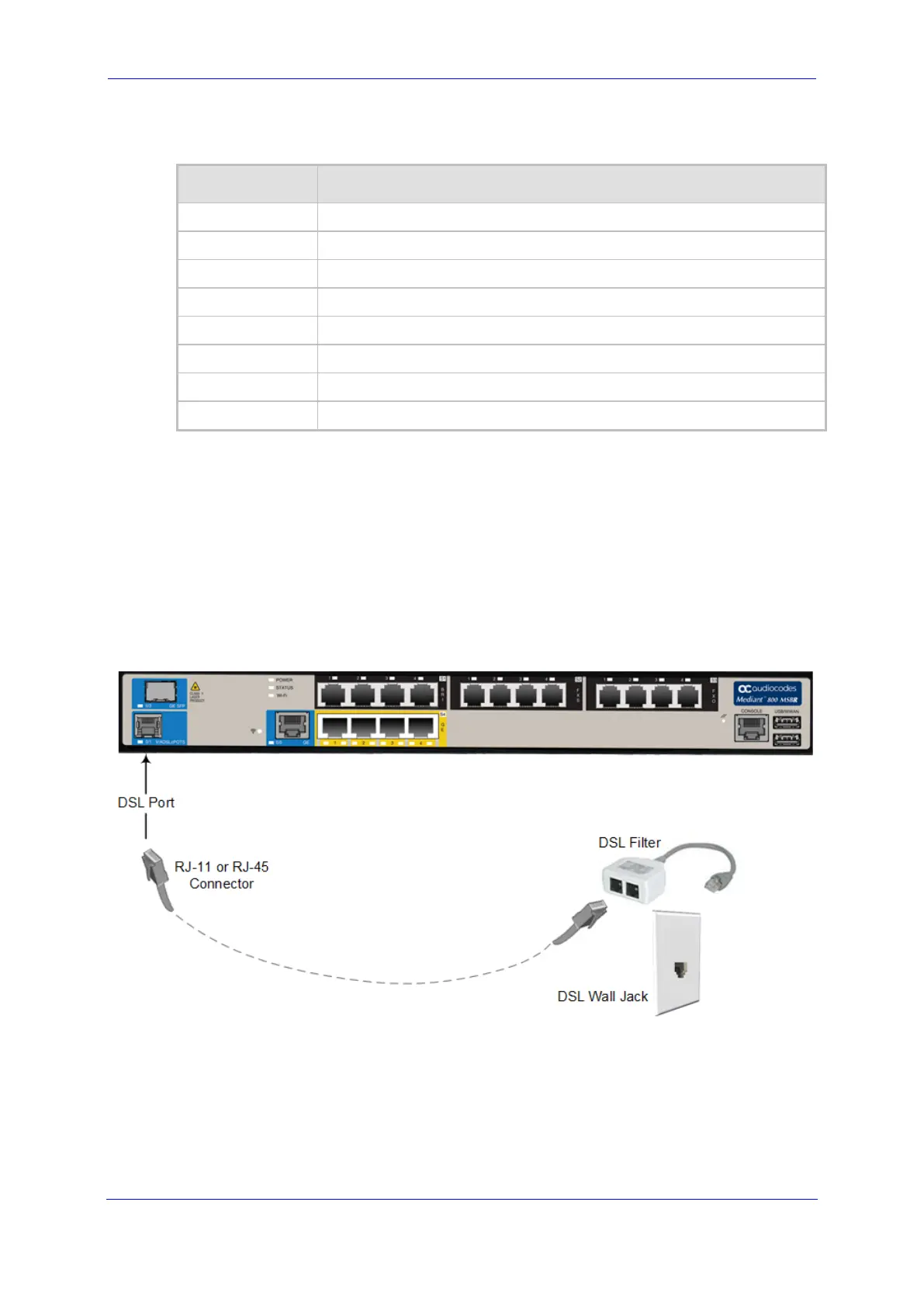

Figure 5-9: Cabling xDSL WAN Port – Mediant 800B MSBR
