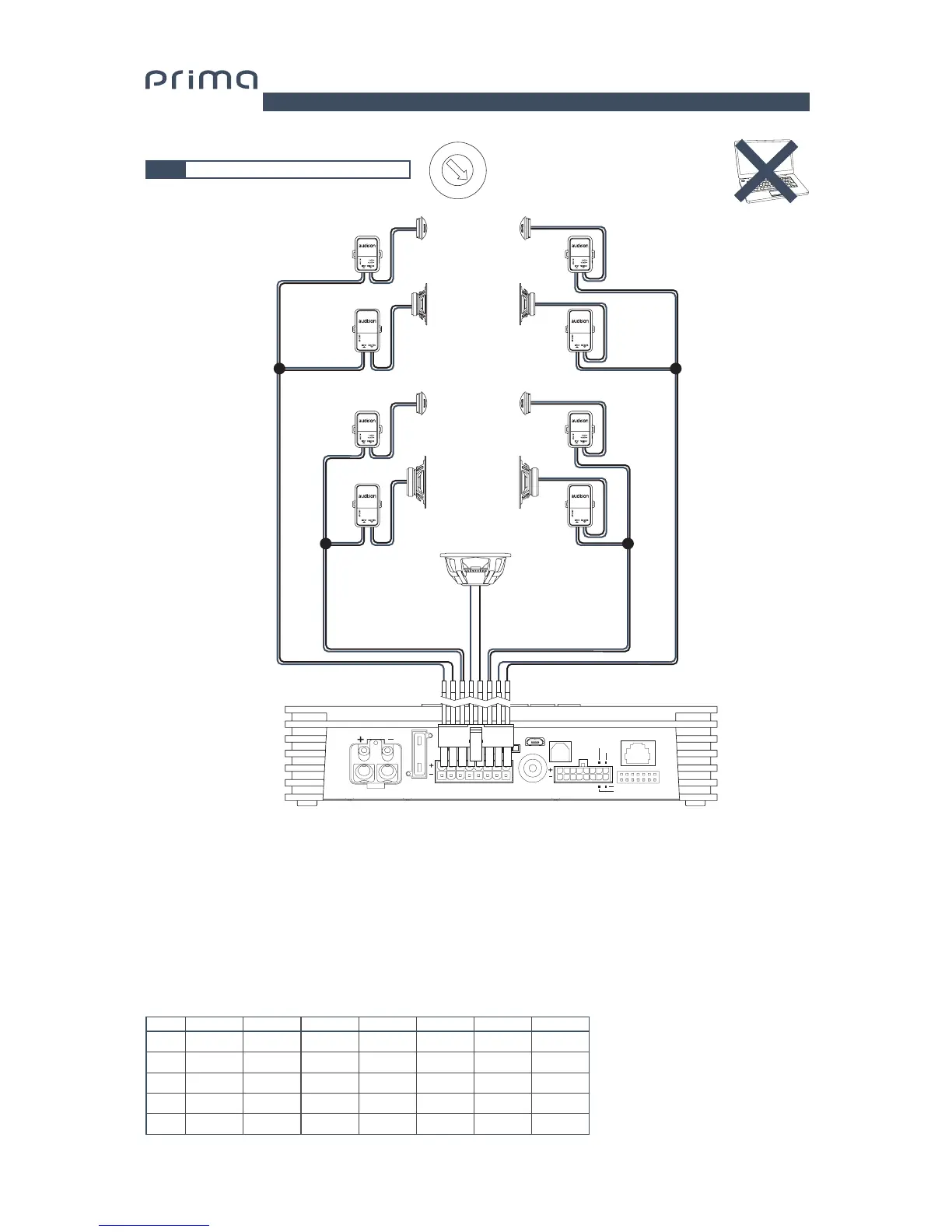

5.4.4 PRESET 3: FRONT + REAR + SUBWOOFER
INPUT CONFIGURATION:
Master input: Front + Rear
Aux input: In1 + In 2
Optical: S/P-DIF PCM 96kHz/24 bit max
MEMORY CONFIGURATION:
Memory A: Acoustic
Memory B: Rhythm
OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER @ 4Ω POWER @ 2Ω
OUT 1 + 2- FRONT LEFT HI PASS Linkwitz 80Hz @12 dB 82,2 cm 130 W N. A.
OUT 3 + 4- FRONT RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 130 W N. A.
OUT 5 REAR LEFT HI PASS Linkwitz 80Hz @12 dB 62,3 cm 35 W 65 W
OUT 6 REAR RIGHT HI PASS Linkwitz 80Hz @12 dB 116,2 cm 35 W 65 W
OUT 7 + 8- SUBWOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm 130 W N. A.
OUTPUT CONFIGURATION:
*Listening Point: Driver
0
1
2
3
4
5
6
7
POWER - 12V
USB
OPTICAL SEL.
12345
123
456
76
8
UPGRADEPRESETS
SPEAKER
OUT
OPTICAL IN
DRC
SUB OUT
INPUTS
ASP
OFF ON
REM IN
REM OUT
MASTER ENABLE
30A
SUBWOOFER
REAR
LEFT
FRONT
LEFT
REAR
RIGHT
FRONT
RIGHT
Out 1 (+) Out 6 (+) Out 5 (+) Out 3 (+) Out 7 (+) Out 2 (-) Out 6 (-) Out 5 (-) Out 4 (-) Out 8 (-)
