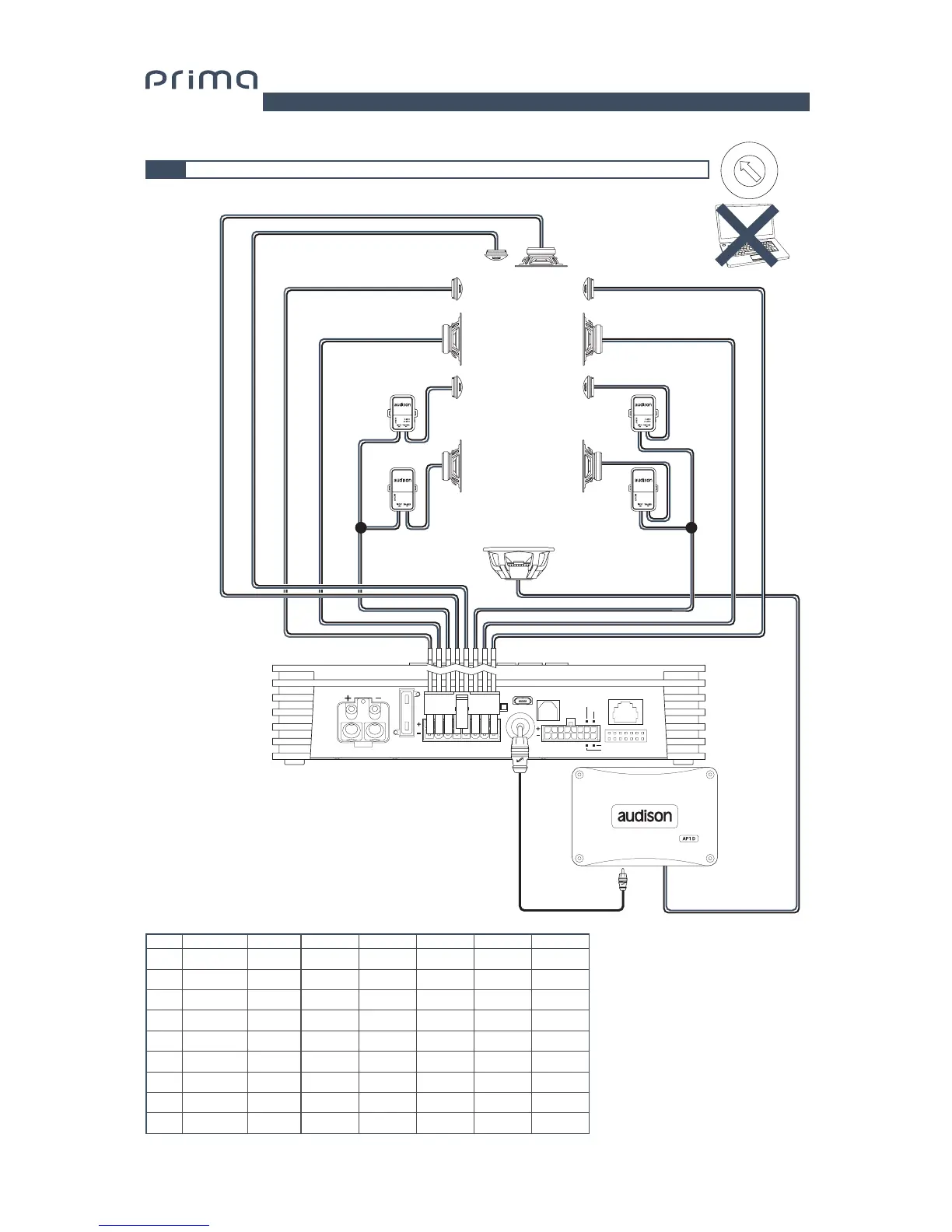

5.4.8 PRESET 7: 2 WAY ACTIVE FRONT + REAR + 2 WAY CENTER CHANNEL + EXTERNAL AMPLIFIED SUB
0
1
2
3
4
5
6
7
POWER - 12V
USB
OPTICAL SEL.
12345
123
456
76
8
UPGRADEPRESETS
SPEAKER
OUT
OPTICAL IN
DRC
SUB OUT
INPUTS
ASP
OFF ON
REM IN
REM OUT
MASTER ENABLE
30A
Out 8 (+)
Out 7 (+)
Out 1 (+)
Out 3 (+)
Out 5 (+)
Out 6 (+)
Out 4 (+)
Out 2 (+)
Out 8 (-)
Out 7 (-)
Out 1 (-)
Out 3 (-)
Out 5 (-)
Out 6 (-)
Out 4 (-)
Out 2 (-)
SUBWOOFER
WF
LEFT
FRONT
T
W
LEFT
FRONT
CENTER
WF
WF
RIGHT
FRONT
T
W
RIGHT
FRONT
CENTER
T
W
REAR FULL
LEFT
REAR FULL
RIGHT
INPUT CONFIGURATION:
Master input: Front + Rear
Aux input: In1 + In 2
Optical: S/P-DIF PCM 96kHz/24 bit max
MEMORY CONFIGURATION:
Memory A: Acoustic
Memory B: Rhythm
OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER @ 4Ω POWER @ 2Ω
OUT 1 FRONT TW LEFT HI PASS Linkwitz 3000Hz @12 dB 82,2 cm 35 W 65 W
OUT 2 FRONT TW RIGHT HI PASS Linkwitz 3000 Hz @12 dB 116,2 cm 35 W 65 W
OUT 5 REAR LEFT HI PASS Linkwitz 80 Hz @12 dB 62,3 cm 35 W 65 W
OUT 6 REAR RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 35 W 65 W
OUT 7 CENTER TW HI PASS Linkwitz 3000 Hz @12 dB 79,3 cm 35 W 65 W
SUB OUT SUB WOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm - -
OUT 3 FRONT WF LEFT BAND PASS Linkwitz
80 Hz @12 dB
82,2 cm 130 W N. A.
3000 HZ @ 12 dB
OUT 4 FRONT WF RIGHT BAND PASS Linkwitz
80 Hz @12 dB
116,2 cm 130 W N. A.
3000 HZ @ 12 dB
OUT 8 CENTER WF BAND PASS Linkwitz
300 Hz @12 dB
79,3 cm 130 W N. A.
3000 HZ @ 12 dB
OUTPUT CONFIGURATION:
*Listening Point: Driver
1
2
3
4
5
6
7
0
5
