SPEAKER OUT.

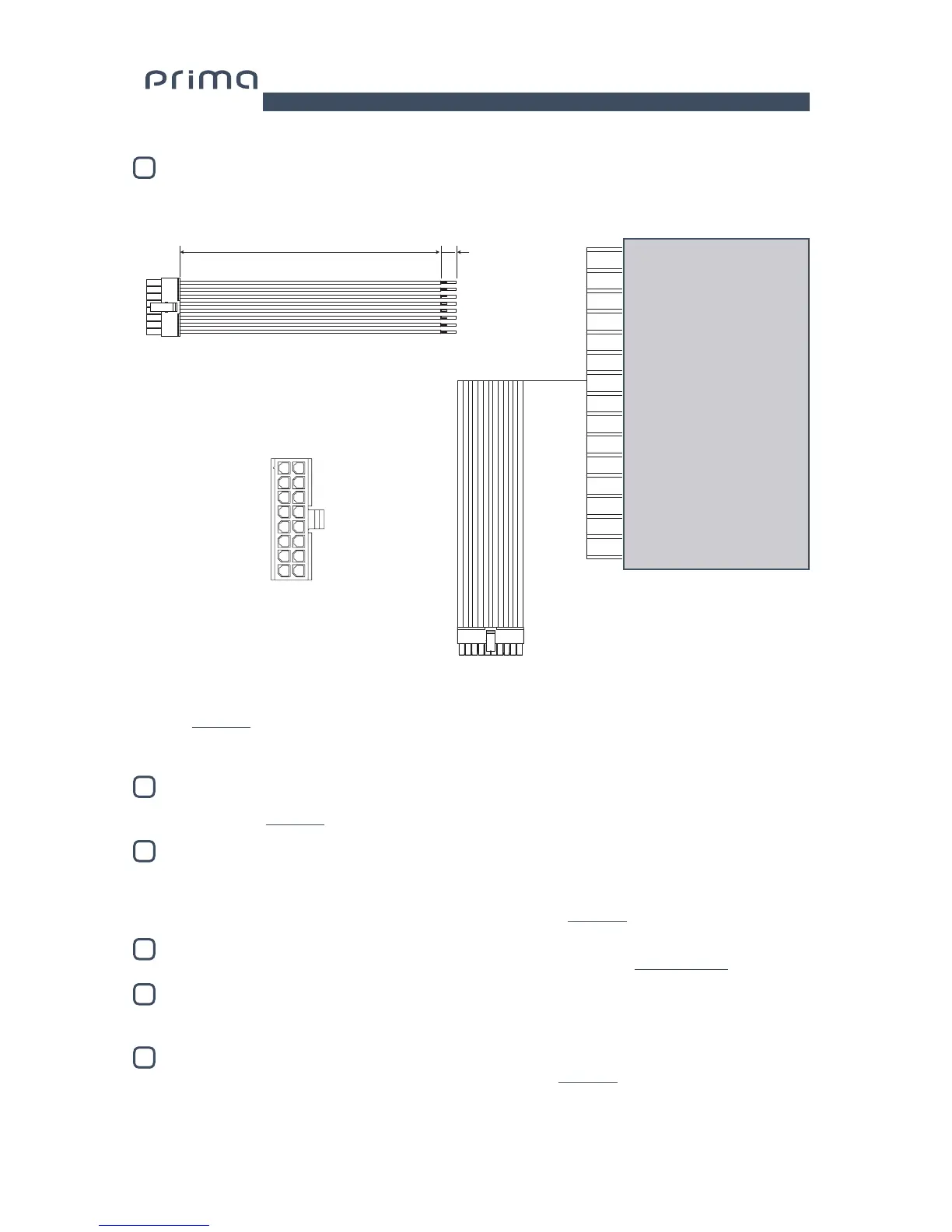

AP8.9 bit comes with a 16 pole multipolar connector to manage the power output signals.
A minimum of 4 and a maximum of 8 speakers can be configured based on the system you wish to create in your
vehicle.
(see sec. 5.4)
SUB OUT.
Pre-amplified output subject to LO PASS filtering optimized to drive a mono amplifier for an external subwoofer or
active subwoofer.
(see sec. 5.4)
OPTICAL IN.
AP8.9 bit accepts at its input PCM signals up to 96 kHz / 24 bit sampling frequency rate. So DOLBY DIGITAL (AC3)
multi-channel signals coming from audio/video sources (such as the audio of a film in DVD) or DTS can not be
reproduced. Connect a fiber optic cable with a TOSLINK connector. This input can be selected using the
external DRC control or by activating it using the OPTICAL IN terminal.
(see sec. 5.2)
DRC.
Connection terminal for remote control of the functions (OPTIONAL) on AP8.9 bit. (see sec. 5.5 - sec. 9)
USB.
USB (micro) connection to connect the product to a PC in order to manage the functions using AP8.9 bit software.
The connection is USB 1.1/2.0/3.0 compatible.
UPGRADE OFF-ON.
Switch ON allows the product to be updated in BOOT LOADER mode. (see sec. 8.3)
1: white/black OUT 8-
9: white OUT 8+
2: white/black OUT 7-
10: white OUT 7+
3: white/black OUT 6-
11: white OUT 6+
4: white/black OUT 5-
12: white OUT 5+
5: white/black OUT 4-
13: white OUT 4+
6: white/black OUT 3-
14: white OUT 3+
7: white/black OUT 2-
15: white OUT 2+
8: white/black OUT 1-
16: white OUT 1+
200 mm / 7.87 in.
10 mm / 0.39 in.
FRONT VIEW
OUT 8- 1
OUT 7- 2
OUT 6- 3
OUT 5- 4
OUT 4- 5
OUT 3- 6
OUT 2- 7
OUT 1- 8
9 OUT 8+
10 OUT 7+
11 OUT 6+
12 OUT 5+
13 OUT 4+
14 OUT 3+
15 OUT 2+
16 OUT 1+
4
4
5
6
7
8
9
