The Audyssey Installer Kit

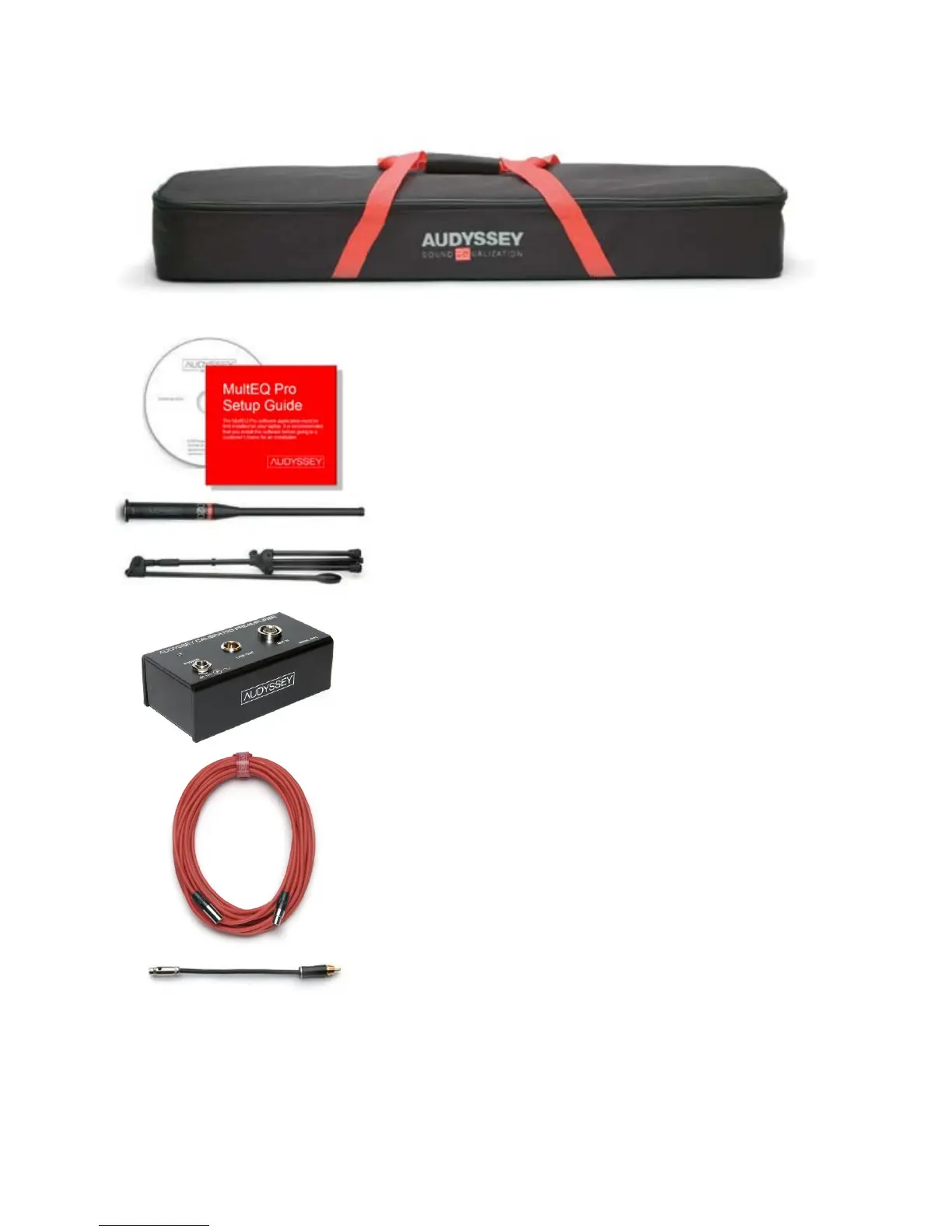

Kit Components
MultEQ Pro Application CD and Setup Guide
The MultEQ Pro Application and User Guide may be found on the
enclosed CD. A printed Setup Guide is included in the Installer Kit.
Calibrated Microphone and Microphone Stand
Each microphone is calibrated by Audyssey and comes with a custom
calibration curve that matches the microphone to a high-precision ¼”
reference microphone. The calibration curve for the microphone is
stored on the MultEQ Pro application CD included with the kit.
Calibrated Preamplifier
This microphone preamplifier provides phantom power to the
microphone and applies fixed gain amplification to the microphone
signal. It has no external controls.
Warning: Only use the supplied Audyssey Calibrated Preamplifier. Do not use
any other microphone preamplifier.
Microphone Mini-XLR Cables
The Installer Kit contains three 25 ft. mini-XLR cables. The cables are
used to connect the microphone, preamp and Audyssey Installer-Ready
Product. The cables can be linked together to provide 75 feet of length.
Additional mini-XLR cables may be purchased separately and
connected together for longer lengths.
For products with a balanced microphone input, place the longest
length of cable between the preamplifier and the product. For products
with an unbalanced (RCA) microphone input, place the longest length of
cable between the microphone and the preamplifier.
If necessary, use this adapter to connect the mini-XLR cable to the
proper input on the Audyssey Installer-Ready Product.
