5.2.3. Terminal compartment: close

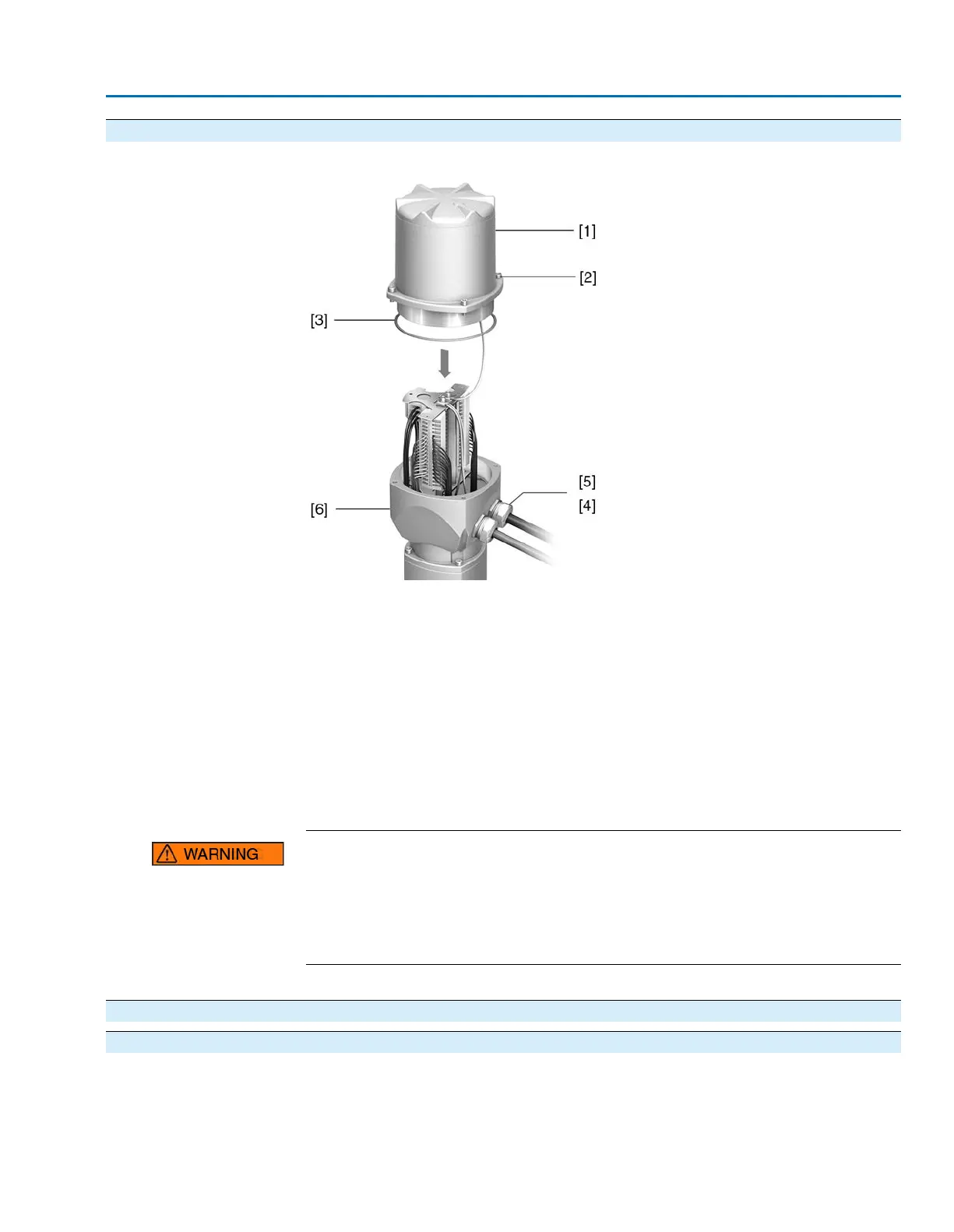

Figure 16: Close terminal compartment
[1] Cover
[2] Screws for cover
[3] O-ring
[4] Blanking plugs
[5] Cable gland
[6] Frame
1. Clean sealing faces of cover [1] and frame [6].
2. Preserve joint surfaces with an acid-free corrosion protection agent.
3. Check whether O-ring [3] is in good condition, replace if damaged.
4. Apply a thin film of non-acidic grease to the O-ring and insert it correctly.
Flameproof enclosure, danger of explosion!
Risk of death or serious injury.
→
Handle cover and housing parts with care.
→
Joint surfaces must not be damaged or soiled in any way.
→
Do not jam cover during fitting.
5. Fit cover [1] and fasten screws [2] evenly crosswise.
5.3. Accessories for electrical connection
5.3.1. Parking frame
— Option —
Application
Parking frame for safe storage of a disconnected plug.
For protection against touching the bare contacts and against environmental influences.
23
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2
Electrical connection
