7. Indications
7.1. Mechanical position indicator/running indication on indicator mark on cover
— Option —

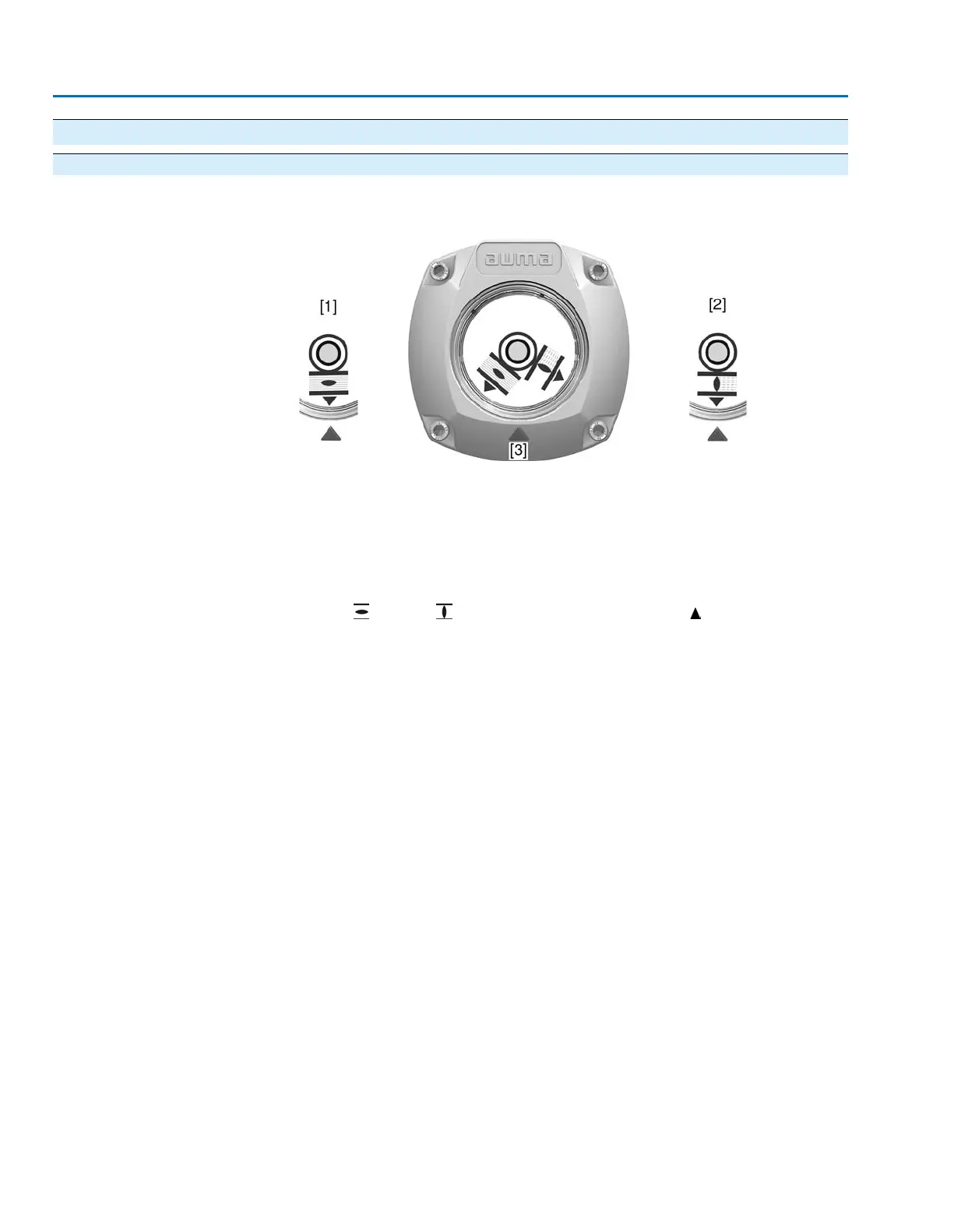

Figure 19: Mechanical position indicator via indicator mark on cover
[1] End position OPEN reached
[2] End position CLOSED reached
[3] Indicator mark on cover
Characteristics
●
Independent of power supply
●
Used as running indication (indicator disc rotates during actuator operation)
●
Indicates that end positions (OPEN/CLOSED) have been reached
(symbols (OPEN)/ (CLOSED) refer to indicator mark on cover)
●
Continuously indicates the valve position
(For complete travel from OPEN to CLOSED or vice versa, the indicator disc rotates
approximately 180° to 230°.)
26
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2
Indications
