AUMA SAEx 07.2 Operation Manual

2. Identification
2.1. Name tag
Each device component (actuator, motor) is equipped with a name tag.

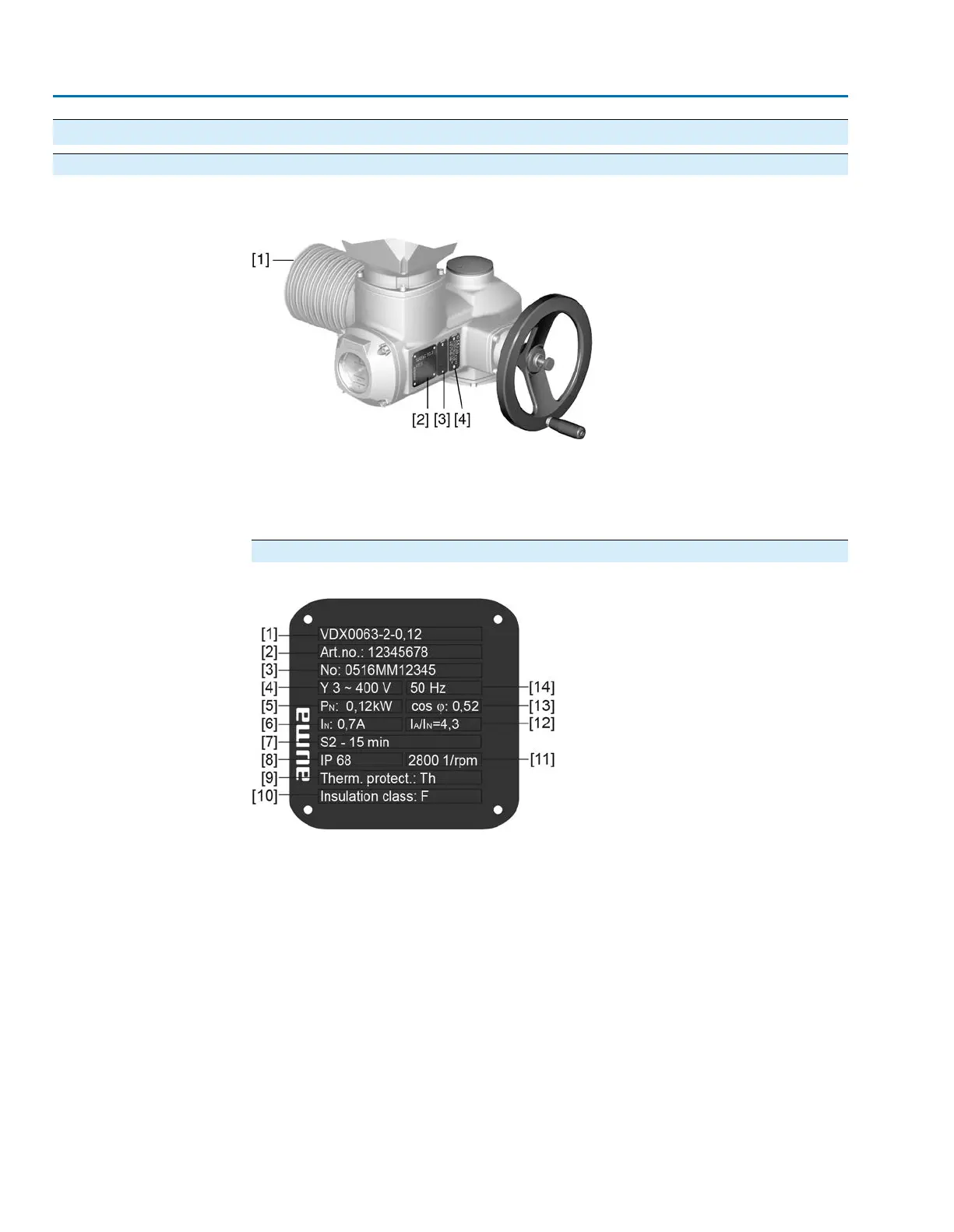

Figure 1: Arrangement of name tags
[1] Motor name tag
[2] Actuator name tag
[3] Additional plate, e.g. KKS plate (Power Plant Classification System)
[4] Explosion protection approval plate
Actuator name tag
Figure 2: Actuator name tag (example)
[1] Name of manufacturer
[2] Address of manufacturer
[3] Type designation
[4] Order number (commission number)
[5] Actuator serial number
[6] Speed
[7] Torque range in direction OPEN
[8] Torque range in direction CLOSE
[9] Type of lubricant
[10] Permissible ambient temperature
[11] Can be assigned as an option upon customer request
[12] Enclosure protection
8
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2
Identification
