AUMA SG 05.1 - Page 44

Default value: according to order data
Setting range: according to torque setting range, refer to actuator name plate

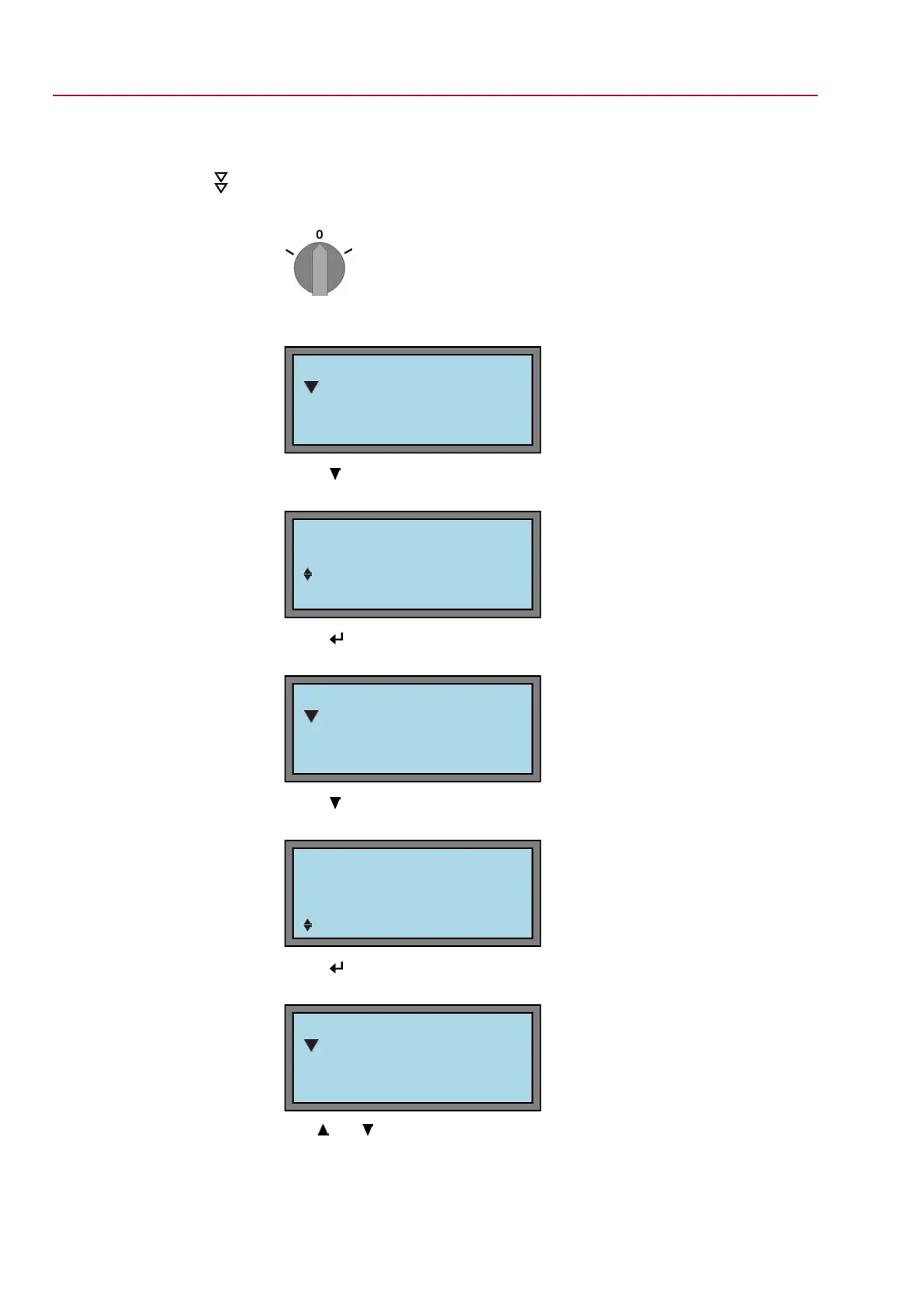

Step by step:
1. Set selector switch to position 0 (OFF).
2.
Press C and hold it down for approx. 3 seconds.
➥
Display indicates:
MAIN MENU M0
LANGUAGE/CONTRAST
SETTINGS
OPERATIONAL DATA
3.
Press .
➥
Display indicates:
MAIN MENU M1
LANGUAGE/CONTRAST
SETTINGS
OPERATIONAL DATA
4.
Press .
➥
Display indicates:
SETTINGS M10
SET LIMIT SWITCHES
SEATING MODE
TORQUE
5.
Press twice.
➥
Display indicates:
SETTINGS M12
SET LIMIT SWITCHES
SEATING MODE
TORQUE
6.
Press .
➥
Display indicates:
TORQUE M120
VIEW
EDIT
Use and to select between VIEW and EDIT.
