1. Establish communication with the test vehicle via the MaxiFlash Elite.
2. Identify the test vehicle by selecting from the menu options.
3. Select the Diagnosis section.
4. Locate the required system for testing by Auto Scan or through menu
driven selections in Control Units.
5. Select the desired test from the Function Menu.
ECU Information
This function retrieves and displays the specific information for the tested
control unit, including unit type, version number and other specifications. The

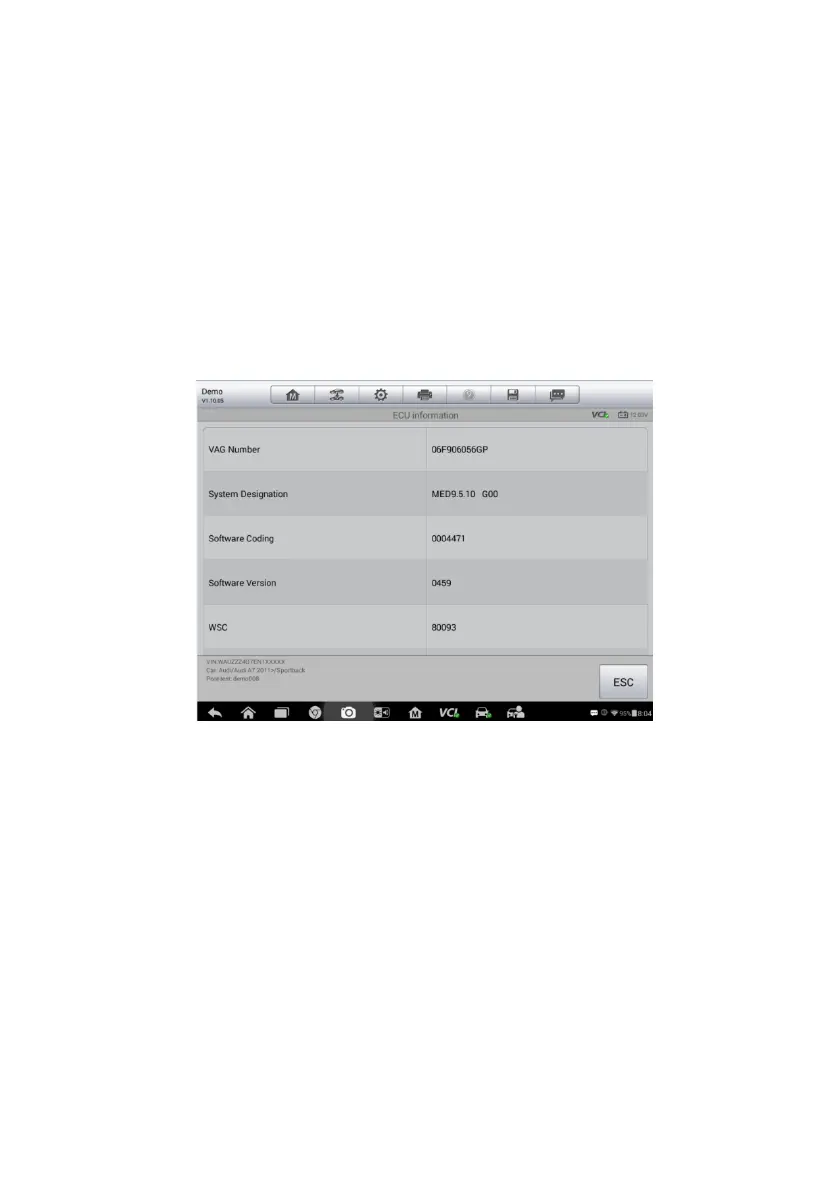

sample ECU Information screen displays as below:
Figure 4-4 Sample ECU Information Screen
1. Diagnostics Toolbar Buttons – see Table 4-1 Diagnostics Toolbar Buttons
on page 18 for detailed descriptions of the operations for each button.
2. Main Section – the left column displays the item names; the right column
displays the specifications or descriptions.
3. Functional Button – in this case, only an ESC (or Back) button is available;
tap it to exit after viewing.
Read Codes
This function retrieves and displays the DTCs from the vehicle’s control
system. The Read Codes screen varies by vehicle, on some vehicles, freeze
frame data can also be retrieved for viewing. The sample Read Codes screen
displays as below:
To Next Page
