Dimension Variable Name to Override
Overrides the value of the dimensioning system variable you specify.
Enter new value for dimension variable <current>: Enter a value or press ENTER
If you enter a new value, the Dimension Variable Name to Override prompt
is redisplayed. If you press ENTER , you are prompted to select the
dimensions.
Select objects: Use an object selection method to select the dimensions
The overrides to the selected dimensions are applied.
Clear Overrides
Clears any overrides on selected dimensions.
Select objects: Use an object selection method to select the dimensions
The overrides are cleared, and the dimension objects return to the settings
defined by their dimension style.
DIMRADIUS
Creates radial dimensions for circles and arcs

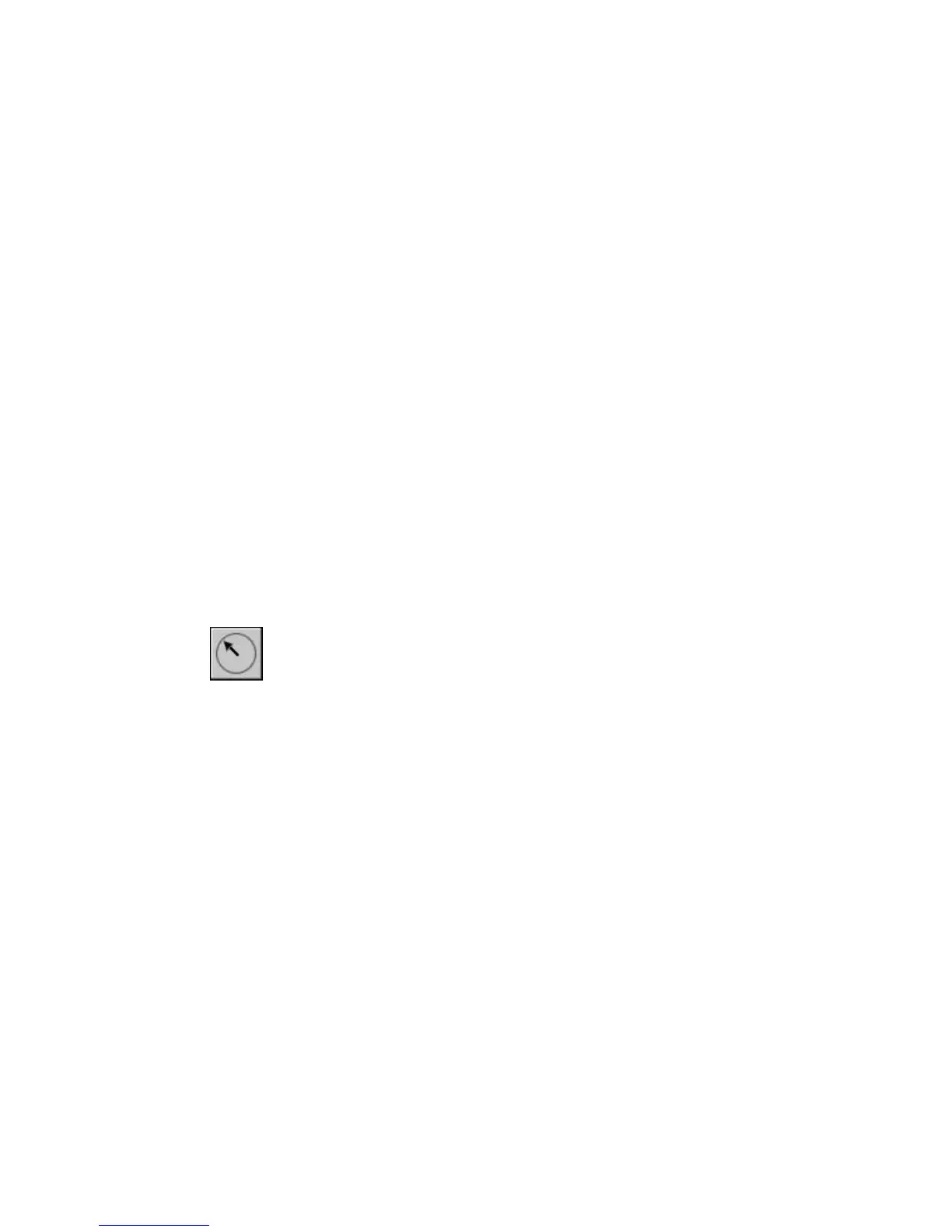

Dimension toolbar:
Dimension menu: Radius
Command line: dimradius
Select arc or circle:
DIMRADIUS measures the radius of the selected arc or circle and displays the
dimension text with a radius symbol in front of it.
Specify Dimension Line Location or [Mtext/Text/Angle]: Specify a point or enter an
option
Dimension Line Location
Determines the angle of the dimension line and the location of the
dimension text.
Mtext
Displays the In-Place Text Editor, which you can use to edit the dimension
text. To add a prefix or a suffix, enter the prefix or suffix text before or after
342 | Chapter 6
