Source
Displays the name of the document that contains the information you
copied. It may also show the specific section of the document you copied.
PCINWIZARD
Displays a wizard to import PCP and PC2 configuration file plot settings into the Model
tab or current layout
Tools menu: Wizards ➤ Import Plot Settings
Command line: pcinwizard
PCINWIZARD displays the Import PCP or PC2 Plot Settings wizard. Information
that can be imported from PCP or PC2 files includes plot area, rotation, plot
offset, plot optimization, plot to file, paper size, plot scale, and pen mapping.
The wizard prompts you for the name of the PCP or PC2 configuration file
from which you want to import settings. You can view and modify the plot
settings prior to importing them. The imported settings can be applied to the
current Model tab or layout tab.
PEDIT
Edits polylines and three-dimensional polygon meshes

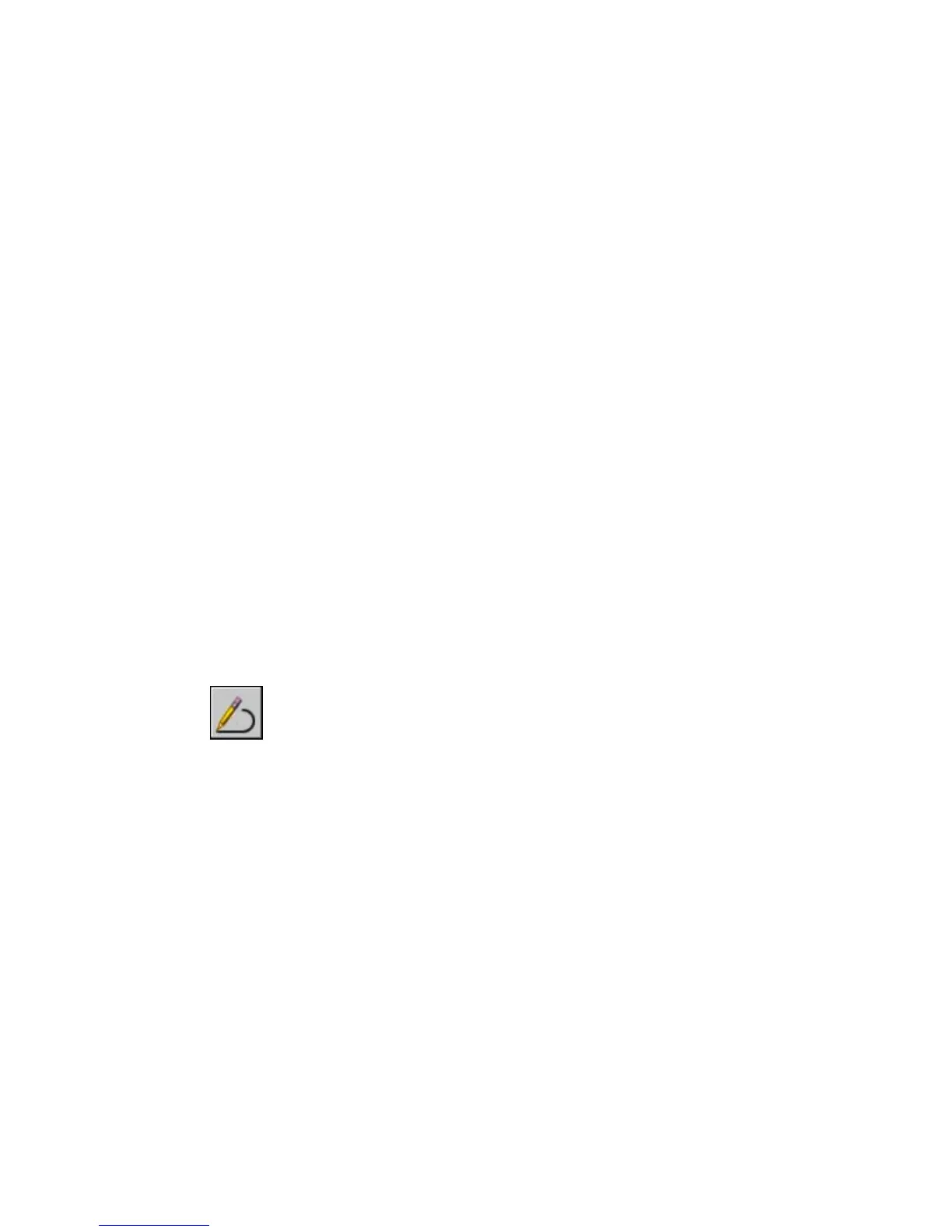

Modify II toolbar:
Modify menu: Object ➤ Polyline
Shortcut menu: Select a polyline to edit, right-click in the drawing area, and
choose Polyline Edit.
Command line: pedit
Select polyline or [Multiple]: Use an object selection method or enter m
The remaining prompts depend on whether you have selected a 2D Polyline
Selection, a 3D Polyline Selection, or 3D Polygon Mesh Selection.
If the selected object is a line or an arc, the following prompt is displayed:
Object selected is not a polyline.
Do you want it to turn into one? <Y>: Enter y or n , or press ENTER
838 | Chapter 17
