5 Preparation and Startup
© Copyright Reserved Autonics Co., Ltd. 39

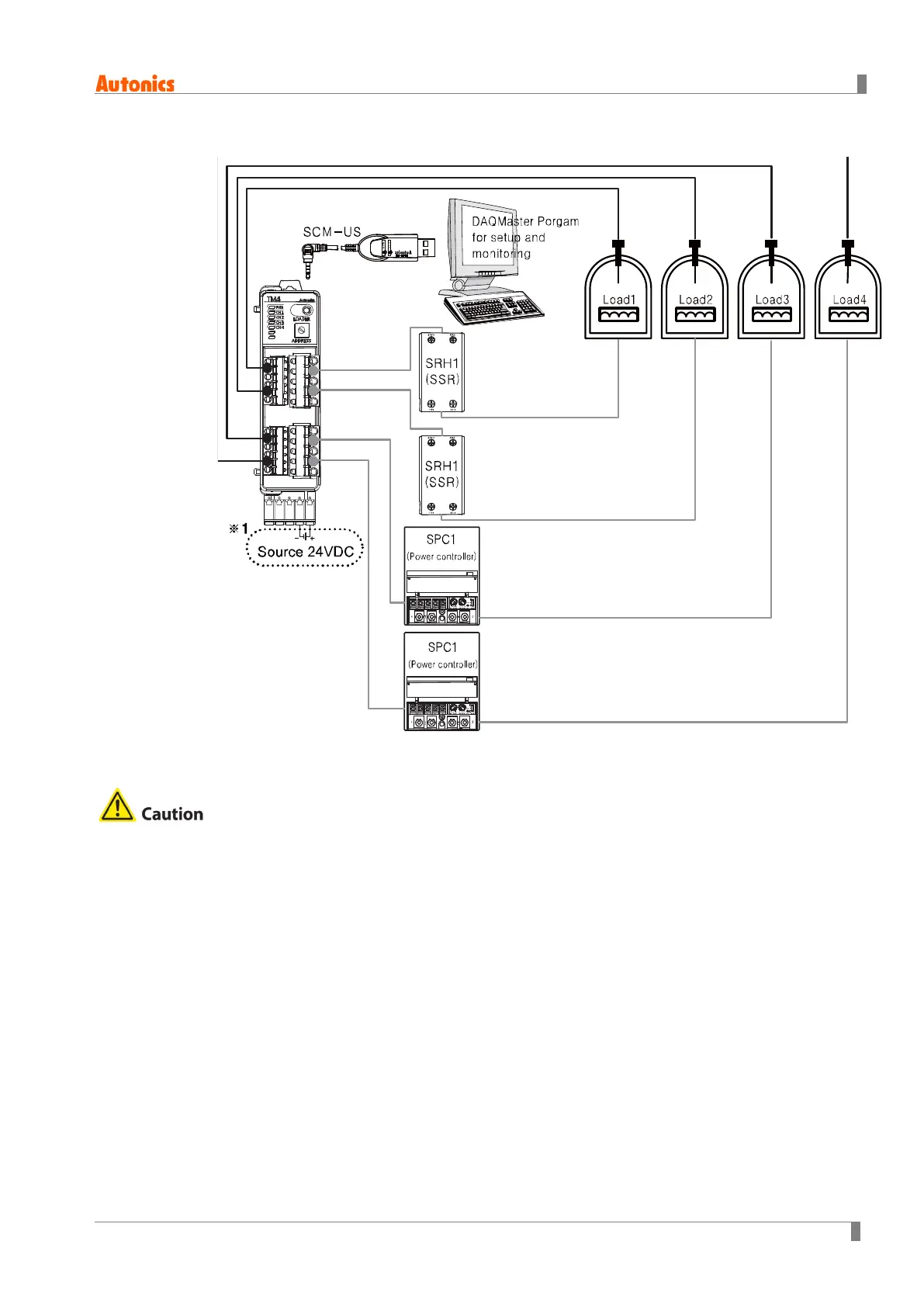

(2) TM4-N2SB model (SSR drive output)
※1. Using SCM-US enables only setting parameter. To monitor and control temperature
requires the additional 24VDC power supply.
Do not connect SCM-US and RS485 communications cables at the bottom at the same
time.
Use an isolated type SSR.
To Next Page
