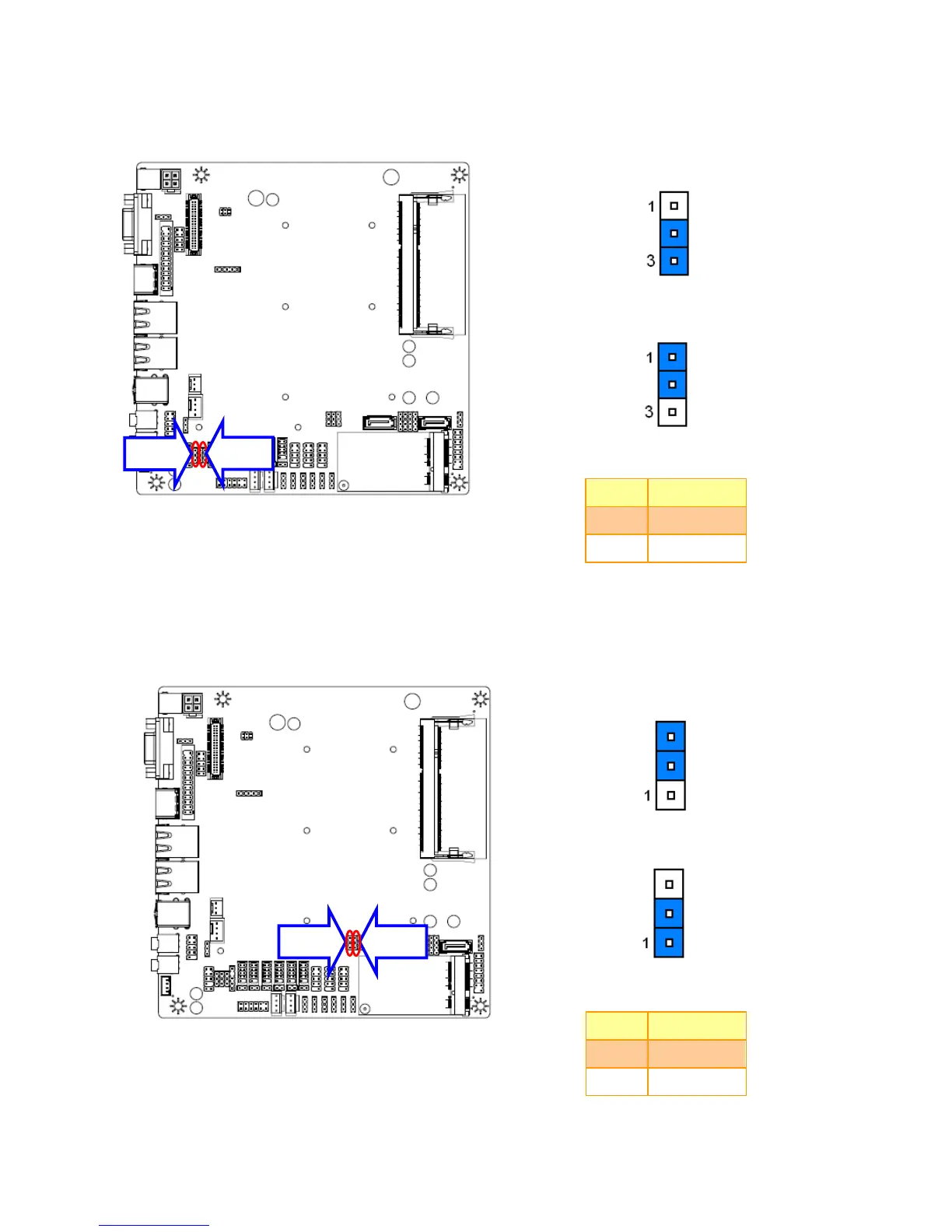

2.4.3 Jumper for COM2, IR selection (JIR1~2)
* Default
IR*
COM
Pin
Define
1-2
COM
2-3
IR
Note: IR is not functional.
2.4.4 Jumper for FUSB2, MINIPCIE selection (JU1~2)
* Default
FUSB2*
MINIPCIE
Pin
Define
1-2
FUSB2
2-3
MINIPCIE
JIR2
JIR1
JU2
JU1
