Avalue Technology EMX-CDD - Jumper for Serial Port 1~6 Selection (JC1~6); Jumper for MSATA PWR Selection (J_MSATA_P)

EMX-CDD User’s Manual
EMX-CDD User’s Manual 21

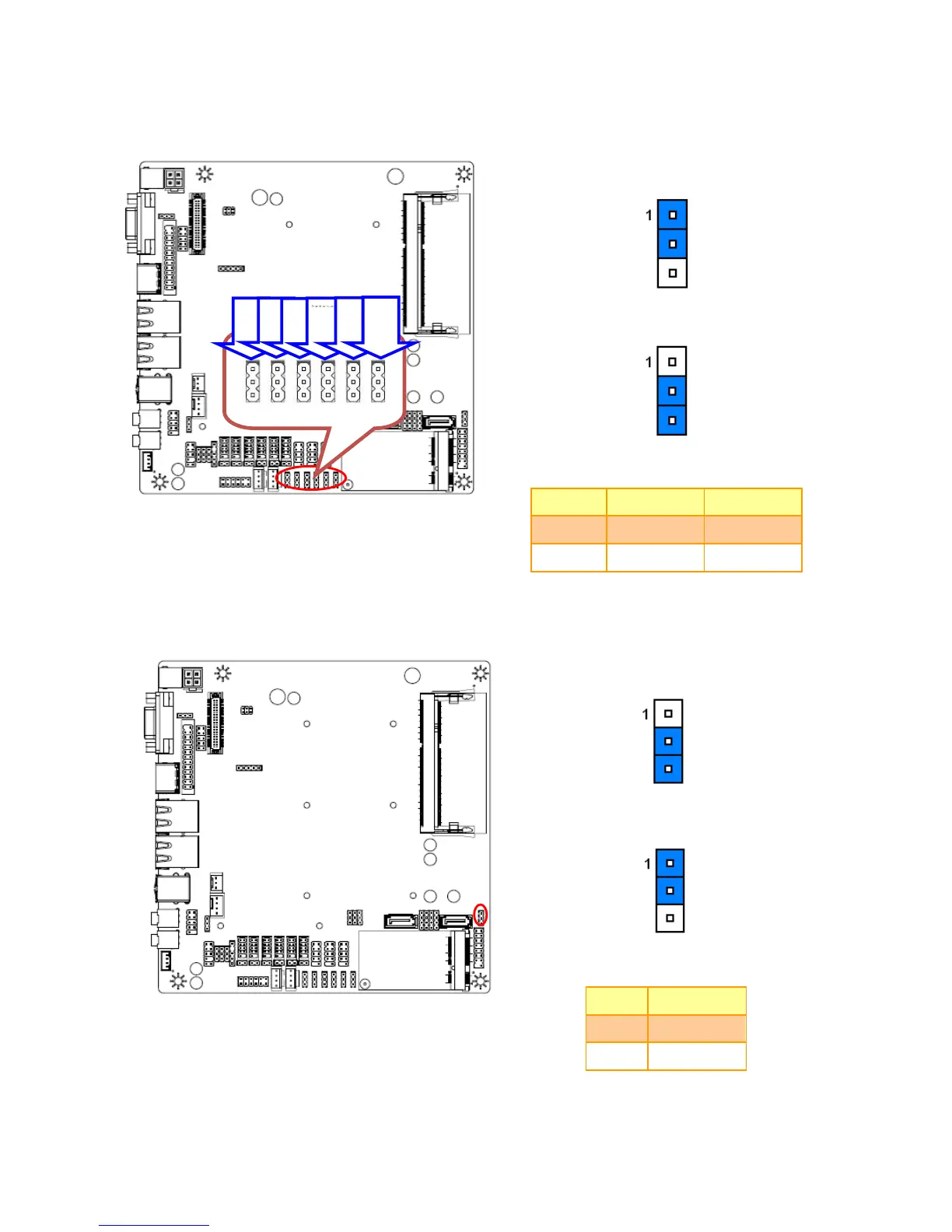

2.4.9 Jumper for Serial port 1~6 selection (JC1~6)
+5V
+12V
PIN
Define
Max current
1-2
+5V
1A
2-3
+12V
1A
2.4.10 Jumper for MSATA PWR selection (J_MSATA_P)
* Default
M_PCIE*
M_SATA
Pin
Define
1-2
M_SATA
2-3
M_PCIE
JC1
JC2
JC3
JC4
JC5
JC6
