Avalue Technology EMX-CDD - Front Panel Audio Connection Header (F_AUDIO1); Serial Port 1~6 Connector (JCOM1~6)

EMX-CDD User’s Manual
26 EMX-CDD User’s Manual

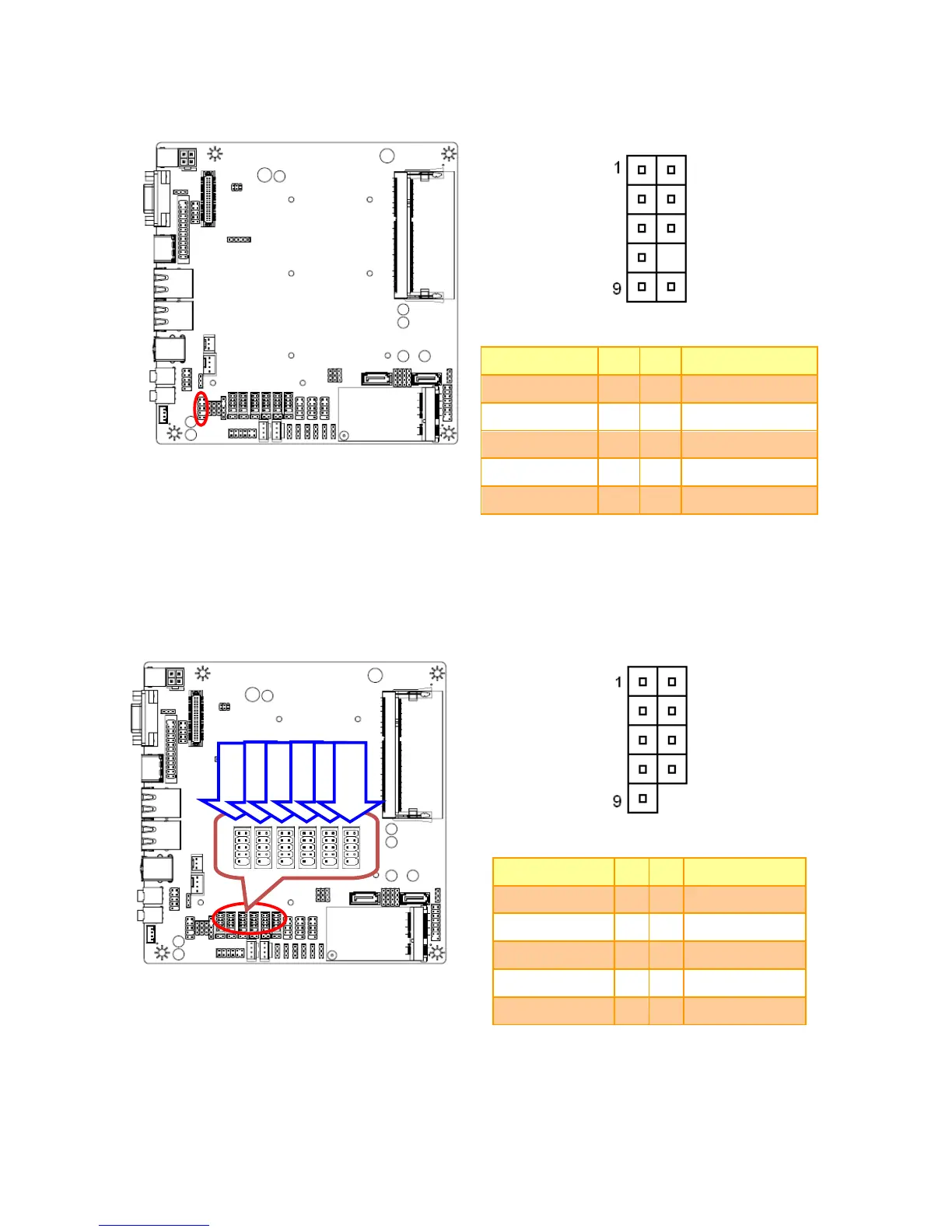

2.4.18 Front Panel Audio Connection Header (F_AUDIO1)
Signal
PIN
PIN
Signal
FROT1L
1
2
GND
PROT1R
3
4
PRESENCE#
PORT2R
5
6
SENSE1_RETURN
SENSE_SEND
7
PORT2L
9
10
SENSE2_RETURN
2.4.19 Serial port 1~6 connector (JCOM1~6)
Signal
PIN
PIN
Signal
DCD
1
2
RXD
TXD
3
4
DTR
GND
5
6
DSR
RTS
7
8
CTS
RI
9
JCOM1
JCOM2
JCOM3
JCOM4
JCOM5
JCOM6
