EMX-CDD User’s Manual
EMX-CDD User’s Manual 27

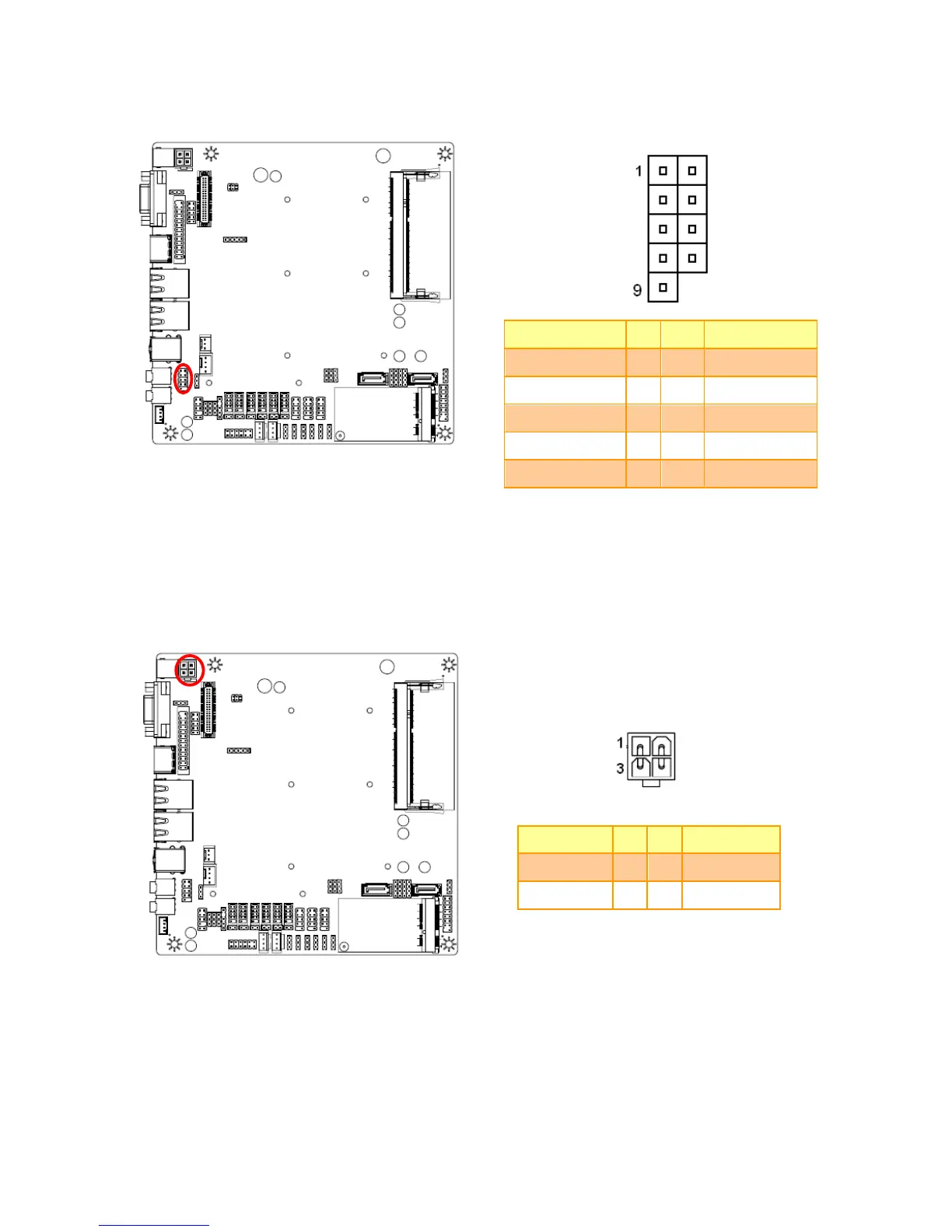

2.4.20 Keyboard & Mouse connector (KM1)
Signal
PIN
PIN
Signal
MDT
1
2
KB_DATA
MCK
3
4
KB_CLK
GND
5
6
GND
VCC
7
8
VCC
KEY
9
2.4.21 DC power-in connector (J14)
Signal
PIN
PIN
Signal
GND
1
2
GND
+12V
3
4
+12V
