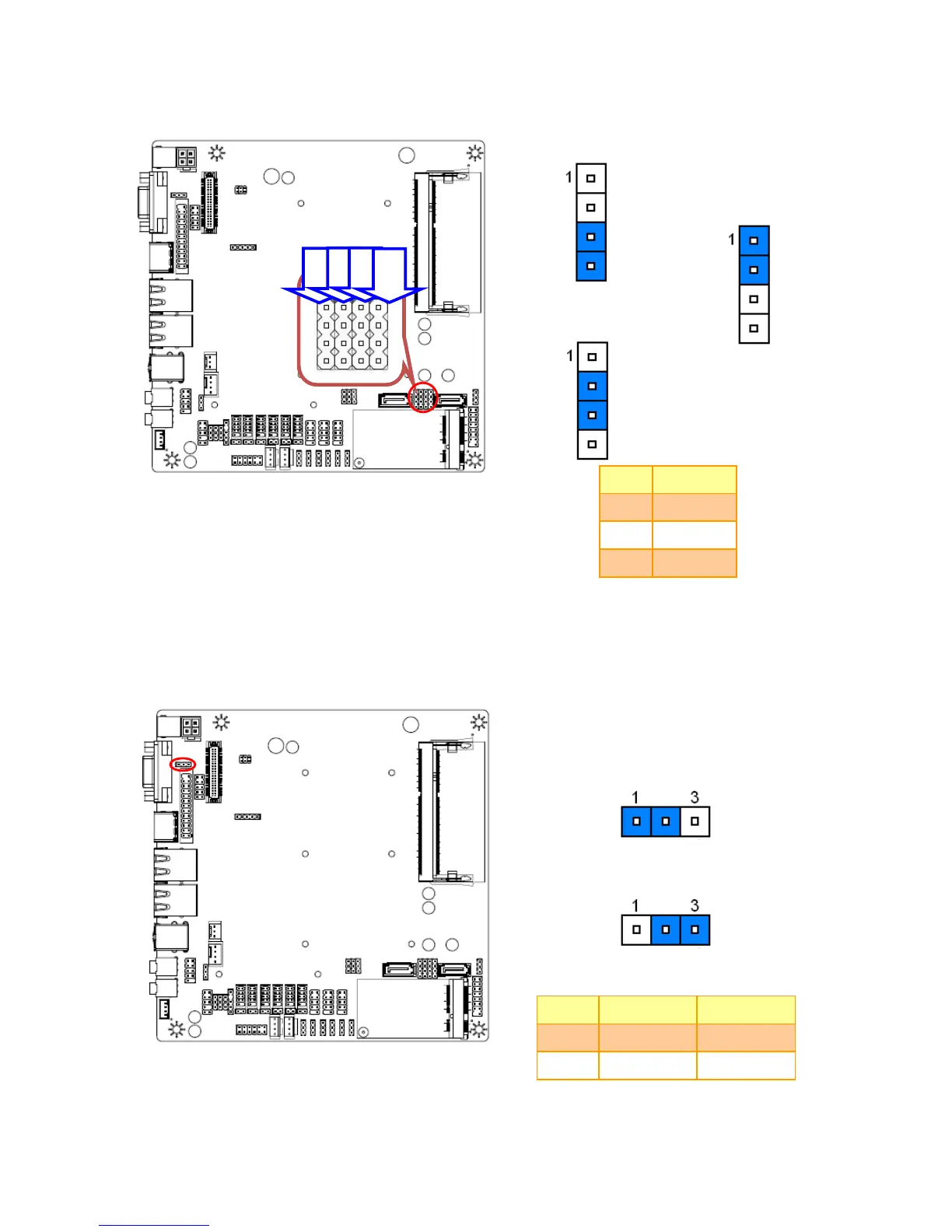

2.4.5 Jumper for MPCIE_WIFI_SATA (JP1~4)
* Default
Note: SATA 2 bond together with M-SATA, it can only
work either way at one time.
SATA2*
M-SATA
MINIPCIE
PIN
Define
1-2
MINIPCIE
2-3
M-SATA
3-4
SATA2
2.4.6 Jumper for LVDS power (LVDS_PWR1)
* Default
5V*
3.3V
Pin
Define
Max current
1-2
5V
1A
2-3
3.3V
1A
JP1
JP2
JP3
JP4
