EMX-CDD User’s Manual
52 EMX-CDD User’s Manual
Enabled
Correctable Error Enable/Disable.
PME SCI
Disabled
Enabled[Default]
PCI Express PME SCI Enable/Disable.
Hot Plug
Disabled[Default]
Enabled
PCI Express Hot Plug Enable/Disable.
Extra Bus Reserved
0-7
Extra Bus Reserved (0-7) for bridges behind
this Root Bridge.
Reserved Memory
1-20
Reserved Memory and Prefetchable Memory
(1-20MB) Range for this Root Bridge.
Reserved I/O
4-20
Reserved I/O (4K/8K/12K/16K/20K) Range for
this Bridge.

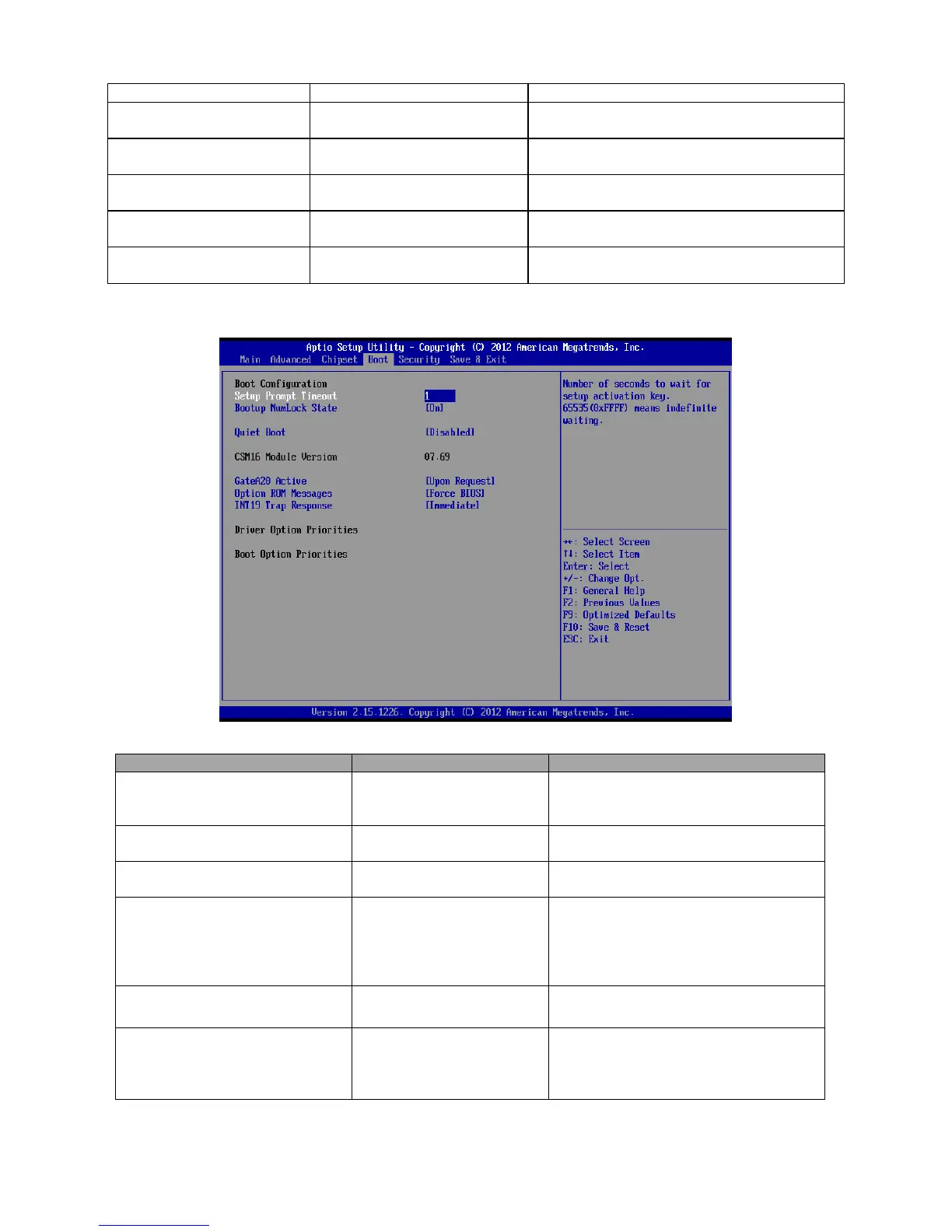

3.6.4 Boot settings
Item
Option
Description
Setup Prompt Timeout
1~65535
Number of seconds to wait for setup
activation key. 65535(0xFFFF) means
indefinite waiting.
Bootup NumLock State
On
Off[Default]
Select the keyboard NumLock state.
Quiet Boot
Disabled[Default]
Enabled
Enables or disables Quiet Boot option.
GateA20 Active
Upon Request[Default]
Always
UPON REQUEST – GA20 can be
disabled using BIOS services.
ALWAYS – do not allow disabling GA20;
this option is useful when any RT code
is executed above 1MB.
Option ROM Messages
Force BIOS[Default]
Keep Current
Set display mode for Option ROM.
INT19 Trap Response
Immediate
Postponed[Default]
BIOS reaction on INT19 trapping by
Option ROM: IMMEDIATE – execute
the trap right away; POSTPONED –
execute the trap during legacy boot.
