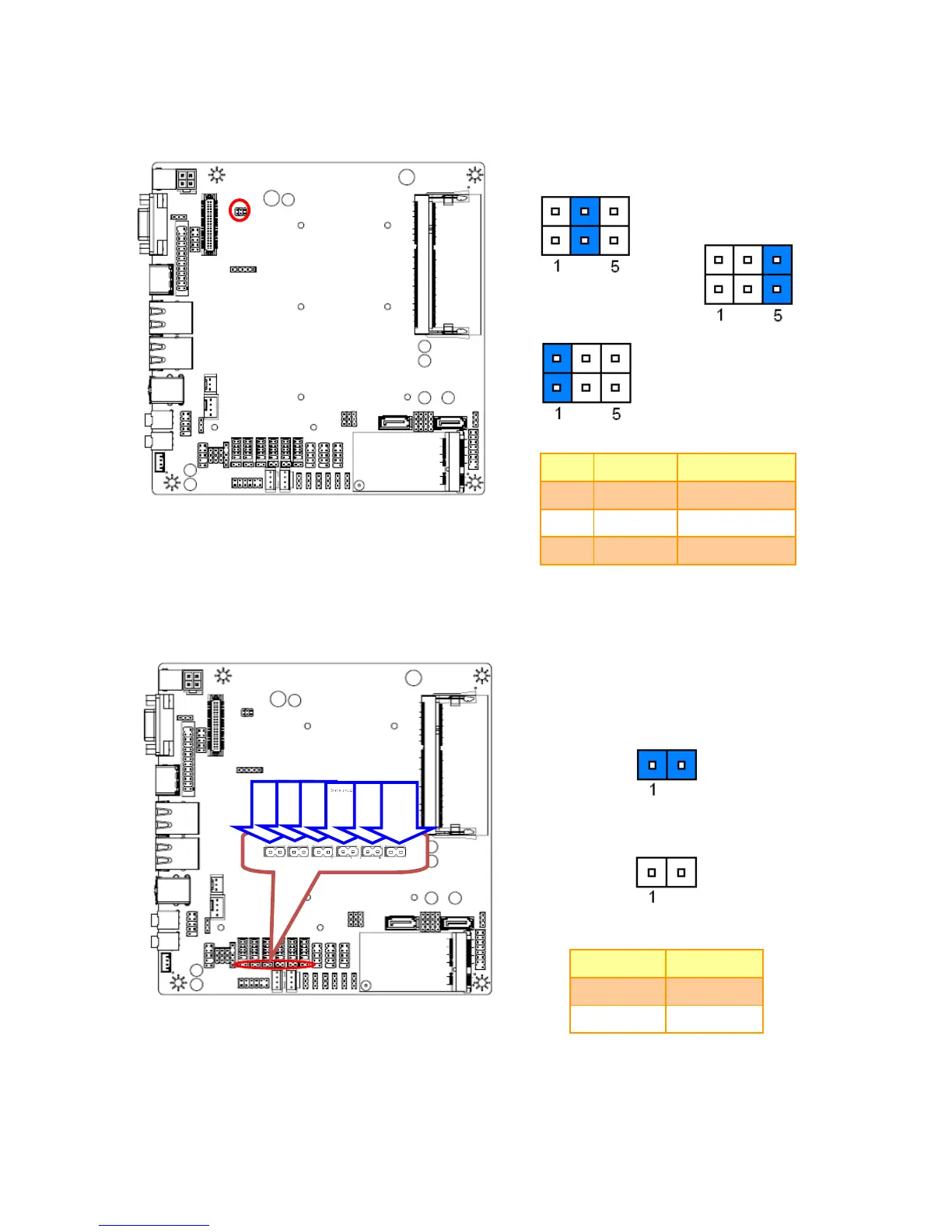

2.4.7 Jumper for inverter power (ADJ_PWR1)
* Default
5V*
5V
0
PIN
Define
Max current
1-2
5V
1A
3-4
5V
1A
5-6
0
1A
2.4.8 Serial port 1~6 – RI, USE JC1~6 PIN 9 selector (JC11~16)
* Default
RI*
USE JC1_JC6
PIN Option
Define
CLOSE
RI
OPEN
USE JC_JC6
JC11
JC12
JC13
JC14
JC15
JC16
