EMX-CDD User’s Manual
22 EMX-CDD User’s Manual

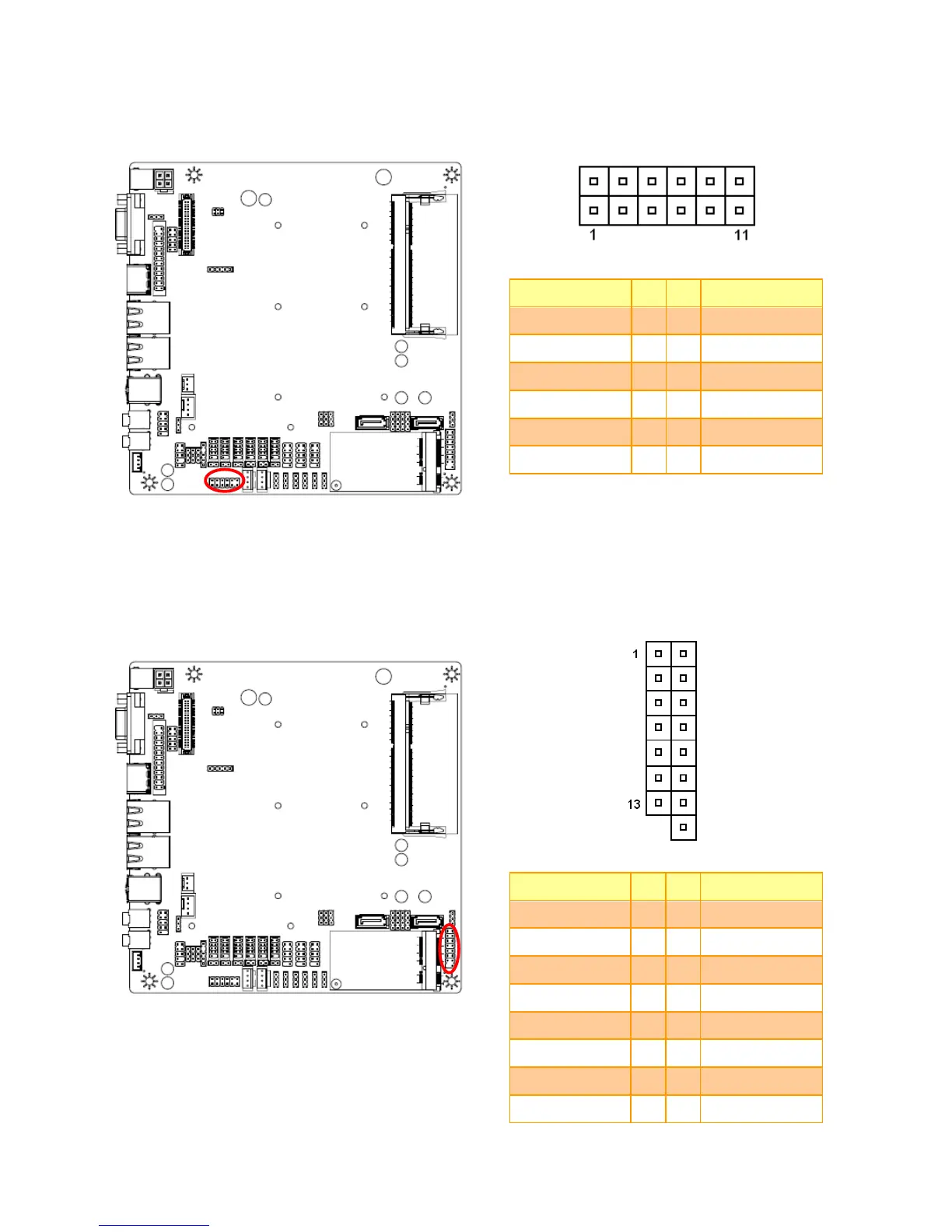

2.4.11 General Purpose I/O (GPIO)
Signal
PIN
PIN
Signal
+5V
1
2
+12V
GPIO
3
4
GPIO
GPIO
5
6
GPIO
GPIO
7
8
GPIO
GPIO
9
10
GPIO
GND
11
12
GND
2.4.12 Front Panel Switches (FPANEL1)
Signal
PIN
PIN
Signal
5VSB
1
2
+HD_LED
+P_LED
3
4
-HD_LED
-P_LED
5
6
PS_ON
+SPEAK
7
8
-PS_ON
NC
9
10
RESET
NC
11
12
-RESET
-SPEAK
13
14
+SLPLED
16
-SLPLED
