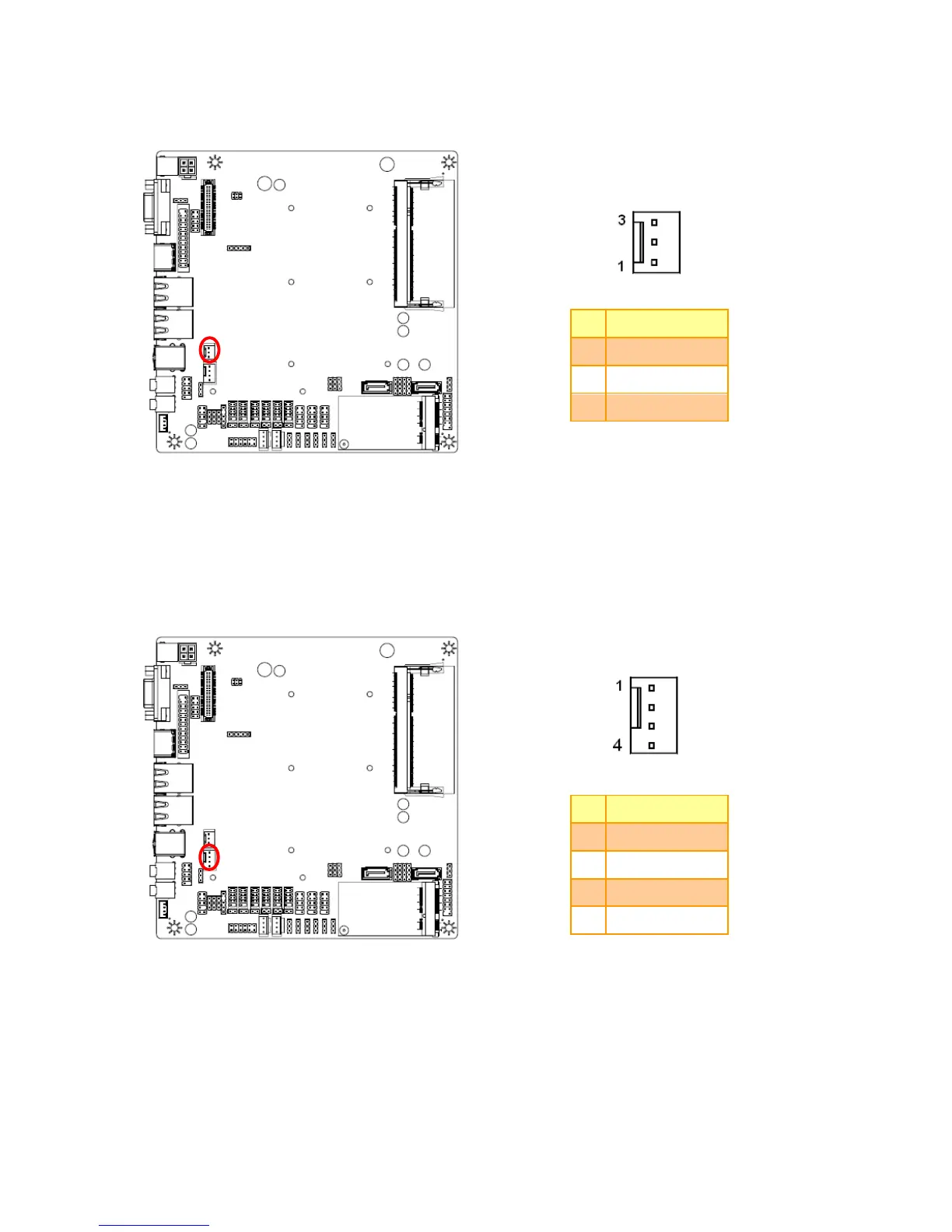

2.4.24 System Fan connector (SFAN1)
PIN
Signal
3
Ground
2
+12V
1
RPM
2.4.25 CPU Fan connector (CFAN1)
PIN
Signal
1
Ground
2
+12V
3
RPM
4
Control
