EMX-CDD User’s Manual
EMX-CDD User’s Manual 23

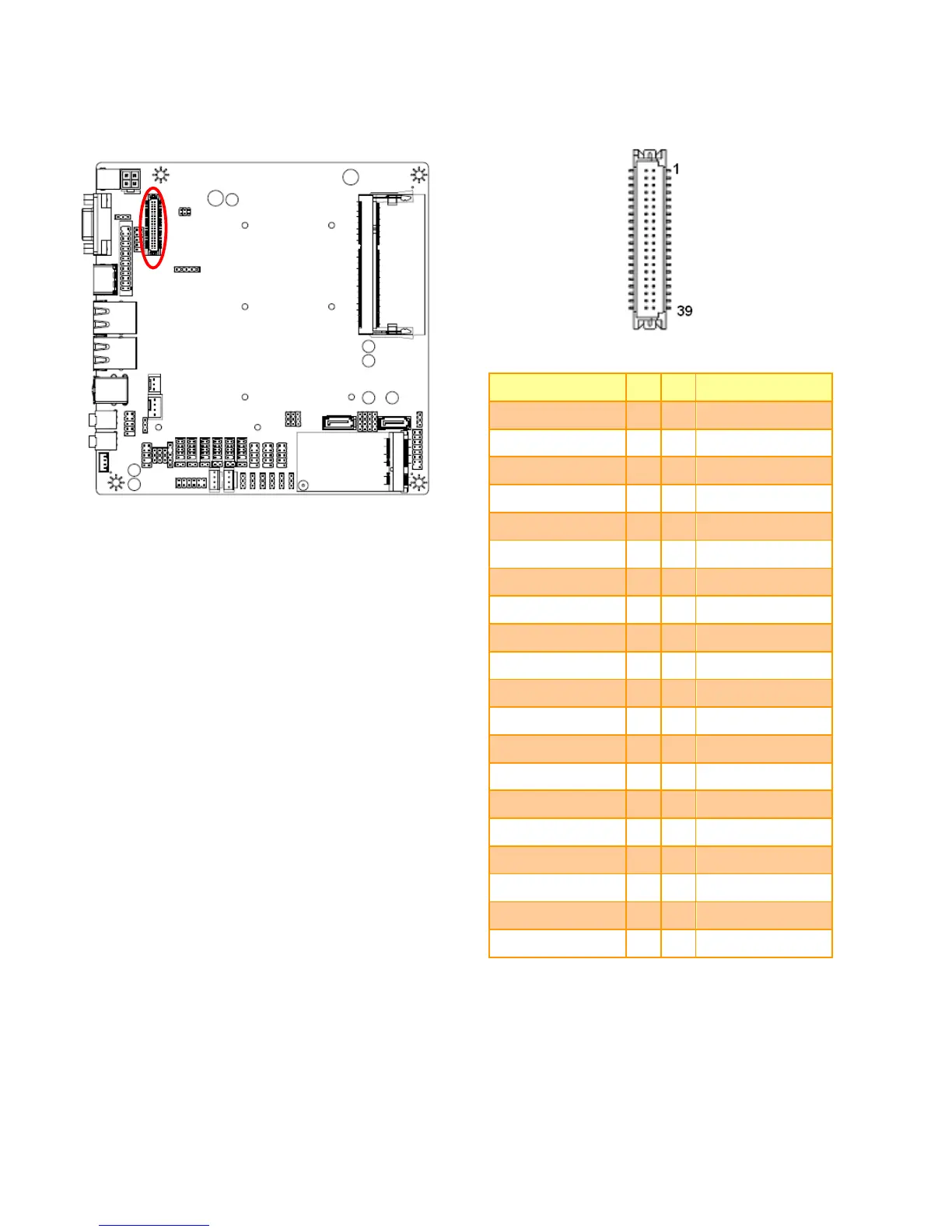

2.4.13 LVDS connector (JLVDS1)
Note: Mapping connector DF13-40DS-1.25C
(1.0mm).
Signal
PIN
PIN
Signal
VDDPAEA
2
1
VDDPAEA
GND
4
3
GND
VDDPAEA
6
5
VDDPAEA
NC
8
7
LVDS0_N0
NC
10
9
LVDS0_P0
GND
12
11
GND
NC
14
13
LVDS0_N1
NC
16
15
LVDS0_P1
GND
18
17
GND
NC
20
19
LVDS0_N2
NC
22
21
LVDS0_P2
GND
24
23
NC
NC
26
25
LVDS0_CLKN
NC
28
27
LVDS0_CLKP
GND
30
29
GND
LVDS_DDCPDATA
32
31
LVDS_DDCPCLK
GND
34
33
GND
NC
36
35
LVDS0_N3
NC
38
37
LVDS0_P3
LVDS_VCON
40
39
NC
