EMX-CDD User’s Manual
EMX-CDD User’s Manual 25

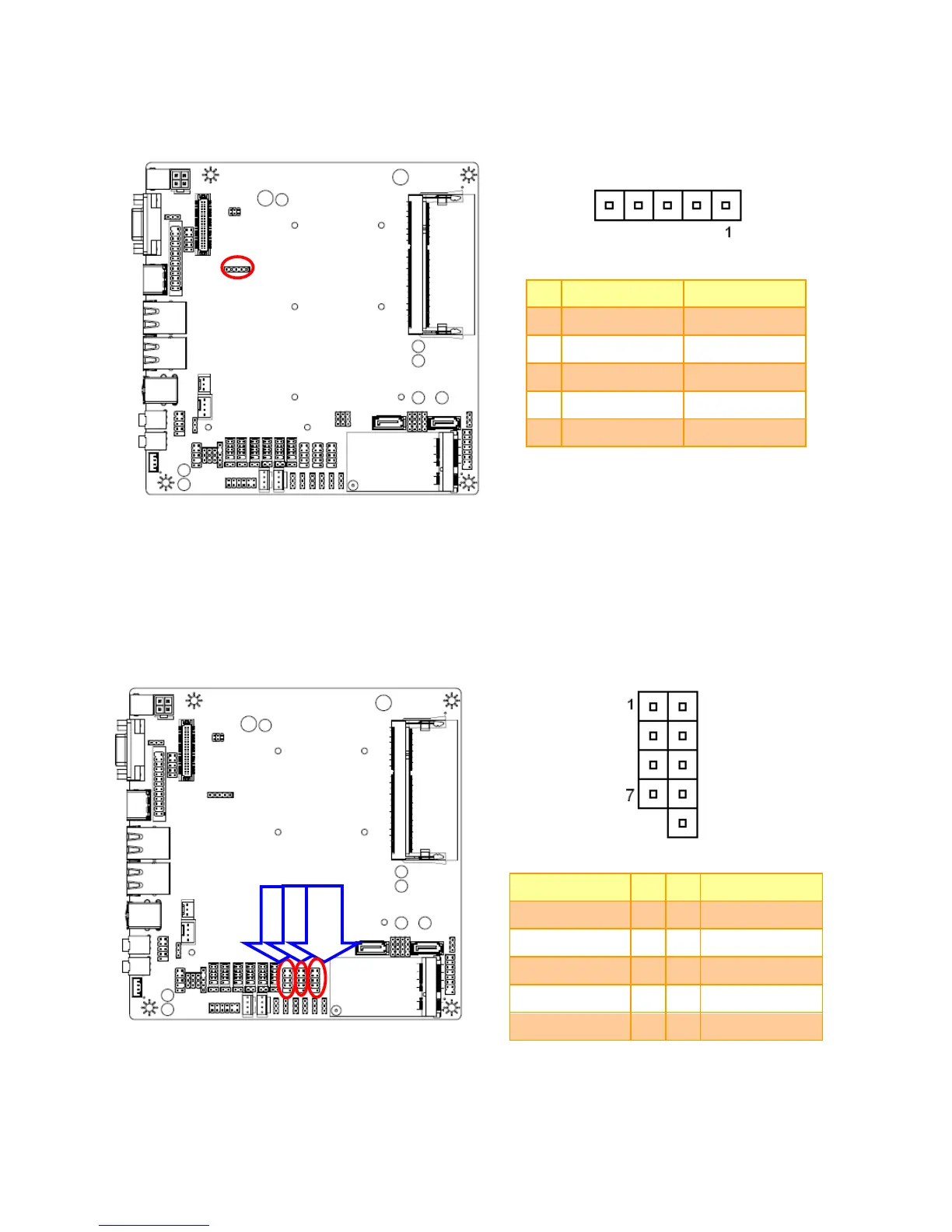

2.4.16 Inverter connector (JINVERT1)
PIN
Signal
Max current
1
12V
1A
2
GND
3
BLEN
4
PWM
5
5V
1A
2.4.17 USB Connector 1~3 - USB2.0 (FUSB1~3)
Signal
PIN
PIN
Signal
VCC
1
2
VCC
DATA-
3
4
DATA-
DATA+
5
6
DATA+
GND
7
8
GND
10
GND
FUSB3
FUSB1
FUSB2
