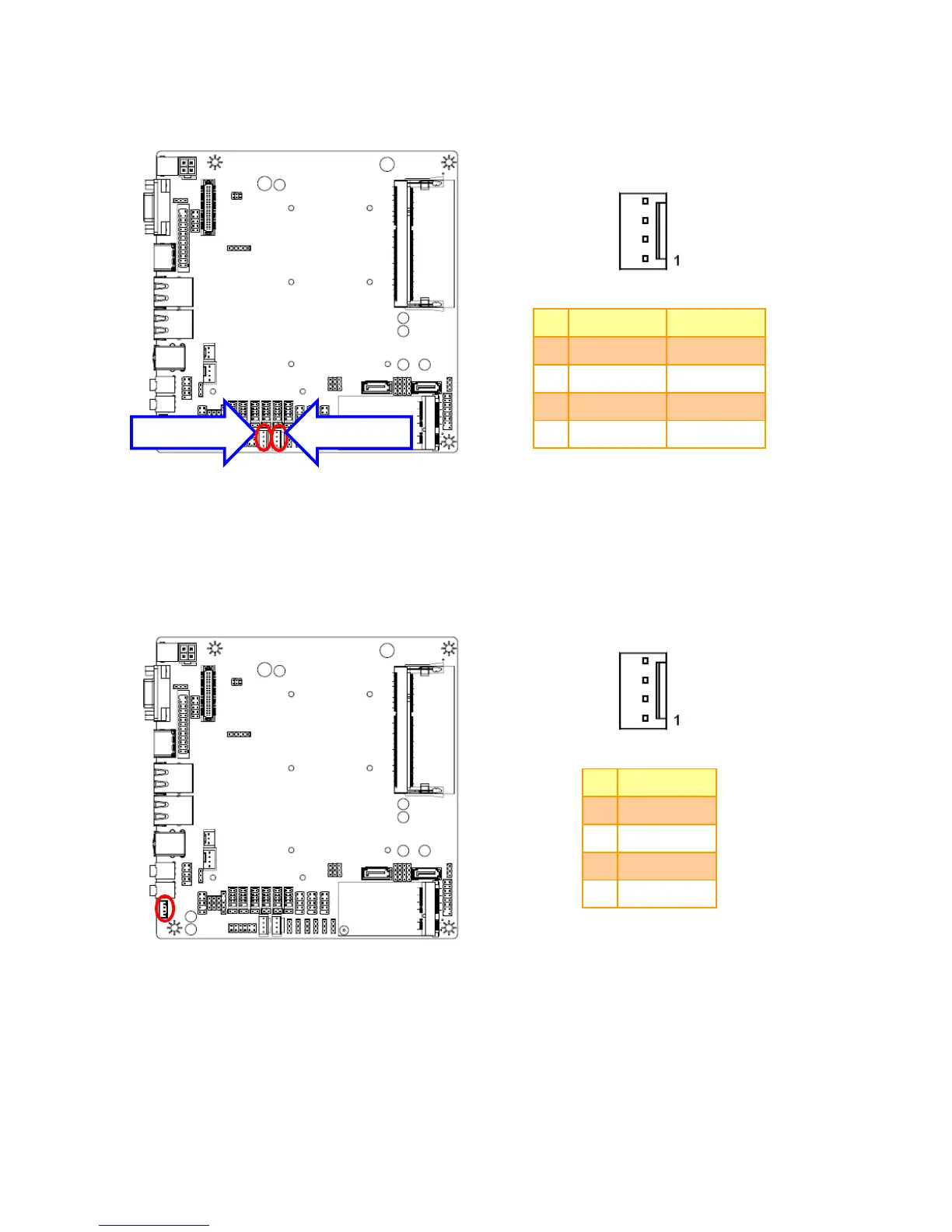

2.4.22 SATA Power connector 1~2 (SATA1~2_PWR)
PIN
Signal
Max current
4
5V
1A
3
GND
2
GND
1
12V
1A
2.4.23 Speaker Headers (JSPK)
PIN
Signal
4
INTSPR-
3
INTSPR+
2
INTSPL-
1
INTSPL+
Note: Support 3W X 2 speaker.
Mapping Connector PHR-4
SATA1_PWR
P
SATA2_PWR
P
