2.4 Setting Jumpers & Connectors

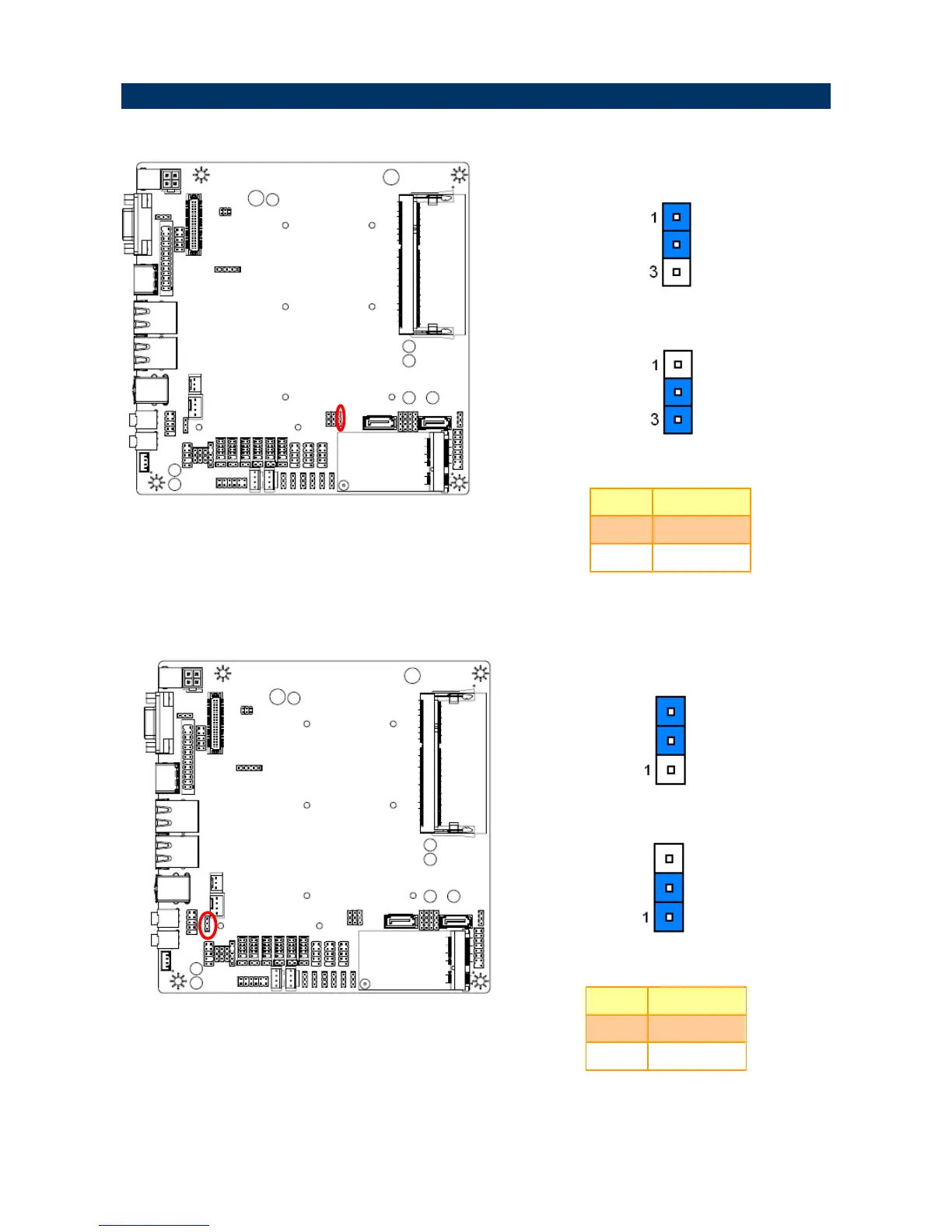

2.4.1 Clear CMOS (JBAT1)
* Default
Normal*
Clear CMOS
Pin
Define
1-2
Normal
2-3
Clear CMOS
2.4.2 Keyboard power select jumper (JKB1)
* Default
Disabled*
Enabled
Pin
Define
1-2
Disabled
2-3
Enabled
