 At Transponder, select the transpond-
er for which signal strength and signal
quality should be displayed at the low-
er window edge by using the keys
/ and / (or select Tran-
sponder, press OK, select the desired
transponder from the list und confirm
by pressing OK).

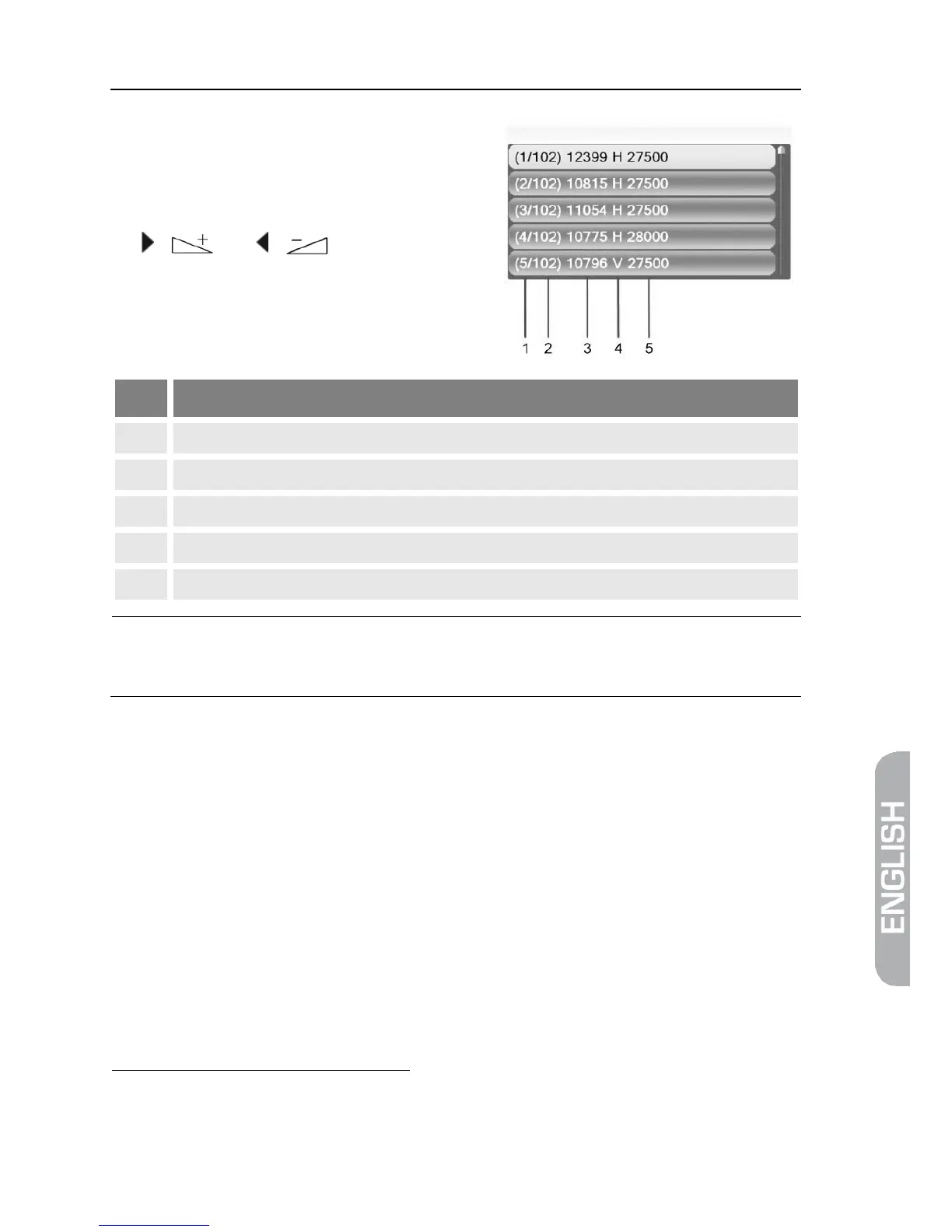

No. Meaning
1
Sequential number of selected transponder
2
Total number of receivable transponders
3
Frequency (MHz)
4
Polarization, H = horizontal, V = vertical
5
Symbol rate (MS/s)

Orientation of your antenna is optimal with maximum sig-
nal strength.
 When using a multi-feed antenna, select the port for the respectively select-
ed satellite at DiSEqC
26
1.0
27
.
 If you want to receive signals from more than four satellites, select the port
for the respectively selected satellite at DiSEqC1.1
28
. This is set to Disable by
default.
 Select the menu item 22K to permanently switch on or off the 22 kHz control
voltage for high-low band switching (this is required e.g. for certain antenna
systems or to avoid disturbances). In most cases, Auto is to be selected (facto-
ry setting).
 At Polarity, select the correct value for the selected channel. Possible set-
tings are H (horizontal), V (vertical) and Auto. Factory setting is made to Auto.
26
DiSEqC = Digital Satellite Equipment Control, a digital control signal technology with satellite
receiving systems
27
DiSEqC1.0 supports four satellite positions
28
DiSEqC1.1 supports 16 satellite positions
