AVANIT SXHD 129

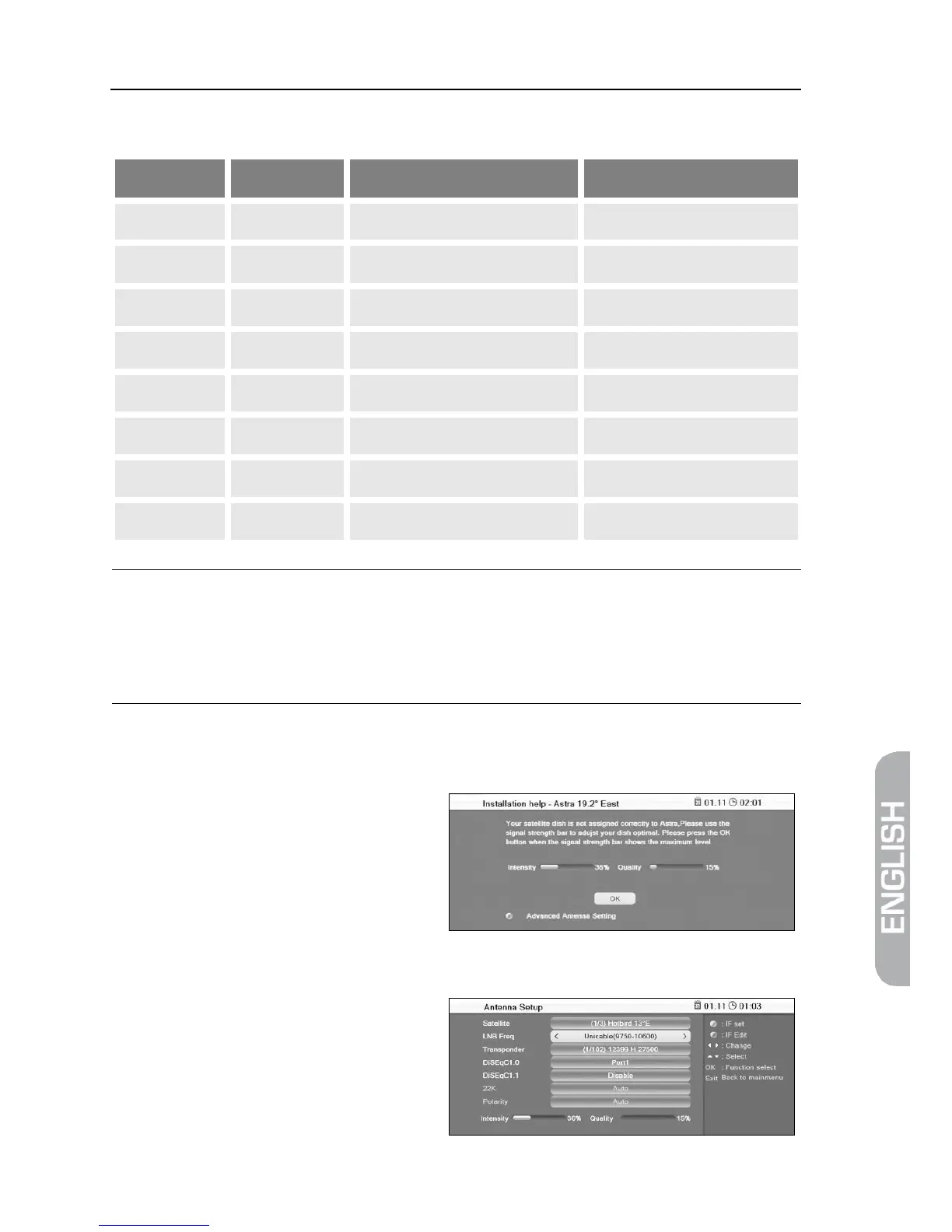

7.2 Allocation of IF Channels and Frequencies
Receiver IF channel Exemp. frequency (MHz) Frequency (MHz)
Receiver 1 1 1284
Receiver 2 2 1400
Receiver 3 3 1516
Receiver 4 4 1632
Receiver 5 5 1748
Receiver 6 6 1864
Receiver 7 7 1980
Receiver 8 8 2096
Enter the frequencies of your receiving system into the last
column of the table so that all relevant information is quick-
ly available. Rule of thumb: highest frequency shortest
cable path.
7.3 Installation
If the receiver is connected to a uni-
cable system, then RAPS installation
will automatically cancel. The win-
dow to the right will open.
1. Press the red function key
(SHIFT) to open the submenu
Antenna Setup.
2. Select the menu item LNB Freq
to set Unicable(9750-10600).
3. Press the green function key to
open the window Antenna Set-
up Unicable Setting.
