In both rows of the menu bar, arrows can appear on the left and right sides when the number
of open tabs exceeds the available space. You can use the arrows to scroll to a tab, or you
can select the tab from the navigation tree.
To reduce the number of open tabs, click the X button on the top right of a tab to close it.
Tool bar
The tool bar, located below the menu bar, contains buttons that provide quick access to
commonly used operational commands. Depending on the tab selected, different buttons can
appear.

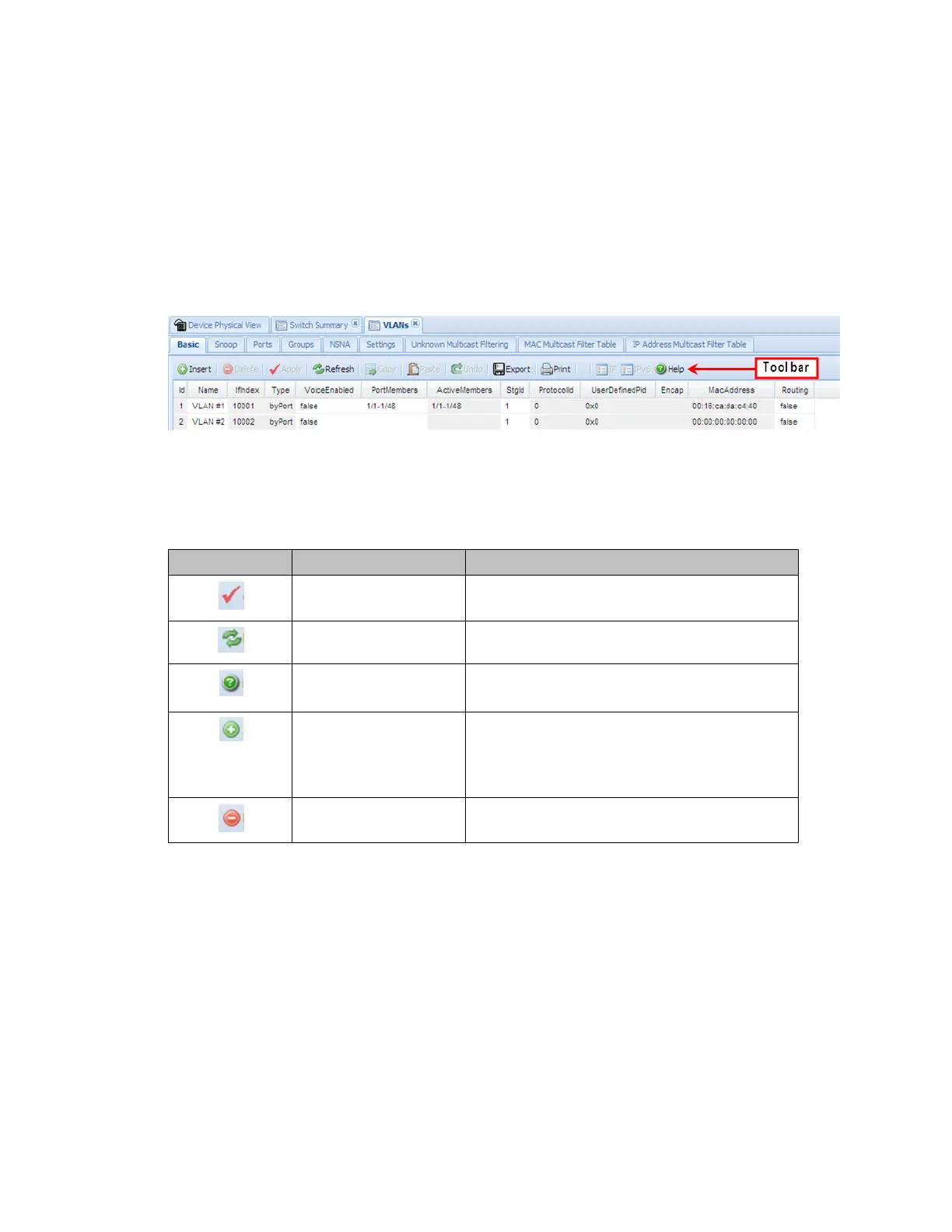

Figure 5: Tool bar
The following table describes common tool bar buttons.
Table 2: Common tool bar buttons
Button Name Description
Apply Executes parameter changes.
Refresh Refreshes screen data.
Help Displays context-sensitive online help for the
current dialog box.
Insert Opens an insert dialog box.
Submits the entry from the insert dialog box.
The insert buttons appear only on panes where
you can insert entries.
Delete Removes a selected entry.
Work area
The work area, on the right side of the EDM page, displays the switch Device Physical View
and dialog boxes related to the menu selections in the navigation tree. You can use the work
area to view and configure switch parameters from the dialog boxes that appear in the work
area.
See the following figure for an example of the work area for the Edit > File System > Config/
Image/Diag file dialog.
