Avery Dennison ST9500 - Replacing the Feed Wheel

36

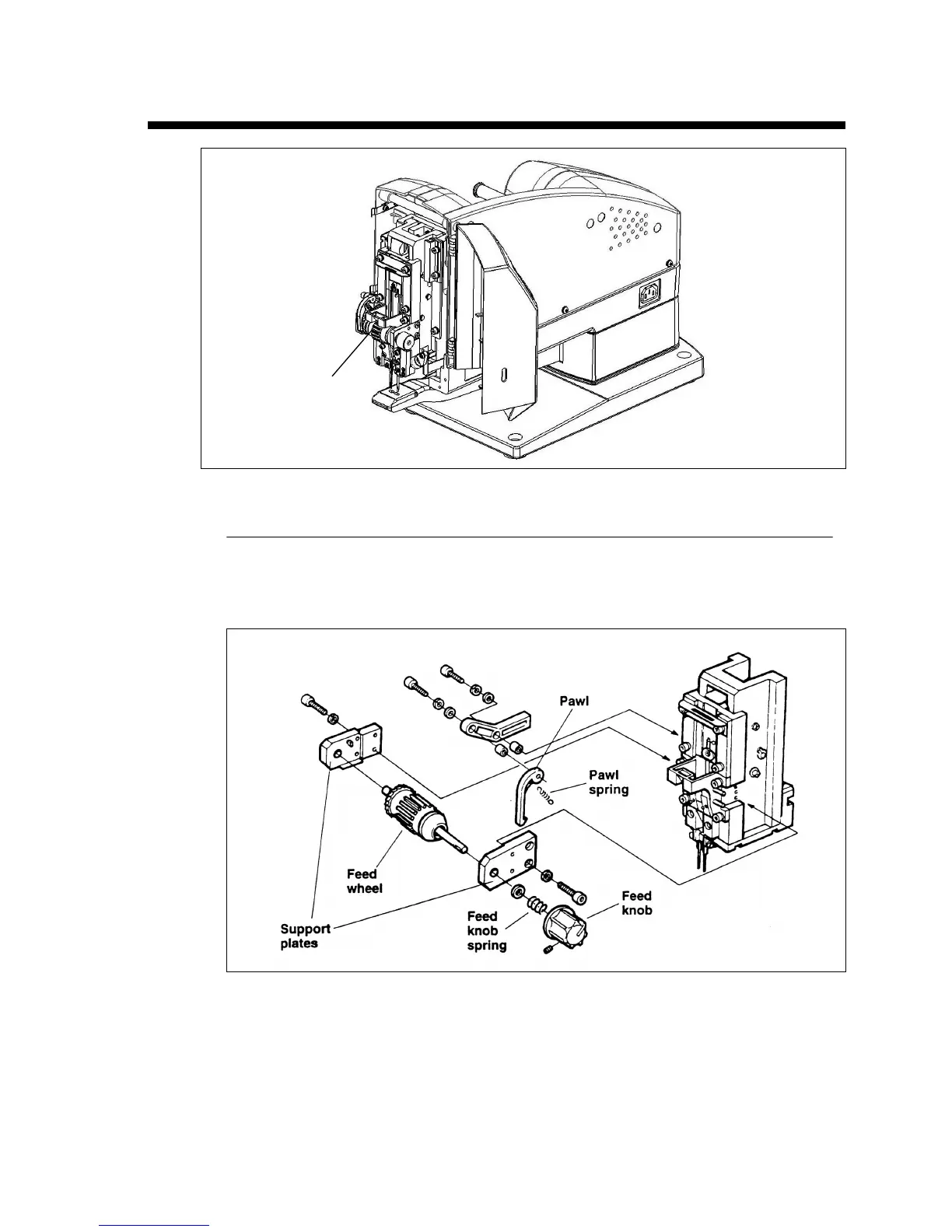

Replacing the Feed Wheel
Disassembly
1. Unplug the unit.
2. Disconnect the pawl spring.
3. Remove the two screws holding the left support plate and then remove the plate.
4. Remove the two screws holding the right support plate and then remove the plate.
5. Loosen the setscrew on the feed knob and then remove the knob and spring.
6.
Remove the right support plate from the feed wheel shaft.
Feed Wheel Assy.
