Avery Dennison ST9500 - Replacing the Motor, Coupling, and Crank Arm Assembly

46
Replacing the Motor, Coupling, and Crank Arm Assembly
Disassembly
1. Unplug the unit.
2. Remove the reel support and the enclosure.
3. Unplug the motor, interlock switch, solenoid, and light connectors from the circuit
board.
4. Remove the ground wire from the motor housing
5. Remove the four bolts from the bottom of the frame that secure the mount.
6. Remove the Motor, Coupling and Crank as one assembly.
7. Remove the four bolts holding the motor to mount.
8.
Remove the motor, clutch, and crank arm from the mount. (If necessary, gently tap
the collar from inside the mount to release it.)

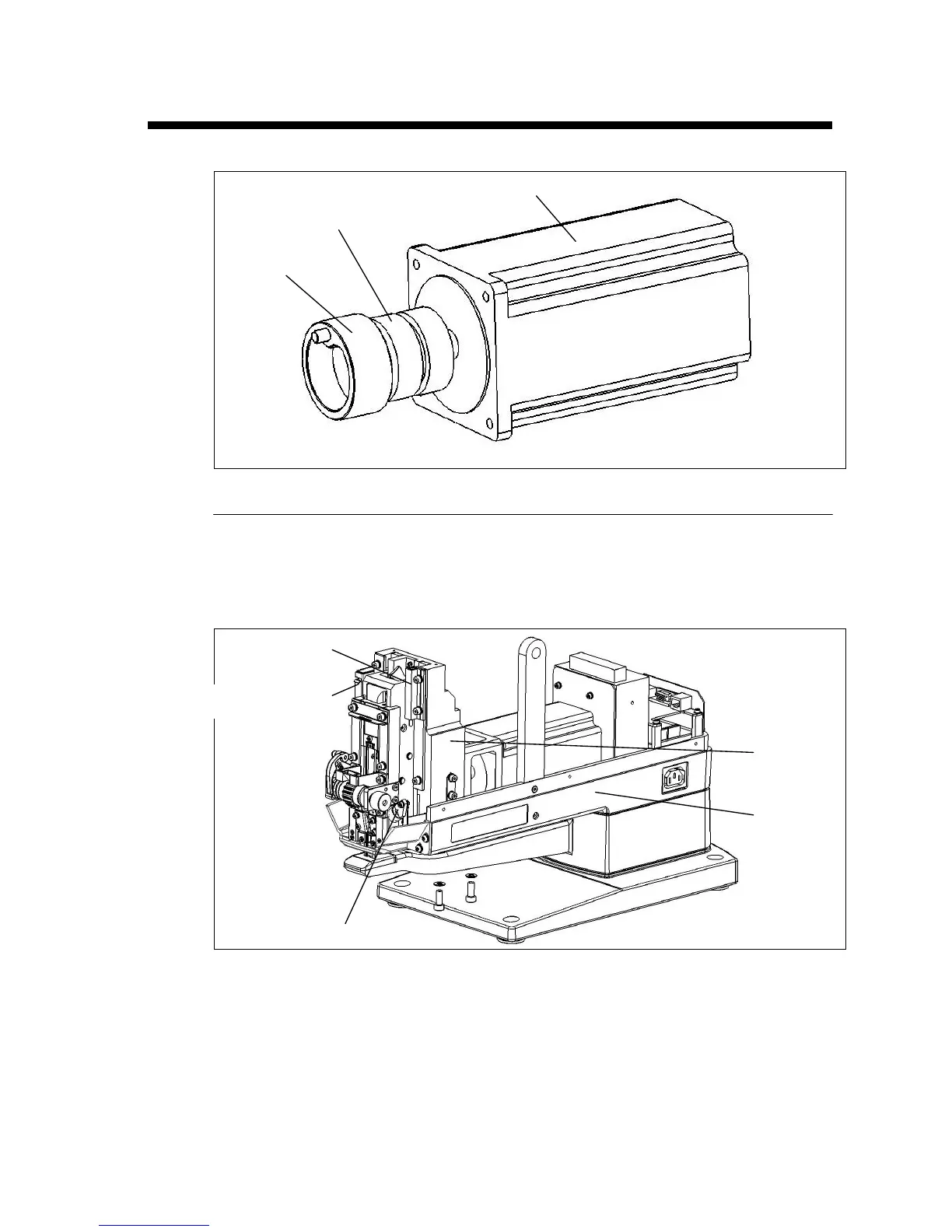

Motor
Coupling
Crank
Interlock Switch
Sensor Assy.
Mount
Base
