Avery Dennison ST9500 - Removing the Head Assembly

38
Removing the Head Assembly
Disassembly
1. Unplug the unit.
2. Remove the reel support and the enclosure.
3. Remove the screw on the Feed Stop, and remove the Feed Stop.
4. Remove the screw on the Sensor assembly and remove the Sensor assembly.
5. Remove the two screws on each Slide Plate and then remove the Slide Plates.
6. Remove the Head Assembly.

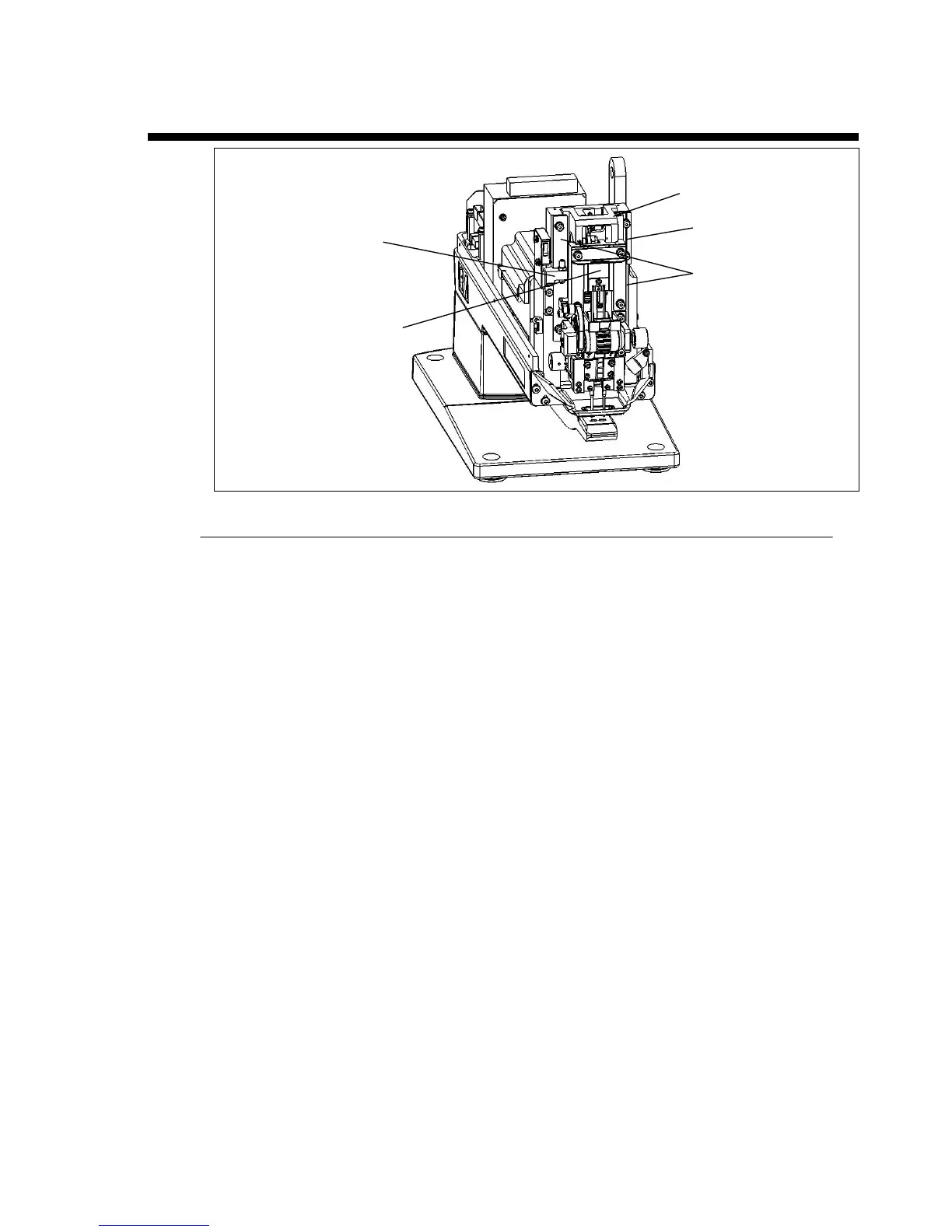

Head Assembly
Sensor Assembly
Slide Plate
Feed Stop
Ejector Slide
