Assembly
1. Place the crank bushing in the middle of the horizontal track on the back of the head.
2. Rotate the crank arm so the drive pin is at top dead center.
3. Orient the ejector slide to make the top of the slide flush with the top of the slide’s guide
track.
4. Replace the head while making sure the crank arm drive pin is in the hole of the crank
bushing.
5. Replace the two slide plates.
6. Replace and adjust the sensor assembly.
1) Loosen 2 screws holding sensor.
2) Raise sensor to top most position.
3) Turn machine to “CONTINOUS” mode and 0.2s speed.
4) Operate machine so cycles.
* If cycling is smooth, tighten screws.
* If cycle is fast, then slow loosen screws, move sensor down 0.5 mm, and retighten
screws.
* Continue moving sensor down until cycle is smooth.
7. Replace the Feed Stop and tighten the screws.

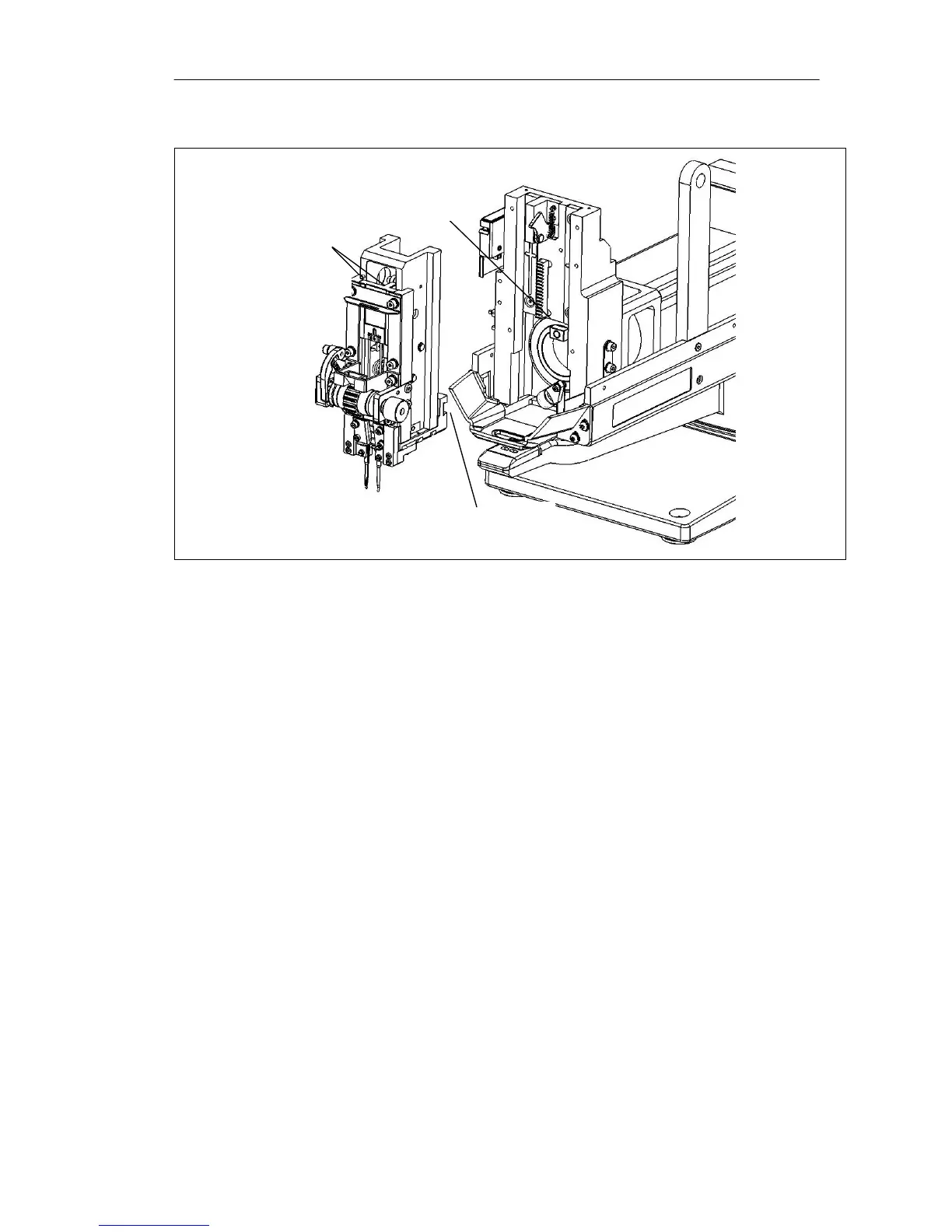

Crank Arm
Slot in Knife Block
should align well
