Avery Dennison ST9500 - Removing the Ejector Slide

40

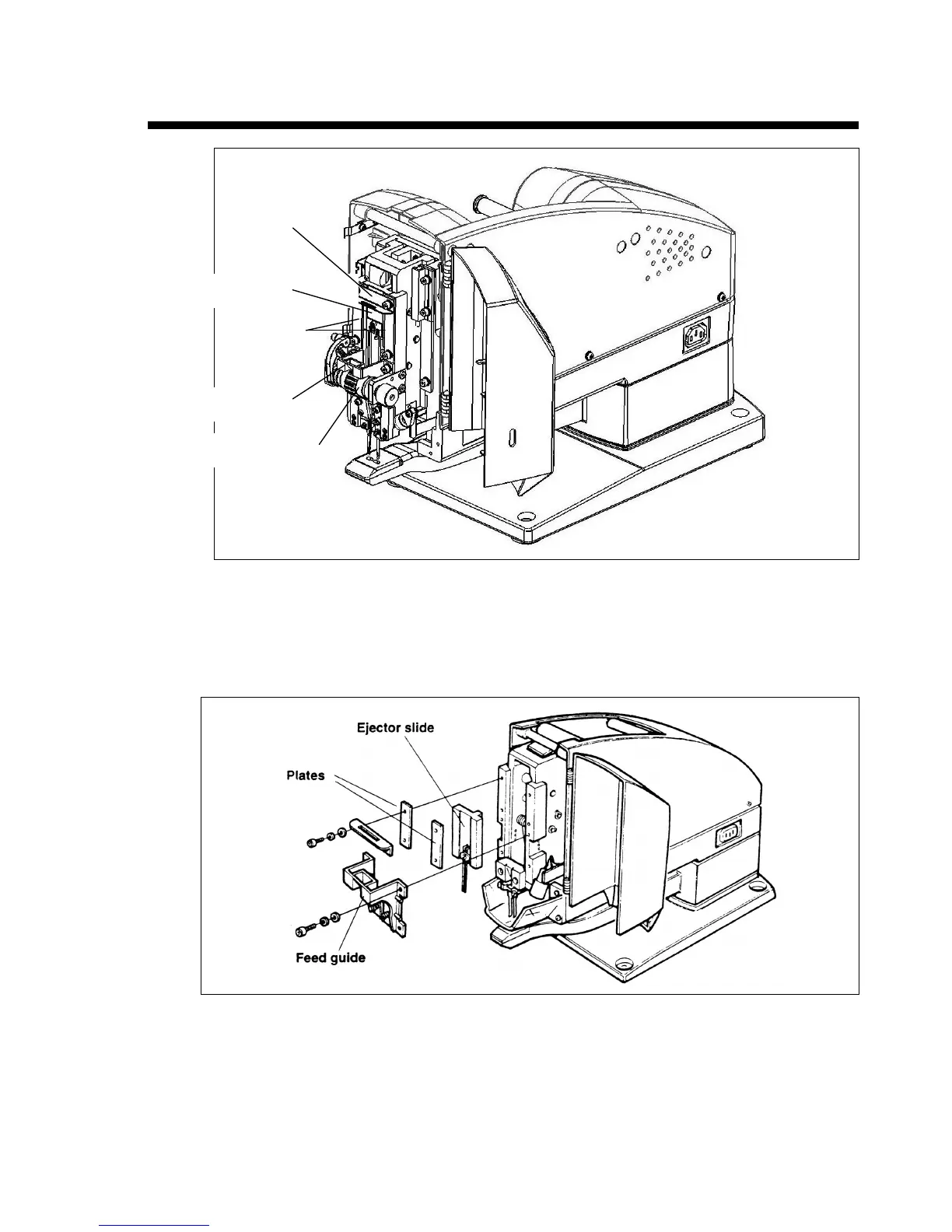

Removing the Ejector Slide
1. Unplug the unit.
2. With head and EJ slide in top position.
3. Remove the feed wheel assembly (see page 33).
4. Remove the four screws holding the feed guide and then remove the feed guide.
5. Remove the four screws from the two screw plates while holding the ejector slide.
Remove the plates and the ejector slide.
Feed Wheel Assy.
Guide Bar
Slide Plate
Ejector Slide
Staple Guide
